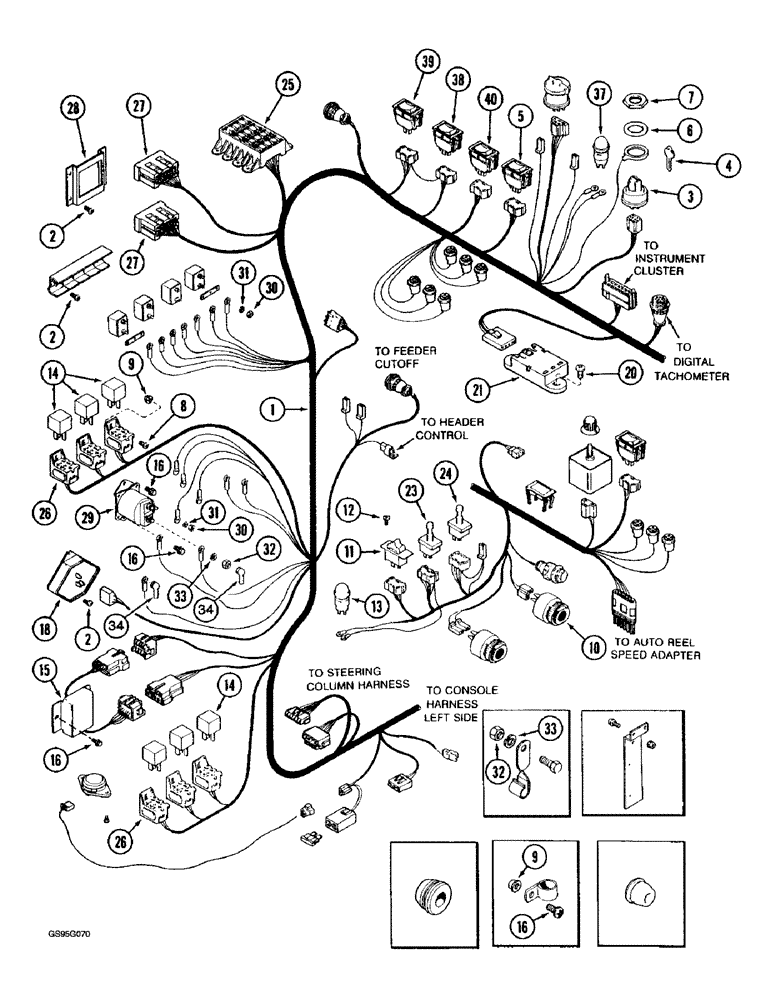

Запчасти Case IH 1670 (4-06) - CONSOLE HARNESS, RIGHT HAND SIDE (06) - ELECTRICAL

1

1345237C1

HARNESS

- console

1шт.

2

276-2458

SCREW - self-tapping hex head, No. 10-24 x 1/2 inch (Replaces screw 22844R1)

8шт.

1252476C1

SWITCH

ASSEMBLY - ignition, includes key, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

4

131313C1

KEY, IGNITION

KEY - ignition

1шт.

5

245219C1

SWITCH

- rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, special, lock, internal tooth

1шт.

7

365502R1

NUT

- flat hex, special, mounting

1шт.

8

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

3шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

10

1546441C1

BUZZER

ALARM - audible (Replaces alarm 245854C1)

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

13

453453C1

SWITCH

- push button, feeder reverser

1шт.

14

1983394C2

RELAY

- lamps, valve solenoid, unloader, and oil pressure (Replaces relay 1-7877)

6шт.

15

187609C2

RECTIFIER

- diode

1шт.

16

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

6шт.

18

245835C1

SUPPRESSOR

- central load dump

1шт.

19

A14553

BULB

LAMP - bulb, No. 57

9шт.

20

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

2шт.

21

A162294

CONNECTOR, ELEC

MODULE - low coolant (Replaces module 121770C2)

1шт.

23

1964919C1

IGNITION SWITCH

SWITCH - feeder, with inhibitor

1шт.

24

245632C1

SWITCH

- separator clutch

1шт.

25

1345237C1

HARNESS

BLOCK - fuse

1шт.

26

1964954C3

HARNESS

SOCKET - relay

6шт.

27

1964954C3

HARNESS

MODULE - feedback

2шт.

28

1964954C3

HARNESS

BRACKET - module mounting

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH - magnetic, cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable

2шт.

37

453453C1

SWITCH

- push button, ether start

1шт.

38

245012C1

SWITCH

- rocker, 4 wheel drive

1шт.

39

245012C1

SWITCH

- rocker, variable propulsion

1шт.

40

245219C1

SWITCH

- rocker, fan speed

1шт.
