Запчасти Case IH 1670 (4-02) - ENGINE HARNESS (06) - ELECTRICAL

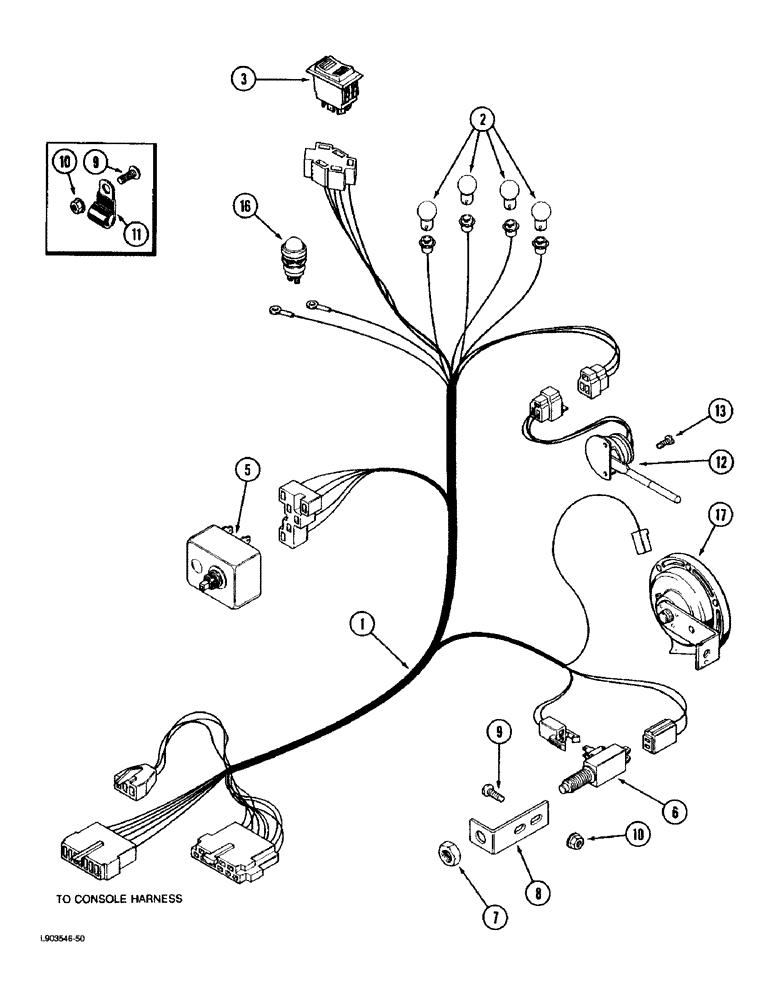

Схема запчастей Case IH 1670 - (4-02) - ENGINE HARNESS (06) - ELECTRICAL
9
6
3
13
7
17
11
10
10
16
8
9
5
12
2
1

Артикул

Название

Примечание

Количество

1

1983384C1

HARNESS

HARNESS - engine

1шт.

2

363660R1

CLIP

CLAMP - engine harness

1шт.

3

362123R1

CLIP

CLAMP - engine harness

4шт.

4

399470R1

BOOT

BOOT - cable

3шт.

5

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

6

121756C2

SENSOR

SENSOR - coolant temperature

1шт.

7

130861C1

SWITCH

SWITCH - coolant, high temperature

1шт.

8

121842C91

SOLENOID SWITCH

SOLENOID ASSEMBLY - ether injection, no longer available, order solenoid assembly 185552A2, parts list figure 2-22

1шт.

8

185552A2

SOLENOID

SOLENOID ASSEMBLY - ether injection, parts list Figure 2-23A

1шт.

9

91448C2

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, parts list figure 4-60

1шт.

9

91448C2GV

ALTERNATOR

Value

1шт.

10

1341330C2

TRANSMITTER

SWITCH - sender, oil pressure (Replaces switch 1341330C1)

1шт.

11

1964960C1

PRESSURE SWITCH

SWITCH - oil pressure and hydraulic lock

1шт.

12

A145513

SENSOR

SENSOR - probe, coolant level

1шт.

14

142341A1

PACKAGE

KIT - magnetic relay solenoid and cover, ignition

1шт.

15

225-14210

NUT,#10-32

NUT, #10-32

2шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

22

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list figure 4-62

1шт.

22

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

22

AC187728

CORE-STARTER

Return Part Number

1шт.

22

A187728GV

STARTER MOTOR

Value

1шт.

23

1977185C1

HARNESS

HARNESS - alternator

1шт.

24

1977135C1

HARNESS

HARNESS - alternator output

1шт.

25

221-604

REDUCER,Hex, 1" x 3/4" NPT

REDUCER - pipe, 1 male x 3/4 inch female

1шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

27

225-14210

NUT,#10-32

NUT, #10-32

1шт.

Выбрано товаров: 29
