Запчасти Case IH 1670 (5-20) - GUIDE WHEEL DRIVE, (CONT) (04) - STEERING

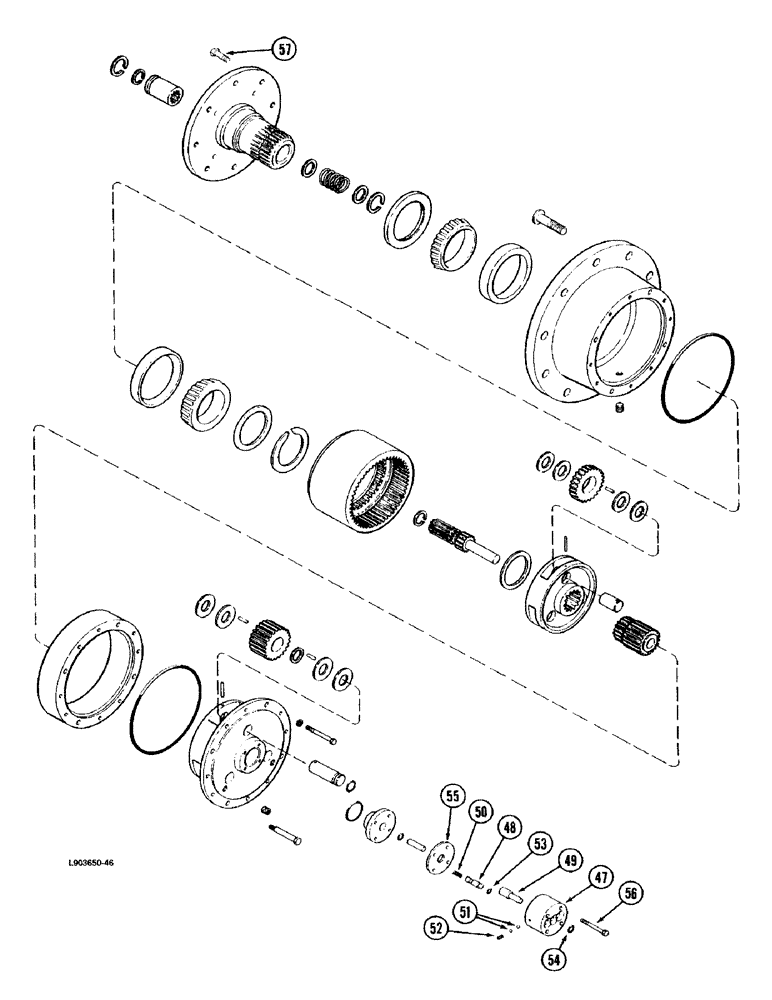

Схема запчастей Case IH 1670 - (5-20) - GUIDE WHEEL DRIVE, (CONT) (04) - STEERING
47
48
54
53
52
56
57
55
50
49
51

Артикул

Название

Примечание

Количество

1347481C1

DISC

HUB ASSEMBLY - quick disconnect, continued from 5-18, Includes: Ref. 47 - 56

2шт.

47

1347482C1

HUB ASSY.

BODY - hub lock-out

1шт.

48

1347483C1

SPOOL

- lock-out engaging

2шт.

49

1347484C1

SPOOL

- lock-out disengaging

1шт.

50

1347485C1

SPRING

- quick disconnect

2шт.

51

1347486C1

BALL

- detent

2шт.

52

446623

SCREW

- cup point

1шт.

53

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

2шт.

54

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

55

1347487C1

GASKET

-, Serial Range: lock-out-hub

1шт.

56

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

4шт.

57

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

8шт.

Выбрано товаров: 12
