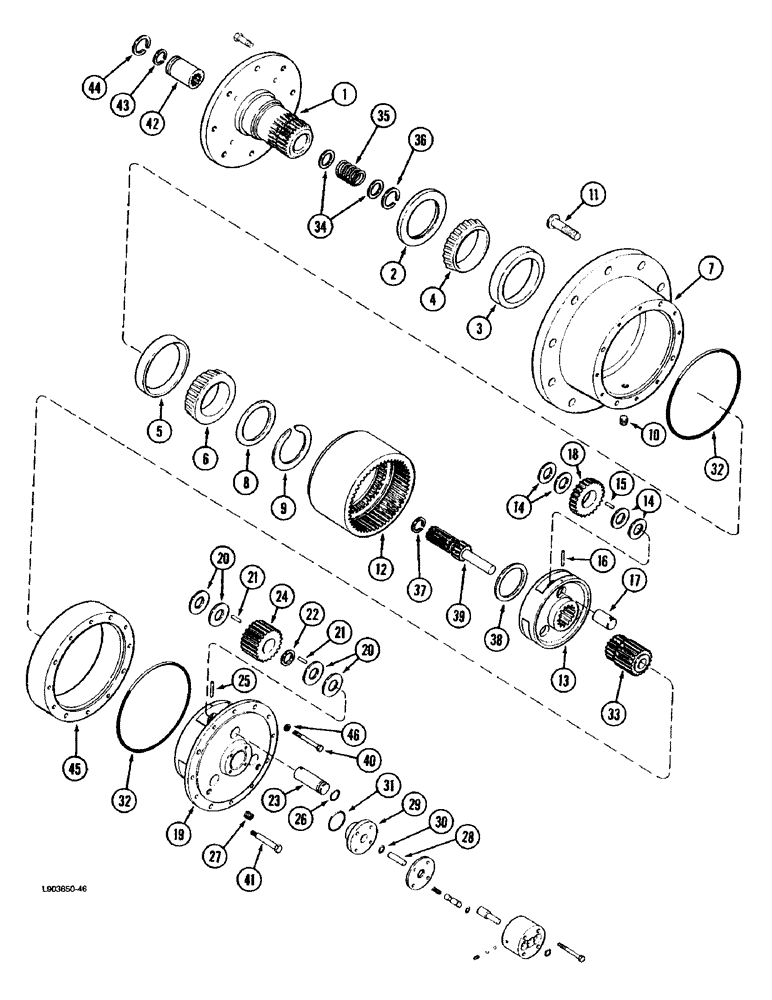

Запчасти Case IH 1670 (5-18) - GUIDE WHEEL DRIVE (04) - STEERING

1

1304790C1

SPINDLE

- hub drive

1шт.

2

1989261C1

SEAL

- spindle

1шт.

3

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing (Replaces cup 622337C1)

1шт.

4

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE - bearing

1шт.

5

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CUP - bearing, spindle

1шт.

6

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CONE - bearing, spindle

1шт.

7

1304791C1

HUB

- axle drive

1шт.

8

1304792C1

WASHER

- hub drive

1шт.

9

1989262C1

RING

- retaining

1шт.

10

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT (Replaces plug 444697)

2шт.

11

1304992C1

WHEEL BOLT

BOLT - hub drive

10шт.

12

1989263C1

GEAR

- drive hub internal

1шт.

1989264C1

CARRIER ASSY.

CARRIER ASSEMBLY - drive hub input, Includes: Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - input

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - thrust

12шт.

15

NSS

NOT SOLD SEPARAT

BEARING - needle

57шт.

16

NSS

NOT SOLD SEPARAT

PIN - dowel

3шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - planet

3шт.

18

NSS

NOT SOLD SEPARAT

GEAR - planet

3шт.

1989265C1

CARRIER ASSY.

CARRIER ASSEMBLY - drive hub output, Includes: Ref. 19 - 27

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - output carrier

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - thrust

12шт.

21

NSS

NOT SOLD SEPARAT

BEARING - needle

108шт.

22

NSS

NOT SOLD SEPARAT

SPACER - gear

3шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - planet

3шт.

24

NSS

NOT SOLD SEPARAT

GEAR - planet

3шт.

25

NSS

NOT SOLD SEPARAT

PIN - dowel

3шт.

26

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk

3шт.

27

NSS

NOT SOLD SEPARAT

PLUG - magnetic

2шт.

28

1989267C1

ROD

- disconnect

1шт.

29

1989268C1

CAP

- cover

1шт.

30

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

31

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

32

1989271C1

O-RING

- end cover

2шт.

33

1989272C1

GEAR

- sun, second stage

1шт.

34

1304796C1

WASHER

- drive hub

2шт.

35

1304797C1

SPRING

- drive hub

1шт.

36

1304994C1

RING

- hub retaining

1шт.

37

101-11125

SNAP RING,#125, 1.179", Ext

RING - retaining, external (Replaces ring 583976R1)

1шт.

38

1975415C1

THRUST WASHER,76.25mm ID x 95mm OD x 3.2mm Thk

- thrust (Replaces washer 1989273C1)

1шт.

39

1989274C1

SHAFT

- input gear

1шт.

40

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.

41

1989275C1

BOLT

- shoulder, drive hub

4шт.

42

1304991C1

COUPLING

- drive hub

1шт.

43

1304993C1

RING

- hub retaining

1шт.

44

101-11175

SNAP RING,#175, 1.640", Ext

RING - retaining (Replaces ring 336000R1)

1шт.

45

1989276C1

SPACER

- housing

1шт.

46

492-11038

LOCK WASHER,3/8"

8шт.
