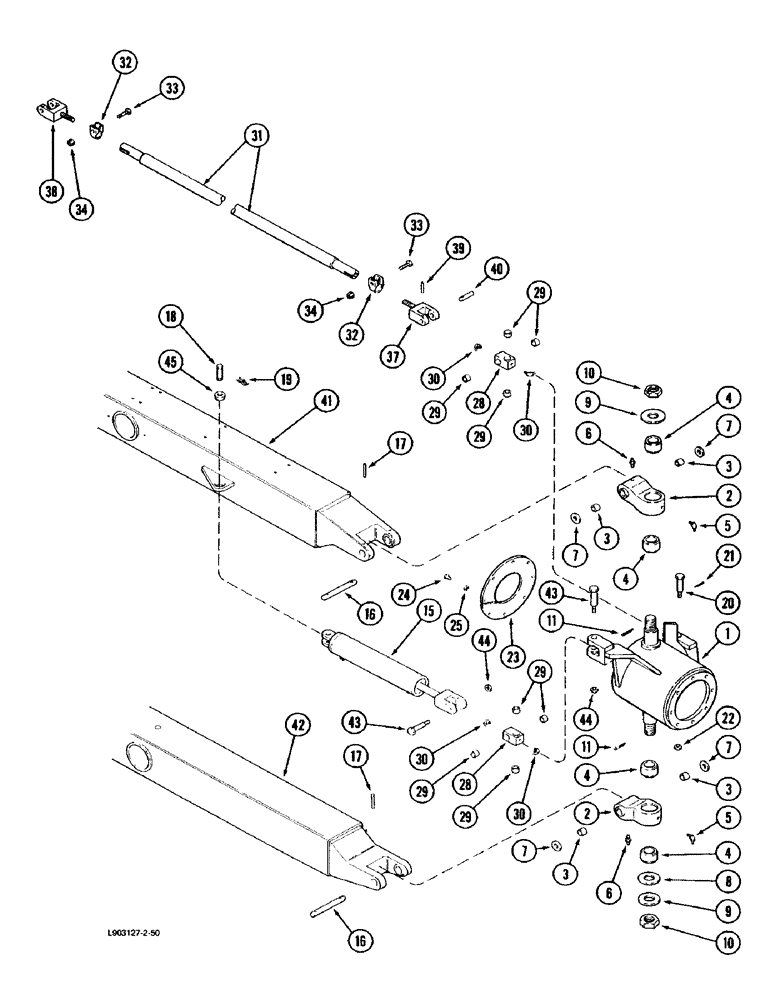

Запчасти Case IH 1670 (5-16) - STEERING KNUCKLE AND TIE RODS (04) - STEERING

1

1331265C1

HOUSING ASSY.

KNUCKLE - steering axle, left-hand

1шт.

1

1331266C1

HOUSING ASSY.

KNUCKLE - steering axle, right-hand

1шт.

2

1304205C91

SUPPORT

BLOCK ASSEMBLY- knuckle, Includes: Ref. 3 and 4

4шт.

3

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

- knuckle block

2шт.

4

1304120C1

BUSHING

- knuckle block

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

4шт.

7

1304121C1

THRUST WASHER

- block bushing retaining

8шт.

8

1304363C1

WASHER

- bushing retaining

4шт.

9

1304609C1

THRUST WASHER

- retaining

4шт.

10

1304152C1

NUT

- knuckle block retaining

4шт.

11

432-2448

COTTER PIN,3/8" x 3"

Pin, Split (Cotter), 3/8" x 3"

4шт.

15

1331242C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, parts list figure 5-10

2шт.

16

1304144C1

PIN

- knuckle block retaining

4шт.

17

38-12048

LOCK PIN,5/16" x 3", Slotted

Pin, (replaces pin 455184R1) 5/16" x 3", Slotted

8шт.

18

1304195C1

PIN

- steering cylinder clevis

2шт.

19

1304197C1

PIN

- retaining spring

4шт.

20

1304589C2

STEP BOLT,Hex, 1/2" - 13 x 3.38", Gr 5

PIN - cylinder retaining

2шт.

21

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

2шт.

22

425-128

SLOTTED NUT,1/2"-13, G5

NUT - hex, slotted, 1/2 inch NC

3шт.

23

1304714C1

SEAL

COVER - steering knuckle

2шт.

24

276-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

- self-tapping, hex head, 1/4 NC x 3/4 inch

8шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

28

1304607C91

BAR

BLOCK ASSEMBLY - connecting link, Includes: Ref. 29

4шт.

29

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

- 3/4 ID x 7/8 O.D. x 3/4 inch wide

8шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

8шт.

1304478C1

TURNBUCKLE

TIE ROD ASSEMBLY - steering axle, Includes: Ref. 31 and 32

1шт.

31

1304456C1

SUPPORT

ROD - tie (Replaces tie rod 1304565C1)

1шт.

32

1304579C1

CLAMP

- tie rod retaining

2шт.

33

426-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, grade 8

2шт.

34

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

37

1304601C1

YOKE

- tie rod, right-hand thread

1шт.

38

1304600C1

YOKE

- tie rod, left-hand thread

1шт.

39

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

(Replaces pin 576484R1) 3/16" x 1 3/4", Coiled

2шт.

40

1304482C1

PIN

- tie rod retaining

2шт.

41

1331211C1

BEAM

SUPPORT ASSEMBLY - steering axle, parts list figure 5-14

1шт.

42

1331212C1

BEAM

AXLE ASSEMBLY - steering support, parts list figure 5-14

1шт.

43

1331221C1

BOLT

- shoulder, 5/8 inch

2шт.

44

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

45

1304603C1

BUSHING

- cylinder support

2шт.
