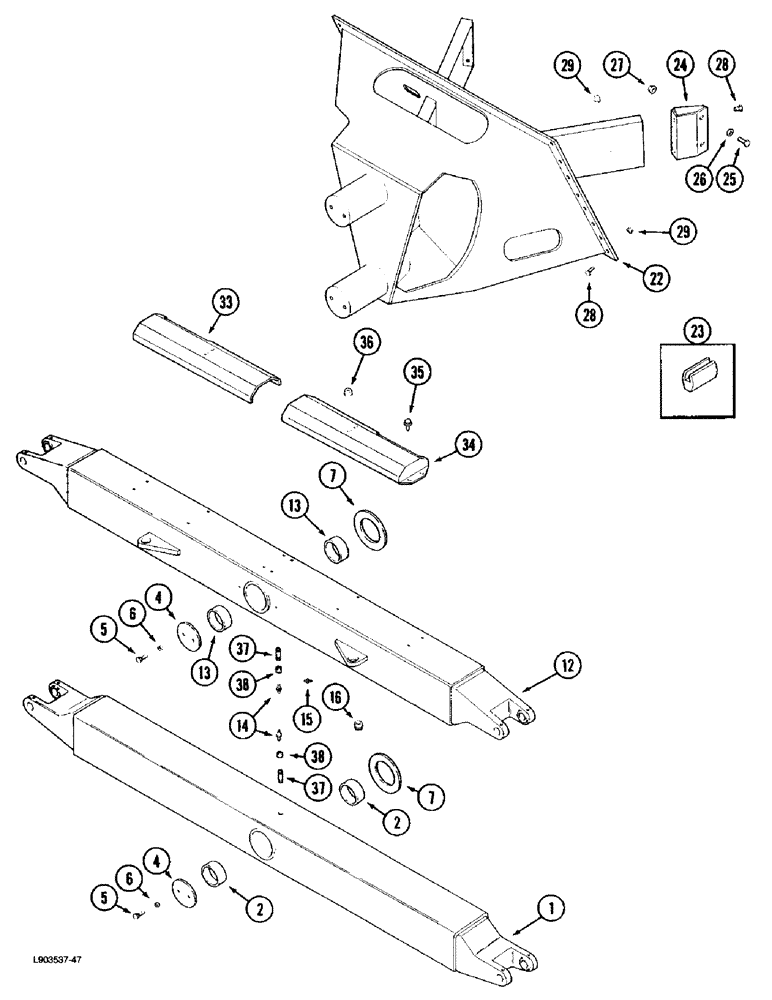

Запчасти Case IH 1670 (5-14) - STEERING AXLE (04) - STEERING

1

1331212C1

BEAM

AXLE ASSEMBLY - steering support, Includes: Ref. 2

1шт.

2

1331218C1

BUSHING

- support axle

2шт.

4

1331210C1

CAP

- axle pivot pin

2шт.

5

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

7

1331244C1

WASHER

- thrust

2шт.

12

1331211C1

BEAM

SUPPORT ASSEMBLY - steering axle, Includes: Ref. 13

1шт.

13

1331218C1

BUSHING

- support axle

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

16

1304603C1

BUSHING

- cylinder support

2шт.

22

1331200C1

SUPPORT

- steering axle

1шт.

23

1304129C1

STRIP

MOULDING - support

1шт.

24

1304985C1

SUPPORT

- tail box

2шт.

25

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, grade 8

8шт.

26

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

27

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, grade 8

8шт.

28

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8

16шт.

29

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

16шт.

33

1331320C1

SHIELD

- axle support, left-hand

1шт.

34

1331321C1

SHIELD

- axle support, right-hand

1шт.

35

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

37

221-109

PIPE,Nipple, 1/8" NPT x 2"

REDUCER - pipe, 3/4 inch male x 1/8 inch female (Replaces nipple 114794)

2шт.

38

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch

2шт.
