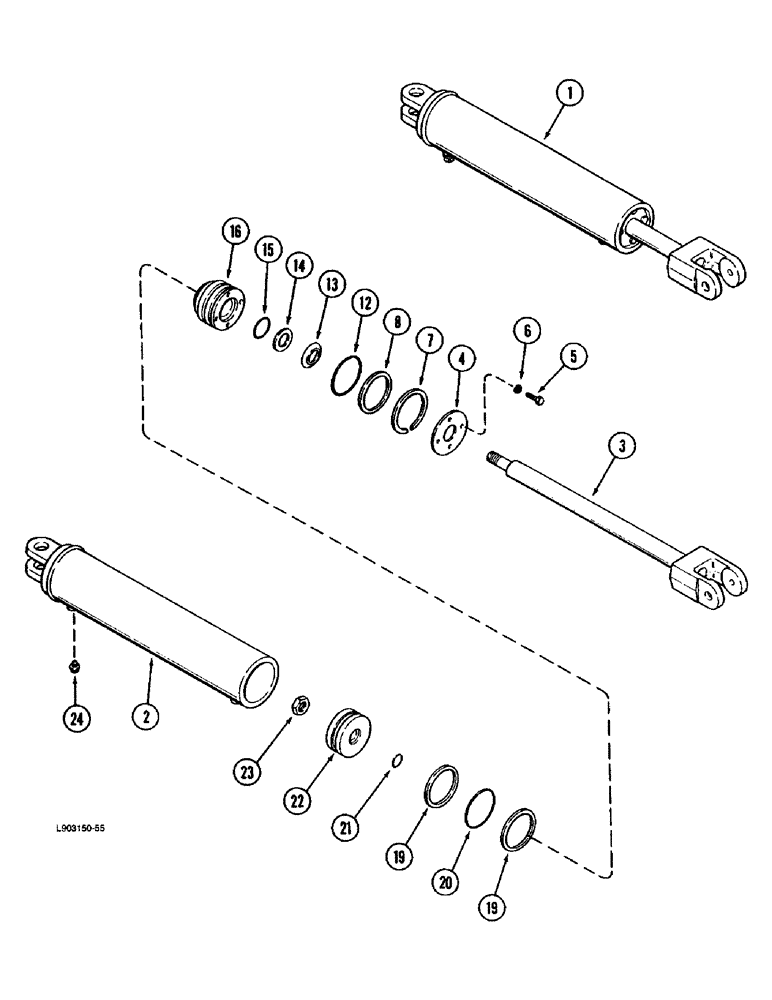

Запчасти Case IH 1670 (5-10) - STEERING CYLINDER (04) - STEERING

1

1331242C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, Includes: Ref. 2 - 24

2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - steering cylinder (Order 1331242C1)

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - cylinder rod (Order 1331242C1)

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - head backup (Order 1331242C1)

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT - backup plate retaining

4шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - head backup

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - head

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - yoke rod

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - head

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

16

NSS

NOT SOLD SEPARAT

HEAD - cylinder (Order 1331242C1)

1шт.

19

NSS

NOT SOLD SEPARAT

RING - piston backup

2шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Order 1331242C1)

1шт.

23

NSS

NOT SOLD SEPARAT

NUT - yoke rod retaining

1шт.

Part of Seal Kit Repair Kit P/N 1331397C1

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - cylinder housing (Order 1331242C1)

1шт.

1331397C1

KIT

- seal repair, Includes: Ref 5-15, 19-21 and 23

1шт.
