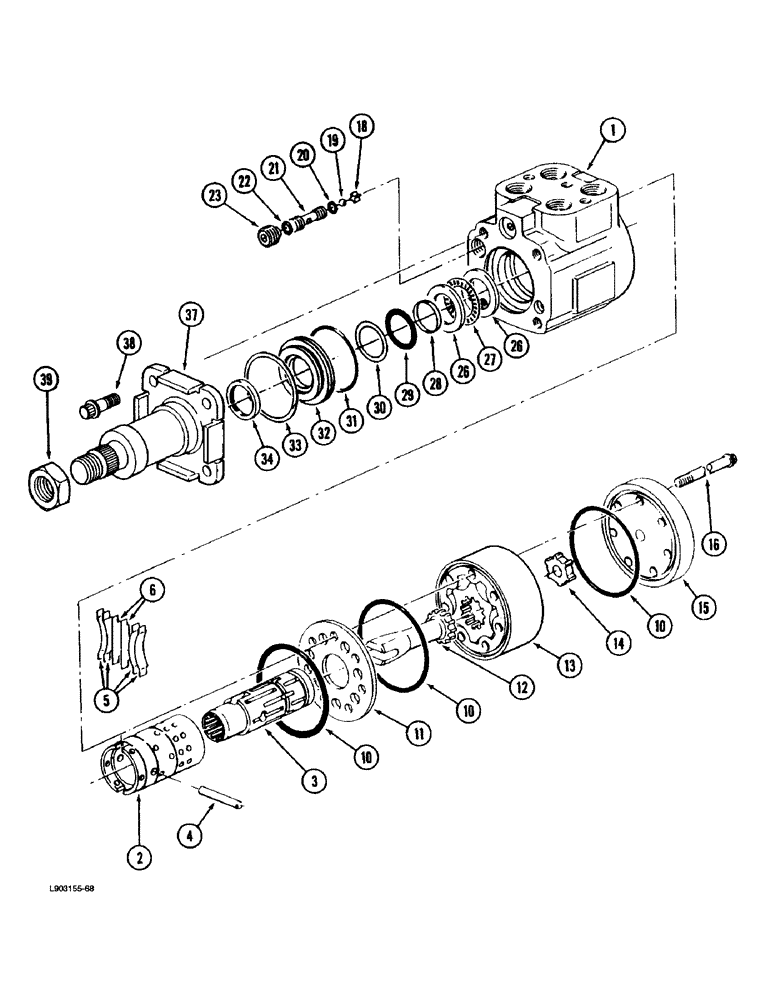

Запчасти Case IH 1670 (5-08) - STEERING PUMP (04) - STEERING

1343673C2

PUMP

ASSEMBLY - steering, Includes: Ref. 1 - 39

1шт.

1346270C1

CONTROL

HOUSING AND CONTROL ASSEMBLY - pump, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering (Not shown)

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet (Not shown)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

L30888

PIN

- roll

1шт.

N14250

KIT

- centering spring, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering (Set of 6 springs)

4шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- end cap

3шт.

Part of Seal Kit P/N 1343658C1

1шт.

11

S113037

PLATE

- spacer

1шт.

12

L30878

DRIVE SHAFT

SHAFT - drive, gerotor

1шт.

13

1346264C1

GEAR

GEROTOR - pump

1шт.

14

L33444

SPACER

- gerotor (Replaces spacer 1346265C1)

1шт.

15

D82809

COVER

CAP - end

1шт.

16

79-1540

12 PT SCREW,Flg, 5/16" - 24 x 2.50", Gr 8

BOLT - 12 point flange, 5/16-24 NC x 2-1/2 inch, grade 8 (Replaces bolt 1346263C1)

7шт.

18

L35368

RETAINER

- check ball

1шт.

19

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 200

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 inch

1шт.

Part of Seal Kit P/N 1343658C1

1шт.

21

D82806

VALVE SEAT

SEAT - check ball

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

Part of Seal Kit P/N 1343658C1

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

WASHER - thrust

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

28

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon

1шт.

Part of Seal Kit P/N 1343658C1

1шт.

29

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1343658C1

1шт.

30

50-2703T1

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit P/N 1343658C1

1шт.

31

102569A1

VALVE POPPET

SEAL - 1-7/8 inch ID (Replaces seal N14515)

1шт.

Part of Seal Kit P/N 1343658C1

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

697494R91

OIL SEAL

SEAL - 1 inch ID (Replaces seal A28211)

1шт.

Part of Seal Kit P/N 1343658C1

1шт.

37

S237323

COLUMN JACKET

COLUMN ASSEMBLY - steering pump, Includes: Ref. 38

1шт.

38

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

39

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex (Replaces nut 368576R1)

1шт.

1343658C1

SEAL KIT

KIT - seal replacement, Includes: Ref. 10, 20, 22, 28-31 and 34

1шт.
