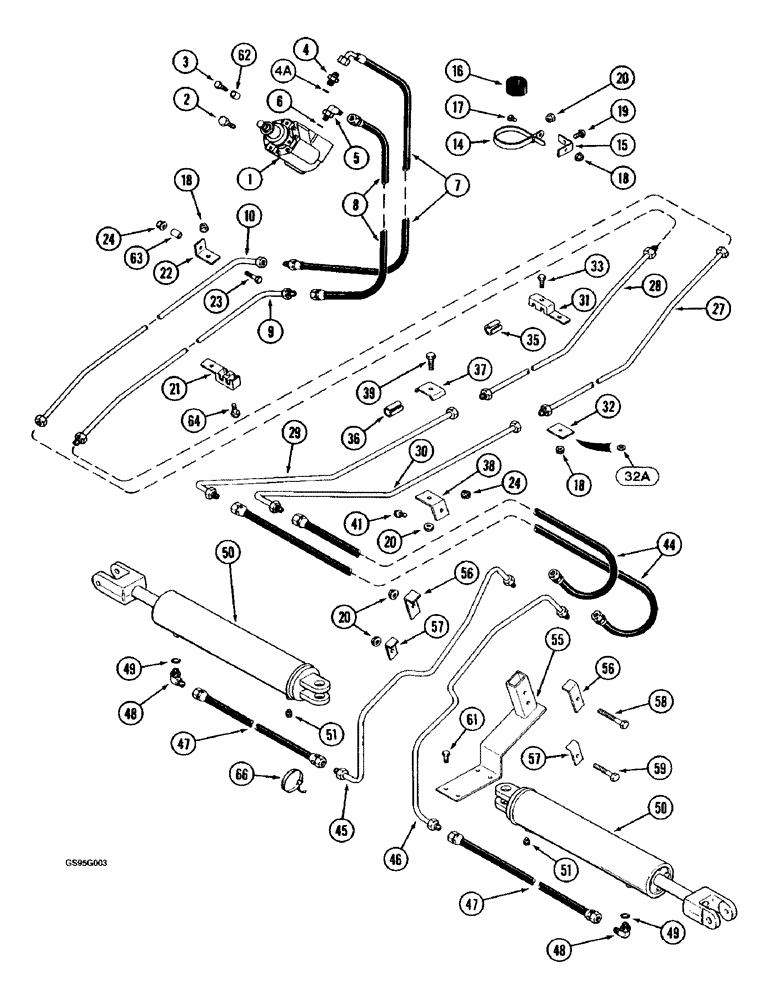

Запчасти Case IH 1670 (5-06) - HYDRAULIC STEERING SYSTEM, PUMP TO CYLINDER (04) - STEERING

1

1343673C2

PUMP

ASSEMBLY - steering hand, parts list figure 5-8

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

3

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 4A

2шт.

4a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

7

1301964C2

HOSE

- steering, left-hand

1шт.

8

195869C2

HYDRAULIC HOSE

HOSE - steering, right-hand, 75 inch (1905 mm) long

1шт.

9

1304071C1

TUBE

- steering, upper inner

1шт.

10

1304070C1

TUBE

- steering, upper outer

1шт.

14

1317166C1

STRAP

- retaining

1шт.

15

365265C1

EXTENSION

BRACKET - retaining

1шт.

16

167955C2

SEAL

GROMMET - steering cylinder hoses

2шт.

17

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

21

1301178C1

CLAMP

- tube, 1/2 inch double

2шт.

22

183899C1

ANGLE

- hand pump tubes

2шт.

23

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

24

231-5146

FLANGE NUT,3/8"-16

1шт.

27

1310509C1

HYD TUBE,0.5" OD, 78.8, 7.6" Length

TUBE - steering, lower inner

1шт.

28

1310510C1

HYD TUBE,0.5" OD, 77.5, 6.6" Length

TUBE - steering, lower outer

1шт.

29

1304844C1

TUBE ASSY.,0.5" OD, 36.3, 9, 2.5" Length

TUBE - steering, outer

1шт.

30

1304845C1

TUBE ASSY.

TUBE - steering, inner

1шт.

31

1301178C1

CLAMP

- tube, 1/2 inch double

1шт.

32

198462C1

PLATE

- clamp support, no longer used, replace with 495-81121 washer, Ref. 32A

1шт.

32a

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

3шт.

35

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - rubber, 3/4 ID x 1-13/64 inch long

2шт.

36

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

1шт.

37

165601C1

CLAMP

- tube

1шт.

38

178960C1

BRACKET

SUPPORT - steering rear tubes

1шт.

39

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

44

1304251C2

HYDRAULIC HOSE

HOSE - 1/2 x 41 inch

2шт.

45

1331348C1

TUBE

- steering, left-hand

1шт.

46

1331349C1

TUBE

- steering, right-hand

1шт.

47

D52256

HOSE

- cylinder, 45 inch, if used (Replaces hose 1310709C1)

2шт.

47

813610C1

HOSE

- cylinder, 50 inch, if used

2шт.

48

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj. O-ring boss, Includes: Ref. 49

2шт.

50

1331242C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, parts list figure 5-10

2шт.

51

1304785C1

BREATHER

- cylinder port

2шт.

55

1304668C2

SUPPORT TUBE

BRACKET - steering tube support

1шт.

56

1304634C1

SUPPORT

CLAMP - tube retaining

2шт.

57

1304633C1

SUPPORT

CLAMP - tube retaining

2шт.

58

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

1шт.

59

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

1шт.

61

276-14916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW - self-tapping, hex head, 3/8 NC x 1 inch

4шт.

62

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

2шт.

63

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

1шт.

64

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

66

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

33

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
