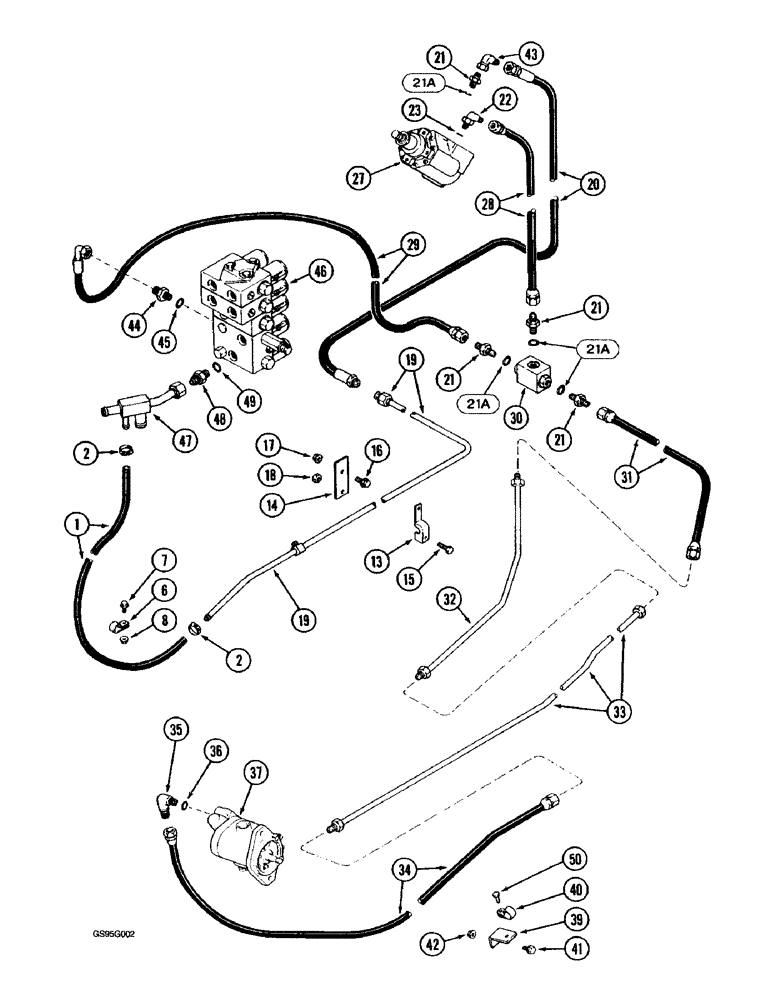

Запчасти Case IH 1670 (5-04) - HYDRAULIC STEERING SYSTEM, PUMP SYSTEM (04) - STEERING

1

NSS

NOT SOLD SEPARAT

HOSE - steering return, 26 inch long, cut from S118466X bulk hose, see below

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

6

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type (Replaces clamp 26613R1) 1 7/8", Insul, 1/2" Bolt

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

13

183822C1

CLAMP

- tube, single, 5/8 inch O.D. tube

1шт.

14

196868C1

BAR

SUPPORT - steering tube

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

17

231-5146

FLANGE NUT,3/8"-16

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

19

1310764C1

HYD TUBE

TUBE - steering return, single flared, if used

1шт.

19

1310507C1

HYD TUBE,0.625" OD, 57.6, 7, 4.9" Length

TUBE - steering return, double flared, if used

1шт.

20

1317939C1

HOSE

- steering hand pump return

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 21A

4шт.

21a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

1343673C2

PUMP

ASSEMBLY - steering hand, parts list figure 5-8

1шт.

28

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 50 inch (1270 mm) long

1шт.

29

1301967C1

HOSE

- steering pressure, 56 inch (1422 mm) long

1шт.

30

1310866C1

VALVE

- steering shuttle

1шт.

31

1317160C1

HOSE ASSY.

HOSE - pressure, 32 inch (813 mm) long

1шт.

32

1304839C1

TUBE ASSY.

TUBE - steering pressure, front

1шт.

33

1304836C1

TUBE ASSY.

TUBE - steering pressure, rear

1шт.

34

1317160C1

HOSE ASSY.

HOSE - steering pressure, 32 inch (813 mm) long

1шт.

35

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj. O-ring boss, Includes: Ref. 36

1шт.

37

1343676C1

PUMP

ASSEMBLY - leveling

1шт.

39

187834C1

ANGLE

BRACKET - clamp retaining

1шт.

40

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type (Replaces clamp 49838) 1/2", Insul, 3/8" Bolt

1шт.

41

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

43

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

44

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 45

1шт.

46

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list figure 8-30 or 8-32

1шт.

47

1310757C1

TUBE

- header lift and steering return

1шт.

48

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

50

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

2шт.

S118466X

LARGE HOSE

HOSE - bulk, 1/2 (13) ID x 300 inch (7620 mm) long

1шт.

15

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
