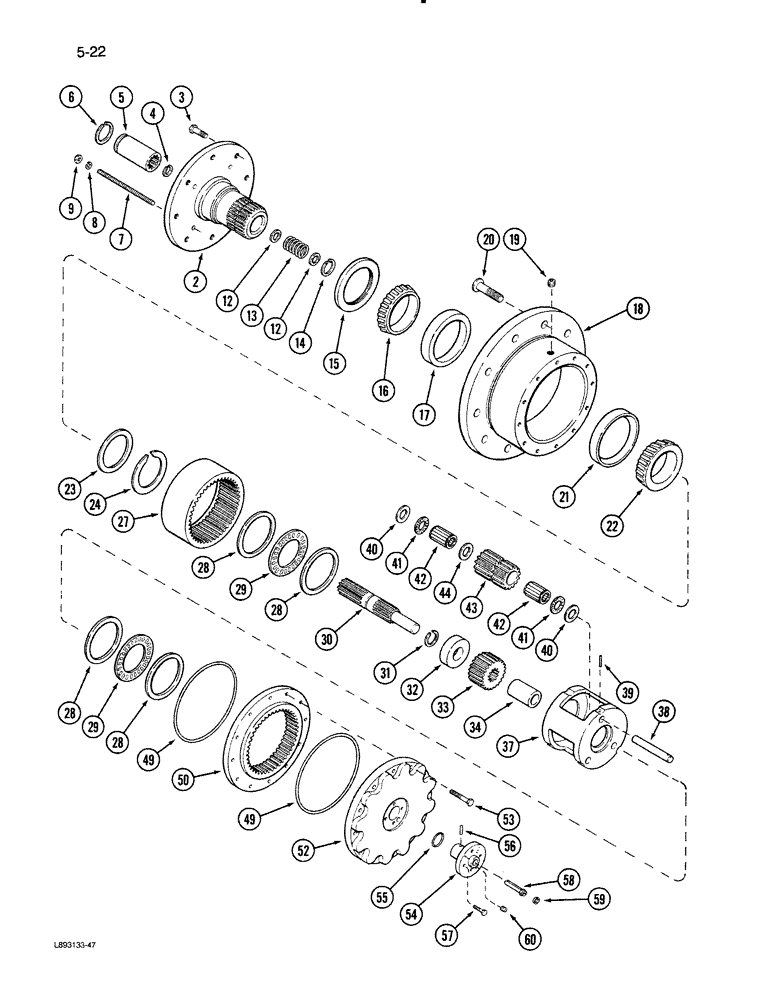

Запчасти Case IH 1670 (5-22) - GUIDE WHEEL DRIVE (04) - STEERING

1347129C1

X

DRIVE ASSEMBLY - guide wheel (Replaces 1314152C91), Includes: Ref. 2 - 60

2шт.

2

1304790C1

SPINDLE

- hub drive

1шт.

3

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

4

1304993C1

RING

- hub retaining

1шт.

5

1304991C1

COUPLING

- drive hub

1шт.

6

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining snap

1шт.

7

1304199C1

STUD

- rear brake

4шт.

8

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

9

129-184

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

4шт.

12

1304796C1

WASHER

- drive hub

2шт.

13

1304797C1

SPRING

- drive hub

1шт.

14

1304994C1

RING

- hub retaining

1шт.

15

1989261C1

SEAL

- hub

1шт.

Part of hub seal kit P/N 1304147C1

1шт.

16

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE - bearing

1шт.

17

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

CUP - bearing

1шт.

18

1304791C1

HUB

- axle drive

1шт.

19

444697

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch

2шт.

20

1304992C1

WHEEL BOLT

BOLT - hub drive

10шт.

21

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CUP - bearing, spindle

1шт.

22

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

CONE - bearing, spindle

1шт.

23

1304792C1

WASHER

- hub drive

1шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of hub seal kit P/N 1304147C1

1шт.

27

1304793C1

GEAR

- drive hub

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - bearing backup

4шт.

Part of hub seal kit P/N 1304147C1

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - thrust

2шт.

Part of hub seal kit P/N 1304147C1

1шт.

30

1314153C1

DRIVE SHAFT

SHAFT - drive hub input

1шт.

31

583976R1

SNAP RING,#125, 1.179", Ext

RING - retaining

1шт.

32

1314154C1

SPACER

- drive hub thrust

1шт.

33

1314156C1

GEAR

- drive hub input

1шт.

34

1314155C1

SPACER

- drive hub thrust

1шт.

37

1304794C1

CARRIER

- drive hub, Includes: Ref. 38 - 44

1шт.

38

NSS

NOT SOLD SEPARAT

PIN - carrier gear (Order 1304794C1)

3шт.

39

364436R1

PIN,3/16" x 1", Coiled

3шт.

40

1314148C1

THRUST WASHER

- thrust, outer

6шт.

41

1314147C1

THRUST WASHER

- thrust, inner

6шт.

42

NSS

NOT SOLD SEPARAT

BEARING - hub carrier (Order 1304794C1)

6шт.

43

NSS

NOT SOLD SEPARAT

GEAR - carrier (Order 1304794C1)

3шт.

44

NSS

NOT SOLD SEPARAT

WASHER - bearing backup (Order 1304794C1)

3шт.

49

1989271C1

O-RING

- hub cover

2шт.

Part of hub seal kit P/N 1304147C1

1шт.

50

1304795C1

GEAR

- drive hub ring

1шт.

52

NSS

NOT SOLD SEPARAT

COVER - drive hub (Order 1314152C91)

1шт.

53

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

- hex, 3/8 NC x 2-1/2 inch Grade 8

1шт.

53

1304990C1

STEP BOLT

BOLT - drive hub shoulder

1шт.

54

NSS

NOT SOLD SEPARAT

COVER - hub

1шт.

Part of torque hub kit P/N 1304739C91

1шт.

55

NSS

NOT SOLD SEPARAT

O-RING - hub cover

1шт.

Part of torque hub kit P/N 1304739C91

1шт.

56

NSS

NOT SOLD SEPARAT

PIN - hub cover

1шт.

Part of torque hub kit P/N 1304739C91

1шт.

57

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, Grade 8

4шт.

58

NSS

NOT SOLD SEPARAT

ROD - cover

1шт.

Part of torque hub kit P/N 1304739C91

1шт.

59

NSS

NOT SOLD SEPARAT

SEAL - cover rod

1шт.

Part of torque hub kit P/N 1304739C91

1шт.

60

444687

PLUG,Hex Soc, 1/8"-27

1шт.

1304147C1

SEAL KIT

- hub seal, Includes: Ref. 15, 24, 28, 29 and 49

1шт.

1304739C91

KIT

- torque hub, Includes: Ref. 54, 55, 56, 58 and 59

1шт.
