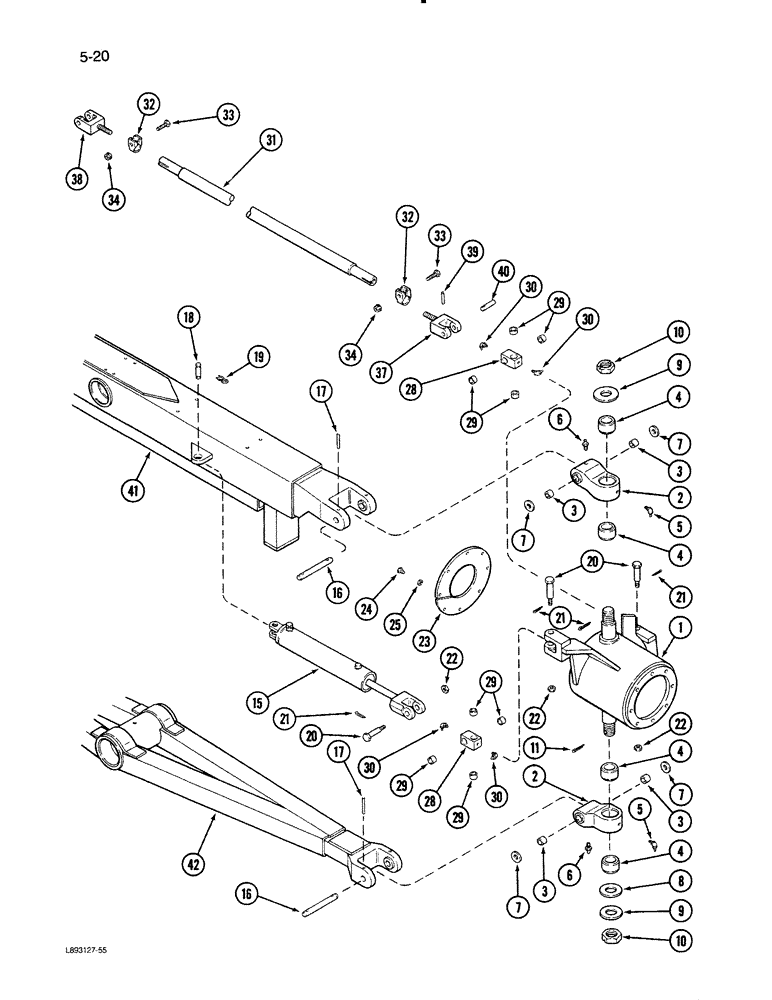

Запчасти Case IH 1670 (5-20) - STEERING KNUCKLE AND TIE RODS (04) - STEERING

1

1304176C92

HOUSING

KNUCKLE - steering axle, left

1шт.

1

1304177C92

HOUSING

KNUCKLE - steering axle, right

1шт.

2

1304205C91

SUPPORT

BLOCK - knuckle, Includes: Ref. 3 and 4

4шт.

3

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

- knuckle block

2шт.

4

1304120C1

BUSHING

- knuckle block

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

4шт.

7

1304121C1

THRUST WASHER

- block bushing retaining

8шт.

8

1304363C1

WASHER

- bushing retaining

4шт.

9

1304609C1

THRUST WASHER

- retaining

4шт.

10

1304152C1

NUT

- knuckle block retaining

4шт.

11

21654R1

PIN, SPLIT (COTTER),3/8" x 3"

4шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-12)

2шт.

16

1304144C1

PIN

- knuckle block retaining

4шт.

17

455184R1

LOCK PIN,5/16" x 3", Slotted

Pin, 5/16" x 3", Slotted

8шт.

18

1304195C1

PIN

- steering cylinder clevis

2шт.

19

1304197C1

PIN

- retaining spring

4шт.

20

1304589C2

STEP BOLT,Hex, 1/2" - 13 x 3.38", Gr 5

PIN - cylinder retaining

3шт.

21

119120

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32 x 1 1/4"

3шт.

22

121592

SLOTTED NUT,1/2"-13, G5

NUT - slotted hex, 1/2 inch NC

3шт.

23

1304714C1

SEAL

COVER - steering knuckle

2шт.

24

187-1515

SELF-TAP SCREW,1/4" - 20 x 3/4"

BOLT - hex tapping, 1/4 NC x 3/4 inch

8шт.

25

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

8шт.

28

1304607C91

BAR

BLOCK - connecting link, Includes: Ref. 29

2шт.

29

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

- connecting link

4шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

8шт.

1304478C1

TURNBUCKLE

TIE ROD ASSEMBLY - steering axle, Includes: Ref. 31 and 32

1шт.

31

1304565C1

TURNBUCKLE

ROD - tie, steering axle

1шт.

32

1304579C1

CLAMP

- tie rod retaining

2шт.

33

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, Grade 8

2шт.

34

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

37

1304601C1

YOKE

- tie rod, right hand thread

1шт.

38

1304600C1

YOKE

- tie rod, left hand thread

1шт.

39

576484R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

2шт.

40

1304482C1

PIN

- tie rod retaining

2шт.

41

REF

INSTRUCTION

SUPPORT - steering axle (See Figure 5-18)

1шт.

42

REF

INSTRUCTION

AXLE - steering support (See Figure 5-18)

1шт.
