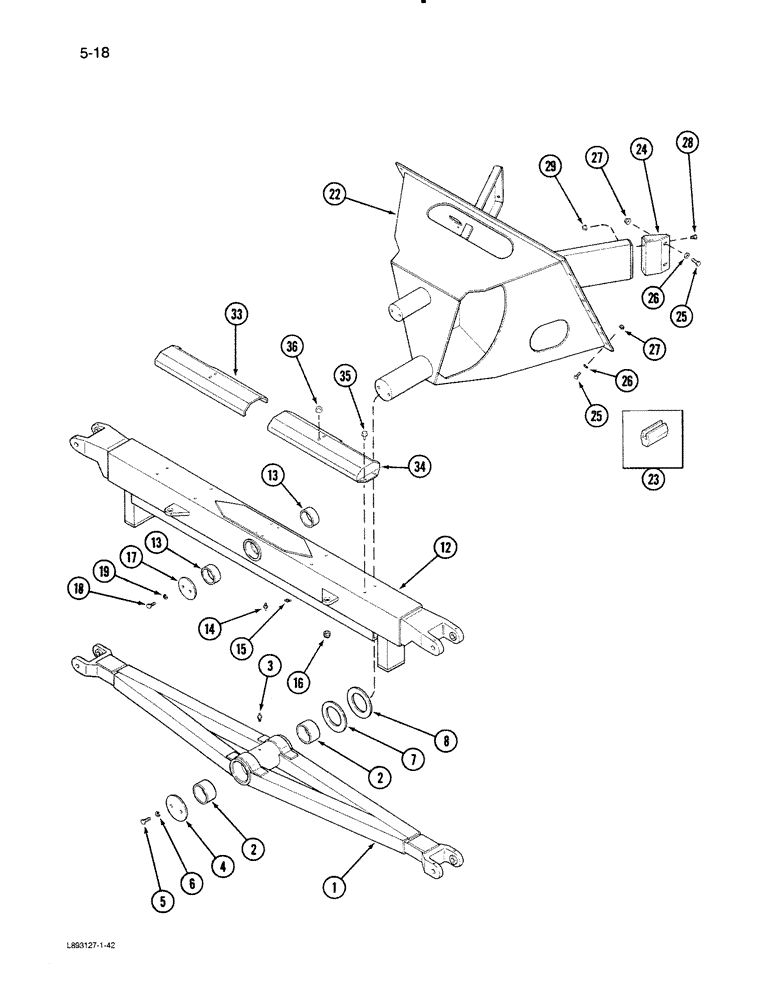

Запчасти Case IH 1670 (5-18) - STEERING AXLE (04) - STEERING

1

1304118C92

SUPPORT

AXLE - steering support, Includes: Ref. 2

1шт.

2

1304117C1

BUSHING,127.71mm ID x 133.48mm OD x 63.5mm L

- support axle

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

6шт.

4

1304126C1

RETAINER

CAP - axle pivot pin

1шт.

5

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

6

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- thrust, pivot shaft

1шт.

8

1304111C1

WASHER

- thrust

1шт.

12

1304771C93

BEAM

SUPPORT - steering axle, Includes: Ref. 13

1шт.

13

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- pivot, axle

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

16

1304603C1

BUSHING

- cylinder support

2шт.

17

1304124C1

RETAINER

CAP - pivot pin

1шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

19

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

22

1304122C1

SUPPORT

- steering axle

1шт.

23

1304129C1

STRIP

MOULDING - support, rubber

1шт.

24

1304985C1

SUPPORT

- tail box

2шт.

25

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, Grade 8

4шт.

26

25712R1

WASHER

- flat, hardened 13/16 inch

4шт.

27

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex flange lock, 3/4 inch NC

4шт.

28

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, Grade 8

4шт.

29

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex flange lock, 1/2 inch NC, Grade 8

4шт.

33

1304574C1

SHIELD

- axle support, left

1шт.

34

1304575C1

SHIELD

- axle support, right

1шт.

35

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT - hex tapping, 5/16 NC x 3/4 inch

4шт.

36

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.
