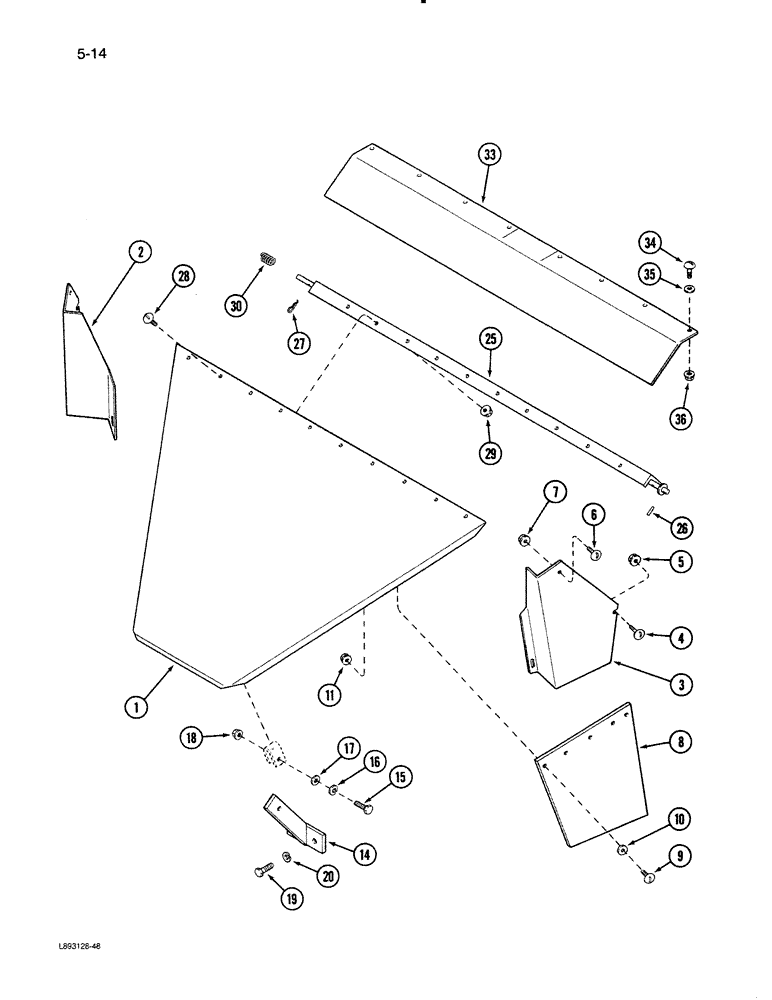

Запчасти Case IH 1670 (5-14) - 1304655C1 STEERING AXLE SHIELD (04) - STEERING

1

1304655C1

SHIELD

- steering axle

1шт.

2

1304719C2

SUPPORT

- shield, left

1шт.

3

1304720C2

SUPPORT

- shield, right

1шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

2шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

8

1304561C1

SEAL

- tail box

2шт.

9

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

10шт.

10

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

10шт.

11

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

10шт.

14

1304656C1

SUPPORT

- shield

1шт.

15

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

17

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

19

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

20

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25

1304744C1

SUPPORT

- shield

1шт.

26

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

27

586591R1

COTTER PIN

PIN - hair, 1/8 inch diameter

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

10шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.

30

203942C1

SPRING

- shield pivot

1шт.

33

1304658C1

SEAL

- axle shield

1шт.

34

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

8шт.

35

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

36

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.
