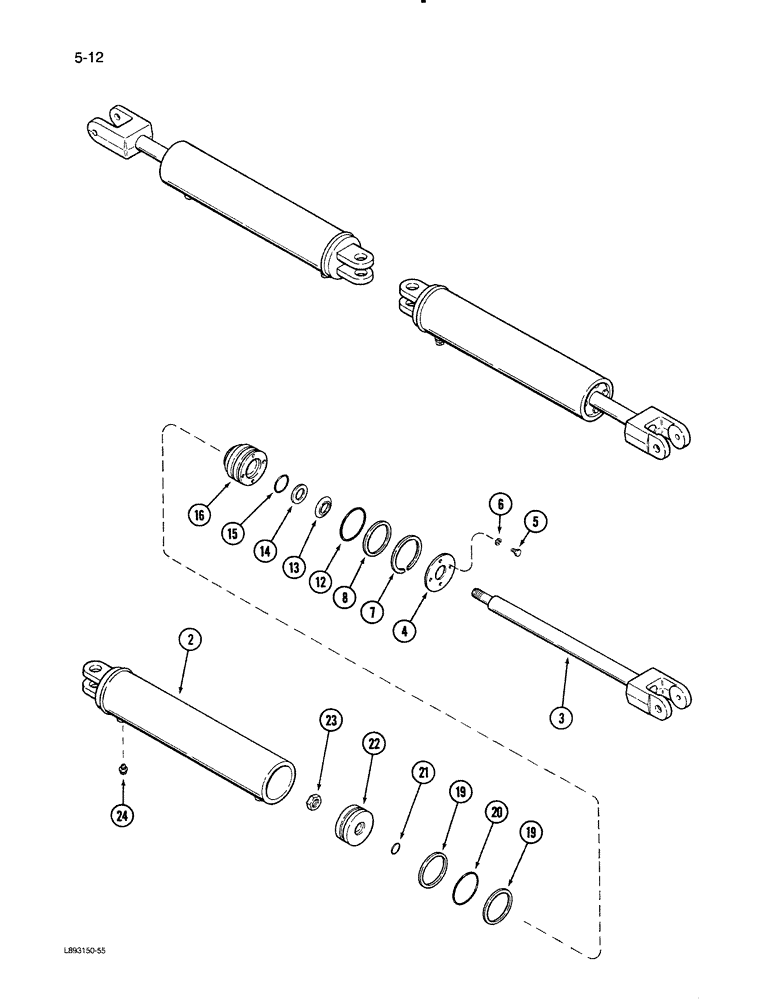

Запчасти Case IH 1670 (5-12) - 1304773C92 STEERING CYLINDER (04) - STEERING

1304773C92

CYLINDER

ASSEMBLY - steering

2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - steering cylinder (Order 1304773C92)

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - cylinder rod (Order 1304773C92)

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - head backup (Order 1304773C92)

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT - backup plate retaining

4шт.

Part of seal repair kit P/N 1304776C1

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

Part of seal repair kit P/N 1304776C1

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - head backup

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - head

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - yoke rod

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - head

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

16

NSS

NOT SOLD SEPARAT

HEAD - cylinder (Order 1304773C92)

1шт.

19

NSS

NOT SOLD SEPARAT

RING - piston backup

2шт.

Part of seal repair kit P/N 1304776C1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of seal repair kit P/N 1304776C1

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - cylinder (1304773C92)

1шт.

23

NSS

NOT SOLD SEPARAT

NUT - yoke rod retaining

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - cylinder housing (Order 1304773C92)

1шт.

1304776C1

SEAL KIT

- seal repair, Includes: Ref. 5 thru 15, 19 thru 21 and 22

1шт.
