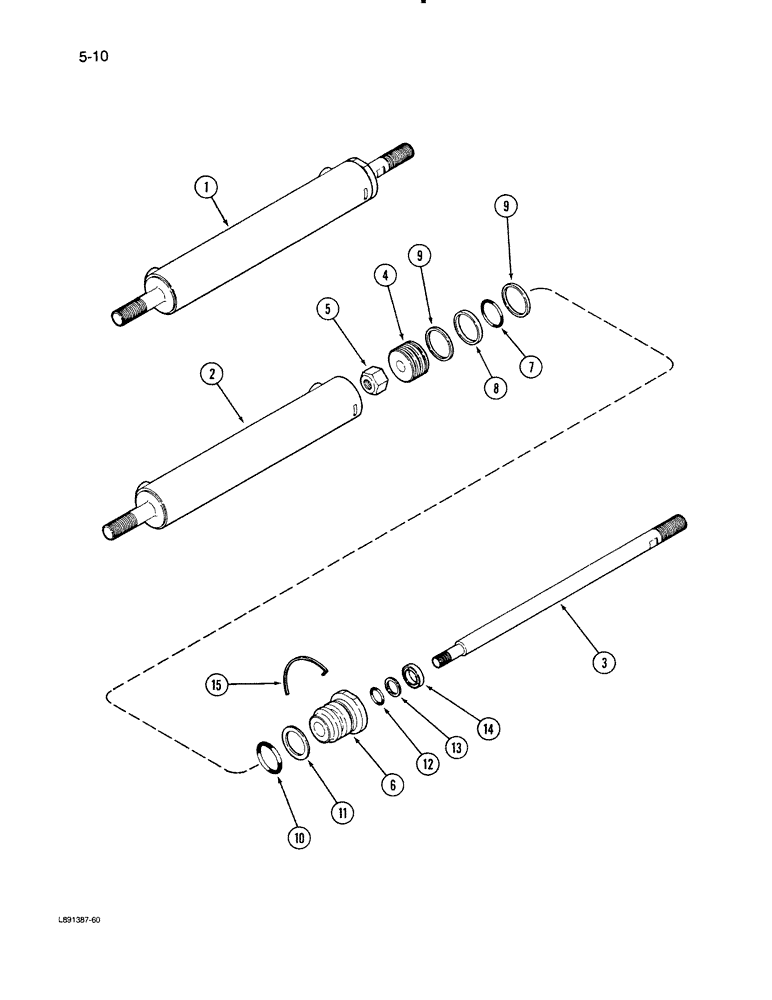

Запчасти Case IH 1670 (5-10) - 548247R91 STEERING CYLINDER (04) - STEERING

1

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSEMBLY - steering, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 548247R91)

1шт.

3

548251R1

ROD

- piston

1шт.

4

548252R1

PISTON

- cylinder

1шт.

5

27293R1

LOCK NUT,9/16"-18, GC

NUT - prevailing torque hex lock, 9/16 inch NF

1шт.

6

548354R1

HEAD

- front

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-9/16 x 1-3/4 inch

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

Part of cylinder service kit P/N 548357R91

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup, head

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 7/8 x 1-1/8 inch

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup, piston

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

15

NSS

NOT SOLD SEPARAT

RING - retaining wire

1шт.

Part of cylinder service kit P/N 548357R91

1шт.

548357R91

SEAL KIT

- cylinder service, Includes: Ref. 7 - 15

1шт.
