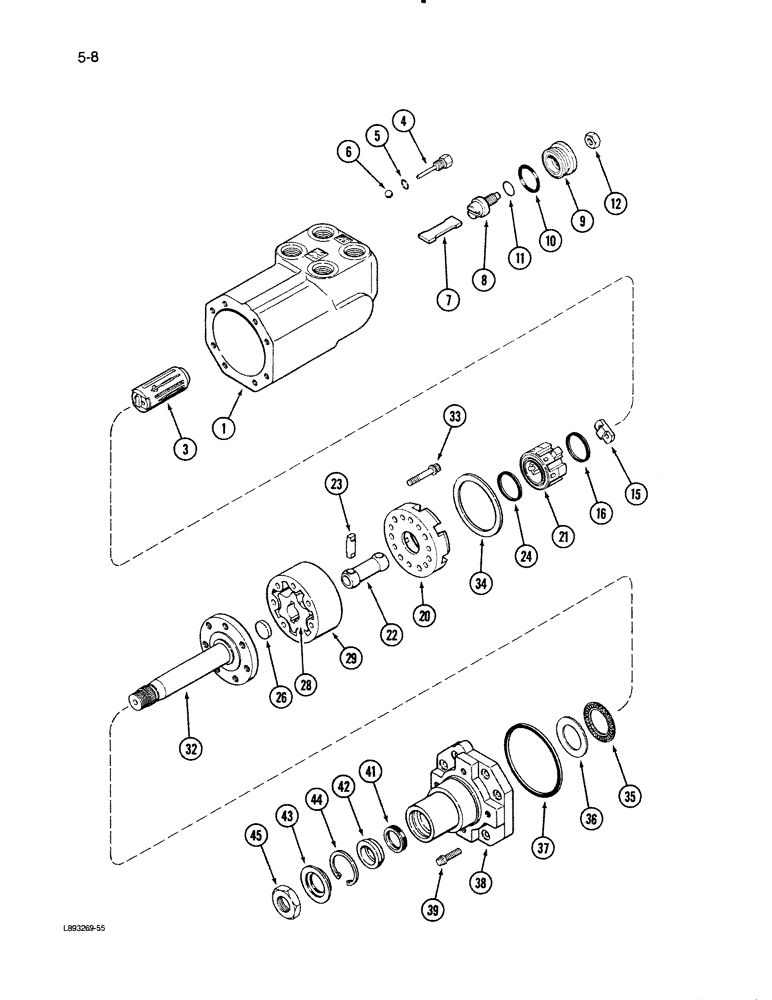

Запчасти Case IH 1670 (5-08) - STEERING HAND PUMP (04) - STEERING

1304074C91

HYDRAULIC STEERING

PUMP ASSEMBLY - steering hand, Includes: Ref. 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - housing

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

A47019

PLUG

PIN - guide

1шт.

5

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

17009R1

BALL

- 9/32 inch, Grade 25

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - torsion

2шт.

8

NSS

NOT SOLD SEPARAT

SCREW - pump adjusting

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - pump

1шт.

10

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-7/32 x 7/64 inch

1шт.

11

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 x 11/16 inch

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - hex jam, 3/8 inch NF

1шт.

15

NSS

NOT SOLD SEPARAT

RING - drive

1шт.

16

NSS

NOT SOLD SEPARAT

RING ASSEMBLY - seal

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - pump

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

22

NSS

NOT SOLD SEPARAT

LINK - drive

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - lock

2шт.

24

NSS

NOT SOLD SEPARAT

RING ASSEMBLY - seal

1шт.

26

NSS

NOT SOLD SEPARAT

SPACER - pump

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

32

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

33

NSS

NOT SOLD SEPARAT

BOLT - 12 point, 1/4 NF x 1-1/4 inch

7шт.

34

NSS

NOT SOLD SEPARAT

WASHER - hardened

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

1301869C1

WASHER

KIT - thrust washer, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.035 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.041 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.047 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.053 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.059 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.065 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.071 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.077 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - 0.083 inch

1шт.

37

1301870C1

O-RING,2.86" ID x 2.989" OD x 0.066"

O-RING - 2-55/64 x 2-63/64 x 43/64 inch

1шт.

38

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

39

NSS

NOT SOLD SEPARAT

BOLT - 12 point, 1/4 NF x 1 inch

8шт.

224712C1

SEAL KIT

KIT - seal, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

42

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

44

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

45

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, 13/16-20 inch

1шт.
