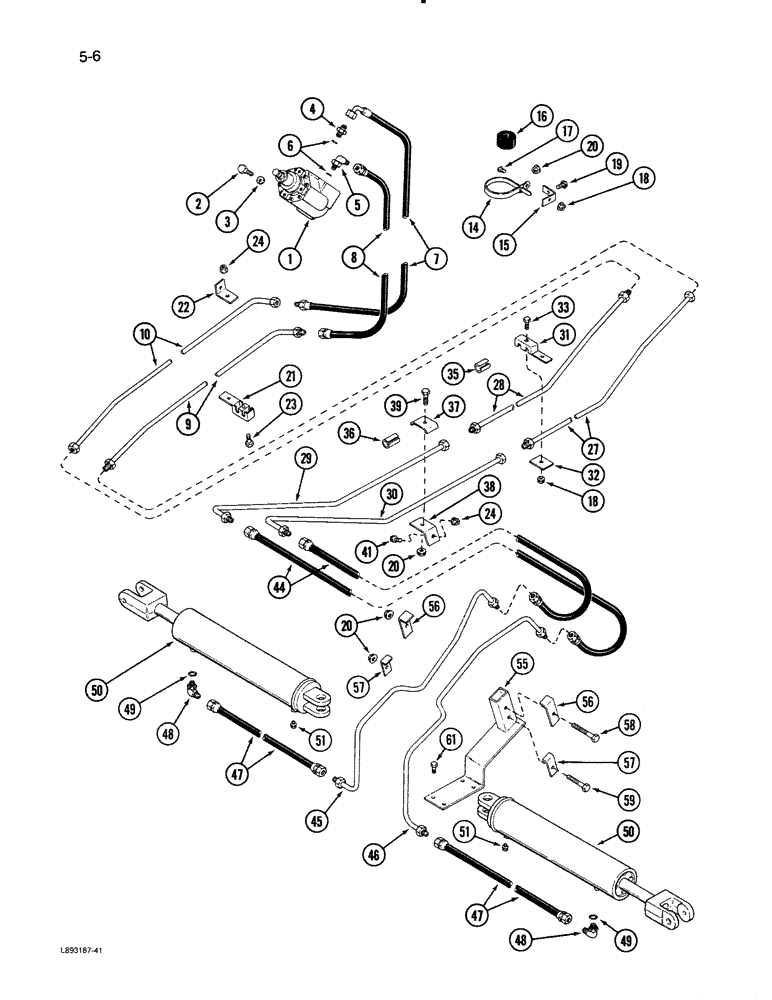

Запчасти Case IH 1670 (5-06) - HYDRAULIC STEERING SYSTEM, PUMP TO CYLINDER (04) - STEERING

1

REF

INSTRUCTION

PUMP - steering hand (See Figure 5-8)

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

7

1301964C1

HOSE

- steering, left

1шт.

8

1301966C2

HYDRAULIC HOSE

HOSE - steering, right

1шт.

9

1304071C1

TUBE

- steering, upper inner

1шт.

10

1304070C1

TUBE

- steering, upper outer

1шт.

14

1317166C1

STRAP

- retaining

1шт.

15

365265C1

EXTENSION

BRACKET - retaining

1шт.

16

167955C2

SEAL

GROMMET - steering cylinder hoses

2шт.

17

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

1шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

19

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

1шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

21

1301178C1

CLAMP

- steering tubes

2шт.

22

183899C1

ANGLE

- hand pump hoses

1шт.

23

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

1шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

27

1310509C1

HYD TUBE,0.5" OD, 78.8, 7.6" Length

TUBE - steering, lower inner

1шт.

28

1310510C1

HYD TUBE,0.5" OD, 77.5, 6.6" Length

TUBE - steering, lower outer

1шт.

29

1304844C1

TUBE ASSY.,0.5" OD, 36.3, 9, 2.5" Length

TUBE - steering, outer

1шт.

30

1304845C1

TUBE ASSY.

TUBE - steering, inner

1шт.

31

1301178C1

CLAMP

- steering tubes

1шт.

32

198462C1

PLATE

- steering tube retaining

1шт.

33

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

35

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - cover, steering tube

2шт.

36

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

1шт.

37

165601C1

CLAMP

- steering tube retaining

1шт.

38

178960C1

BRACKET

SUPPORT - steering rear tubes

1шт.

39

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

41

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

44

1304251C2

HYDRAULIC HOSE

HOSE - hydraulic, 1/2 x 41 inch

2шт.

45

1304769C2

HYD TUBE,0.5" OD, 539.8, 484.2 mm Length

TUBE - steering, left

1шт.

46

1304770C2

HYD TUBE

TUBE - steering, right

1шт.

47

1310709C1

HOSE

ASSEMBLY - 3/8 x 45 inch

2шт.

48

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adj, 3/4-16 flare x 9/16-18 inch O-ring

2шт.

50

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-12)

2шт.

51

1304785C1

BREATHER

- cylinder port

2шт.

55

1304668C2

SUPPORT TUBE

BRACKET - steering tube support

1шт.

56

1304634C1

SUPPORT

CLAMP - tube retaining

2шт.

57

1304633C1

SUPPORT

CLAMP - tube retaining

2шт.

58

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

59

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

1шт.

61

172487

SCREW,Hex, 3/8" - 16 x 1"

BOLT - hex tapping, 3/8 NC x 1 inch

4шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
