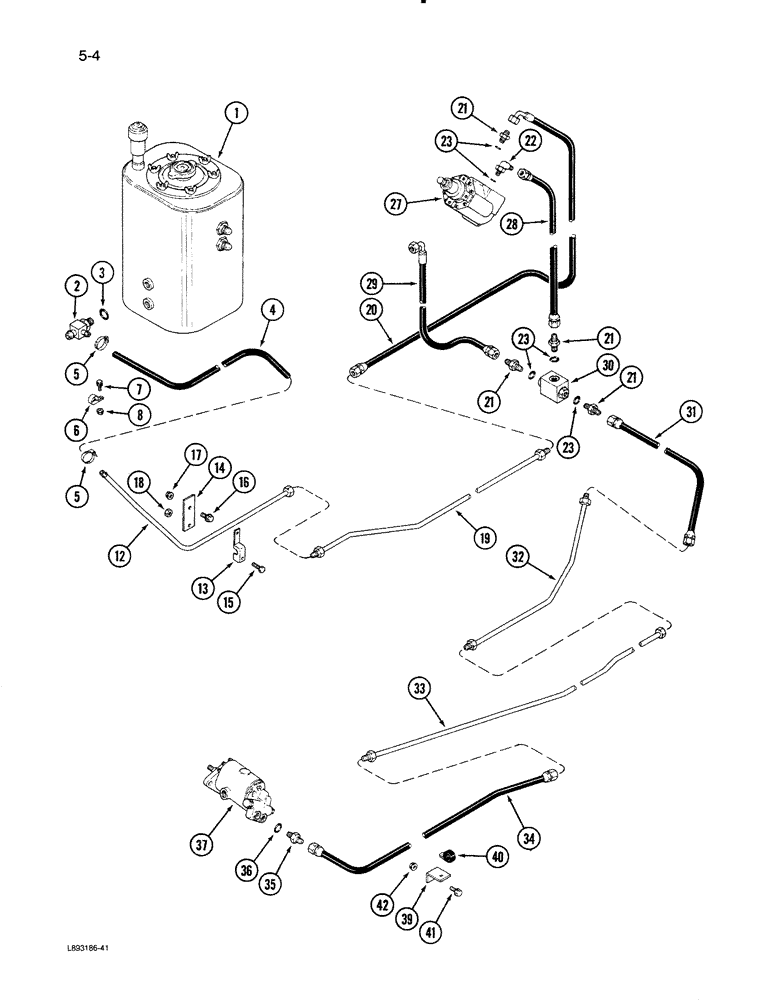

Запчасти Case IH 1670 (5-04) - HYDRAULIC STEERING SYSTEM, RESERVOIR TO PUMP (04) - STEERING

1

REF

INSTRUCTION

RESERVOIR - oil (See Figure 8-2 and 8-4)

1шт.

2

172059C1

TEE

ASSEMBLY - adjustable

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

4

171939C1

HOSE ASSY.

HOSE - steering return, 18 inch (Order 180720C2, Serial Range: cut-length)

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

6

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch diameter

1шт.

7

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

12

196746C1

HYD TUBE

TUBE - steering return

1шт.

13

183822C1

CLAMP

- tube, single, 5/8 inch OD tube

1шт.

14

196868C1

BAR

SUPPORT - steering tube

1шт.

15

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

16

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

19

1310507C1

HYD TUBE,0.625" OD, 57.6, 7, 4.9" Length

TUBE - steering return

1шт.

20

1301965C1

HOSE

- hydraulic, 39 inch long

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

3шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

5шт.

27

REF

INSTRUCTION

PUMP ASSEMBLY - steering hand (See Figure 5-8)

1шт.

28

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - hydraulic, 50 inch long

1шт.

29

1301967C1

HOSE

- steering pressure

1шт.

30

1310866C1

VALVE

- steering shuttle

1шт.

31

1317160C1

HOSE ASSY.

HOSE - pressure

1шт.

32

1304839C1

TUBE ASSY.

TUBE - steering pressure, front

1шт.

33

1304836C1

TUBE ASSY.

TUBE - steering pressure, rear

1шт.

34

1304245C2

HYDRAULIC HOSE

HOSE - steering pressure

1шт.

35

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 3/4-16 thread x 9/16 inch thread

1шт.

37

1304183C91

PUMP

ASSEMBLY - leveling

1шт.

39

187834C1

ANGLE

BRACKET - clamp retaining

1шт.

40

49838

CLAMP

- retaining

1шт.

41

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

1шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
