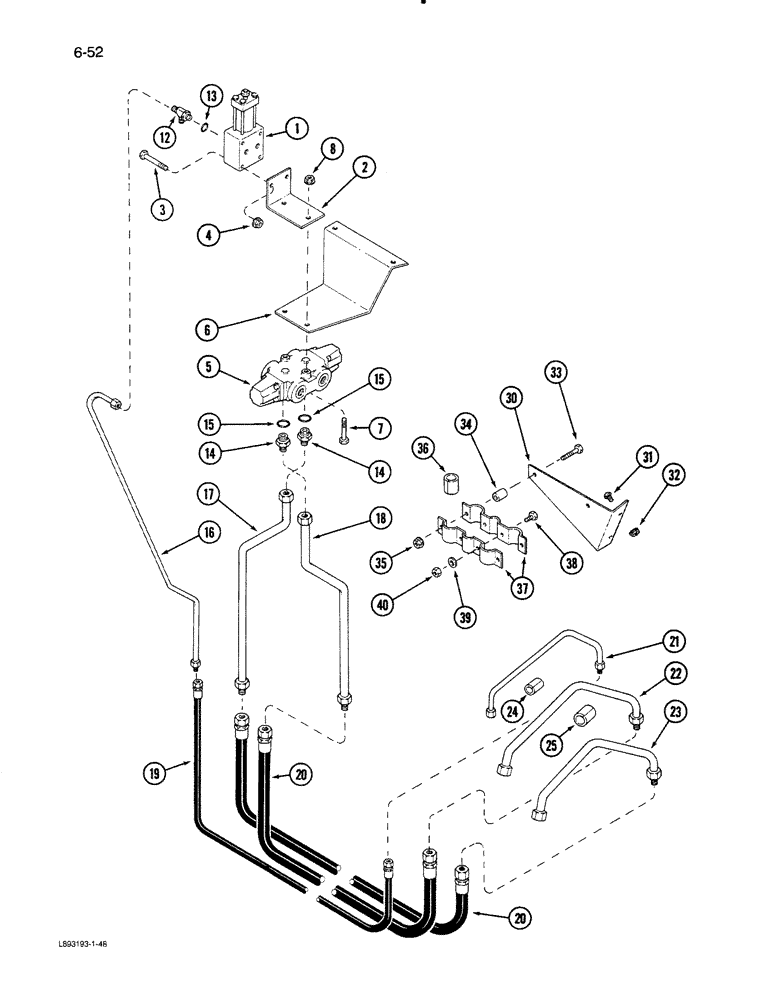

Запчасти Case IH 1670 (6-52) - REAR WHEEL DRIVE, DRIVE VALVE SYSTEM (03) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - rear brake (See Figure 7-10)

1шт.

2

1304922C1

ANGLE

BRACKET - valve mounting

1шт.

3

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

5

1255430C92

VALVE

ASSEMBLY - drive, Includes kit

1шт.

1255431C2

SEAL KIT

- seal repair

1шт.

6

1301426C1

SUPPORT

- drive valve mounting

1шт.

7

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

12

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, 1-5/16 flared x 1-1/16 inch O-ring boss

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

16

1304875C1

HYD TUBE

TUBE - drain

1шт.

17

1304862C1

TUBE ASSY.,1" OD, 24.95, 6" Length

TUBE - drive forward

1шт.

18

1304863C1

TUBE ASSY.

TUBE - drive reverse

1шт.

19

1301966C2

HYDRAULIC HOSE

HOSE - drain

1шт.

20

1304281C2

HOSE

- drive pressure

2шт.

21

1304874C1

TUBE,0.5" OD, 14.5, 5.1" Length

- drain

1шт.

22

1304864C1

HYD TUBE,1" OD, 19, 7" Length

TUBE - drive forward pressure

1шт.

23

1304865C1

HYD TUBE,1" OD, 17.5, 7" Length

TUBE - drive reverse pressure

1шт.

24

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

1шт.

25

187935C1

STRIP

- pressure tube clamp

1шт.

30

1304623C1

SUPPORT

BRACKET - support

1шт.

31

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

32

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

2шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

36

187935C1

STRIP

- pressure tube clamp

2шт.

37

187934C1

CLAMP

- tube retaining

2шт.

38

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
