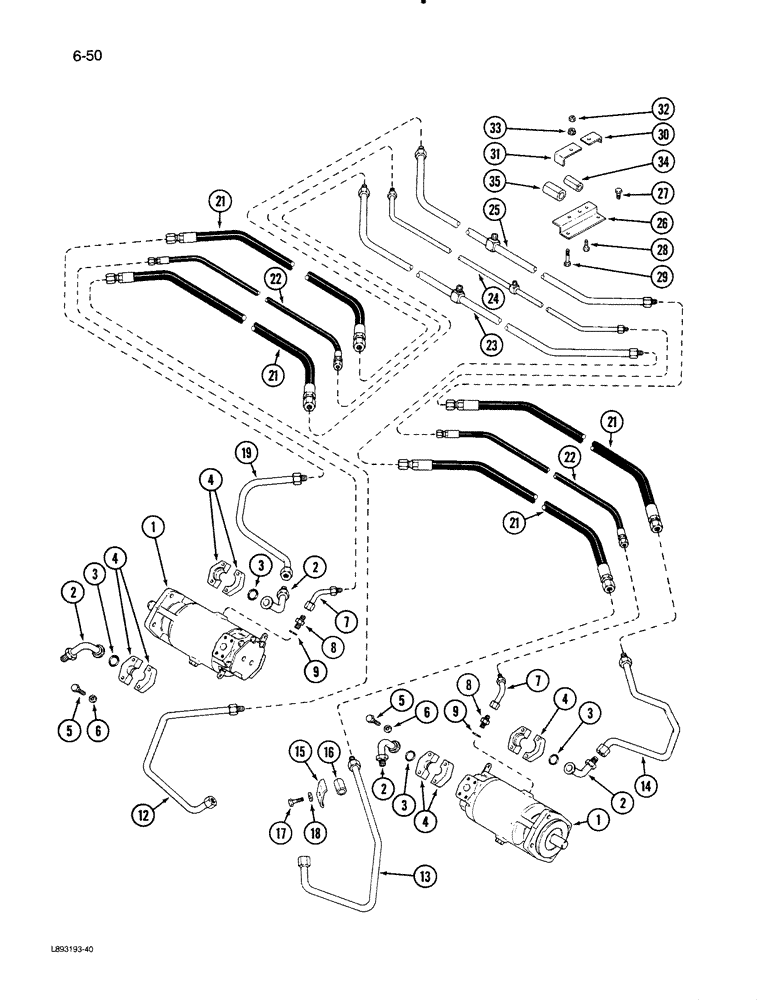

Запчасти Case IH 1670 (6-50) - REAR WHEEL DRIVE, DRIVE MOTOR SYSTEM (03) - POWER TRAIN

1

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-56)

2шт.

2

1304629C2

ELBOW

TUBE - 37 degree elbow

4шт.

3

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

4шт.

4

877949C2

CLAMP

FLANGE - split clamp retaining

8шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

16шт.

6

492-11038

LOCK WASHER,3/8"

16шт.

7

1304872C1

HYD TUBE,0.5" OD, 3.56, 1.2" Length

TUBE - motor drain

2шт.

8

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 3/4-16 flare x 1-1/16-12 inch thread

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

12

1304877C1

HYD TUBE

TUBE - drive motor

1шт.

13

1304876C1

HYD TUBE

TUBE - drive motor

1шт.

14

1304878C1

HYD TUBE

TUBE - drive motor

1шт.

15

165601C1

CLAMP

- motor drive tube retaining

1шт.

16

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - cover, drive tube

1шт.

17

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

1304879C1

TUBE ASSY.

TUBE - drive motor

1шт.

21

1304283C3

HOSE ASSY.,19.05mm ID x 1016mm L, SAE 100R10

HOSE ASSY, , CLASS 12, Drive Motor Pressure 0.75" ID x 40.00", SAE 100R10

4шт.

22

1310709C1

HOSE

ASSEMBLY - 3/8 x 45 inch

2шт.

23

1304881C1

HYD TUBE,1" OD, 1447.8, 184.1 mm Length

TUBE - drive forward pressure

1шт.

24

1304873C1

HYD TUBE,0.5" OD, 48.3, 3.34" Length

TUBE - drain

1шт.

25

1304882C1

HYD TUBE,1" OD, 1518.9, 174 mm Length

TUBE - drive reverse pressure

1шт.

26

1304493C1

SUPPORT

BRACKET - tube support

1шт.

27

172482

SCREW,Hex, 3/8" - 16 x 3/4"

BOLT - hex tapping, 3/8 NC x 3/4 inch

2шт.

28

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

29

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

30

1304633C1

SUPPORT

CLAMP - tube retaining

1шт.

31

1304634C1

SUPPORT

CLAMP - tube retaining

1шт.

32

27311R1

NUT

- hex, 5/16 inch NC

1шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

34

163491C1

RUBBER INSULATOR

SLEEVE - protective, tube clamp, 1/2 inch ID

1шт.

35

187935C1

STRIP

- pressure tube clamp

1шт.
