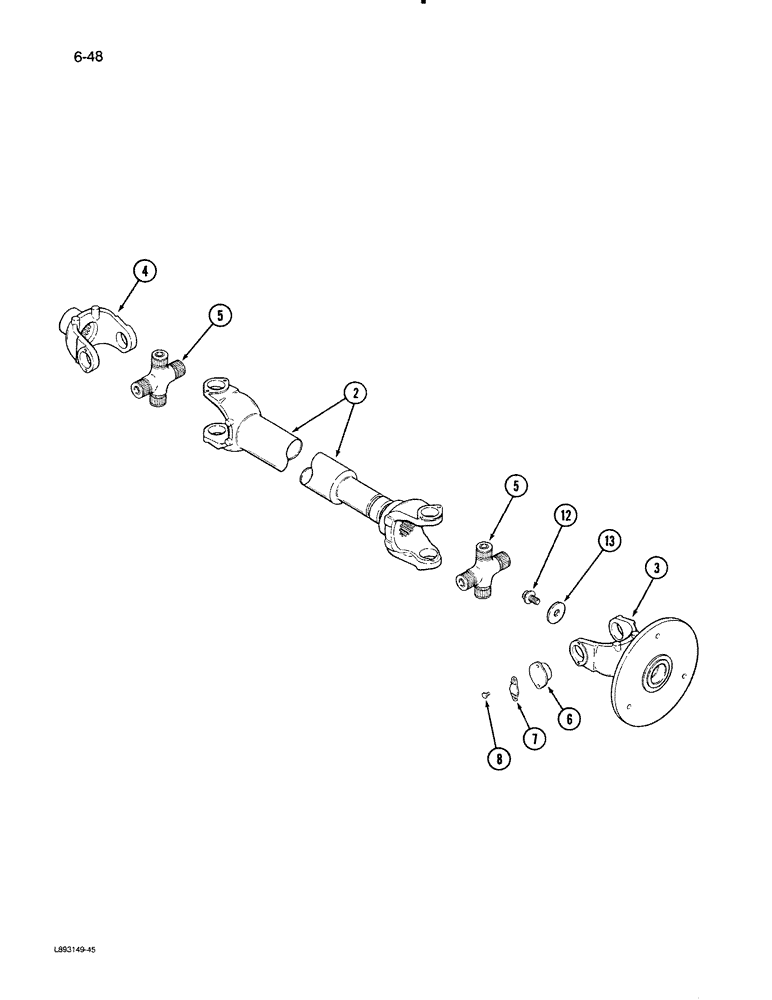

Запчасти Case IH 1670 (6-48) - MAIN DRIVE SHAFT (03) - POWER TRAIN

184142C91

DRIVE SHAFT

SHAFT - main drive, Includes: Ref. 2 - 8

2шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - drive (Order 184142C91)

1шт.

3

184115C1

YOKE

- drive shaft, flanged

1шт.

4

184126C1

YOKE

- drive shaft, splined

1шт.

5

184143C1

U-JOINT SPIDER

CROSS - drive shaft, Includes: Ref. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

COVER - drive shaft cross

2шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - cross cover

2шт.

8

NSS

NOT SOLD SEPARAT

BOLT - cover retaining

4шт.

12

184154C1

BOLT

- retaining

2шт.

13

184141C1

WASHER

- bolt retaining

2шт.
