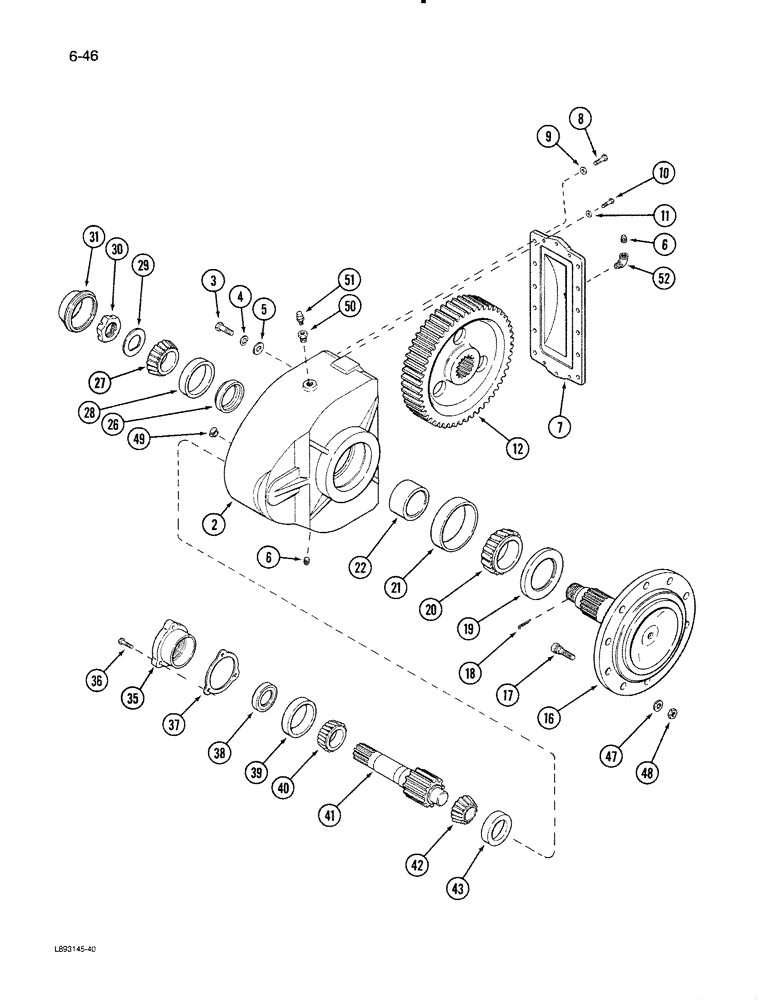

Запчасти Case IH 1670 (6-46) - FINAL DRIVE (03) - POWER TRAIN

1315500C92

DRIVE

ASSEMBLY - final, Includes: Ref. 2 - 43

2шт.

2

401901R3

HOUSING

- final drive

1шт.

3

113-2710

BOLT,Hex, 3/4" - 10 x 2", Gr 8

- hex, 3/4 NC x 2 inch, Grade 8

5шт.

3

113-739

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, Grade 8

8шт.

3

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

2шт.

4

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

5

25712R1

WASHER

- flat, hardened 13/16 inch

2шт.

6

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - pipe, 3/4 inch PT

2шт.

7

403894R2

COVER ASSY

COVER - housing

1шт.

8

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

9

26273R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch

12шт.

10

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

6шт.

11

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 5/64 inch

6шт.

12

130885C1

GEAR

- drive, 66 tooth

1шт.

16

1315484C91

SHAFT

ASSEMBLY - final drive

1шт.

17

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel

10шт.

18

17233R1

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

19

401905R91

OIL SEAL,98.93mm ID x 152.58mm OD x 15.88mm Thk

- outer bearing

1шт.

283445C91

BEARING ASSY,85.03mm ID x 150.09mm OD x 44.4.5mm W

ASSEMBLY - outer, Includes: Ref. 20 - 21

1шт.

20

NSS

NOT SOLD SEPARAT

CONE - bearing, outer

1шт.

21

NSS

NOT SOLD SEPARAT

CUP - bearing, outer

1шт.

22

130809C1

SPACER

- gear, outer

1шт.

26

130808C1

SPACER

- gear

1шт.

66116R91

BEARING ASSY,66.67mm ID x 112.71mm OD x 30.16mm W

ASSEMBLY - inner, Includes: Ref. 27 - 28

1шт.

27

NSS

NOT SOLD SEPARAT

CONE - bearing, inner

1шт.

28

NSS

NOT SOLD SEPARAT

CUP - bearing, inner

1шт.

29

403896R1

WASHER

WASHER - final drive

1шт.

30

147030R1

SLOTTED NUT

- shaft retaining

1шт.

31

403895R1

COVER

- main shaft

1шт.

35

130886C1

CAGE

- inner bearing

1шт.

36

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

3шт.

37

401915R1

SHIM

- pinion inncr bearing, 0.003 inch

1шт.

37

401916R1

SHIM

- pinion inner bearing, 0.005 inch

1шт.

37

401917R1

SHIM

- pinion inner bearing, 0.007 inch

1шт.

37

184033C1

SHIM

- pinion inner bearing, 0.030 inch

1шт.

38

196452C1

OIL SEAL

- cage

1шт.

39

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

CUP - bearing, inner 4-1/8 inch ID

1шт.

40

196454C91

BEARING ASSY,57.15mm ID x 30.96mm W

CONE - bearing, inner 2-1/4 inch ID, Includes: Ref. 41 - 43

1шт.

41

184104C1

SHAFT

- pinion, 13 tooth

1шт.

42

401911R91

BEARING ASSY,44.45mm ID x 31.75mm W

CONE - bearing outer, pinion shaft 1-3/4 inch ID

1шт.

43

61012R1

BEARING, CUP,93.66mm OD x 25.4mm W

CUP - bearing, outer, 3-11/16 inch OD

1шт.

47

25548R1

WASHER

- flat, hardened, 13/16 x 1-1/2 x 7/32 inch

20шт.

48

25632R1

NUT,3/4"-16, G8

- hex, 3/4 inch NF, Grade 8

20шт.

49

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- drive housing, split tapered

1шт.

50

221-90

REDUCER,3/4" NPT x 1/8" NPT

ADAPTER - 3/4 male x 1/8 inch female PT

2шт.

51

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING - housing breather

2шт.

52

141621

ELBOW,90 Degree, 3/4" NPT Street

- 90 degree, 3/4 male x 3/4 inch PT female

2шт.
