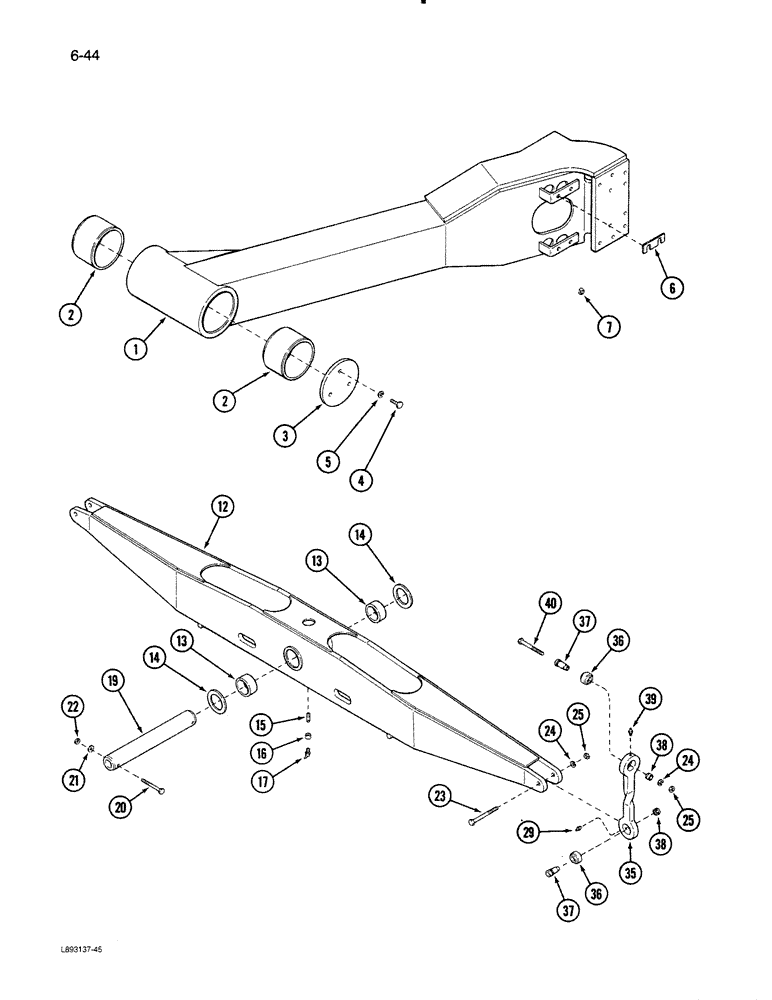

Запчасти Case IH 1670 (6-44) - DRIVE AXLE (03) - POWER TRAIN

1

1304137C91

SUPPORT

ARM - axle radial, left (Includes Ref. 2)

1шт.

1

1304138C91

SUPPORT

ARM - axle radial, right, Includes: Ref. 2

1шт.

2

1304130C1

BUSHING

- radial arm, nylon

2шт.

3

1304128C1

RETAINER

CAP - radial arm

2шт.

4

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

6шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

6

1304289C1

SHIM

- drive axle, 0.06 inch

1шт.

6

1304288C1

SHIM

- drive axle, 0.12 inch

1шт.

7

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

- axle, split tapered

4шт.

12

1304133C91

BEAM ASSY.

AXLE - drive (Used with stone retarder) (Includes Ref. 13)

1шт.

12

1314095C91

SUPPORT

AXLE - drive (Used with rock trap), Includes: Ref. 13

1шт.

13

174122H1

BUSHING

- drive axle

2шт.

14

1304156C1

THRUST WASHER

- thrust

2шт.

15

114794

NIPPLE,Nipple, 1/8" NPT x 2"

- 1/8 PT x 2 inch

1шт.

16

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch

1шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree short, 1/8 NP

1шт.

19

1304140C1

TUBE

PIN - pivot

1шт.

20

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

21

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

- hardened flat, 21/32 x 1-1/2 x 3/16 inch

2шт.

22

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

23

28311R1

BOLT,Hex, 7/8" - 14 x 7", Gr 8

- hex, 7/8 NC x 7 inch, Grade 8

2шт.

24

131168

LOCK WASHER,7/8"

7/8"

2шт.

25

26083R1

NUT,7/8"-14, G8

- hex, 7/8 inch NC, Grade 8

2шт.

35

1304166C92

ROD ASSY.

LINK - connecting, Includes: Ref. 36 - 39

2шт.

36

1304403C1

BEARING - self aligning

2шт.

37

1330031C1

BUSHING

- connecting link

2шт.

38

1330030C1

RETAINER

- connecting link

2шт.

39

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

40

28310R1

BOLT,Hex, 7/8" - 14 x 6", Gr 8

- hex, 7/8 NC x 6 inch, Grade 8

2шт.
