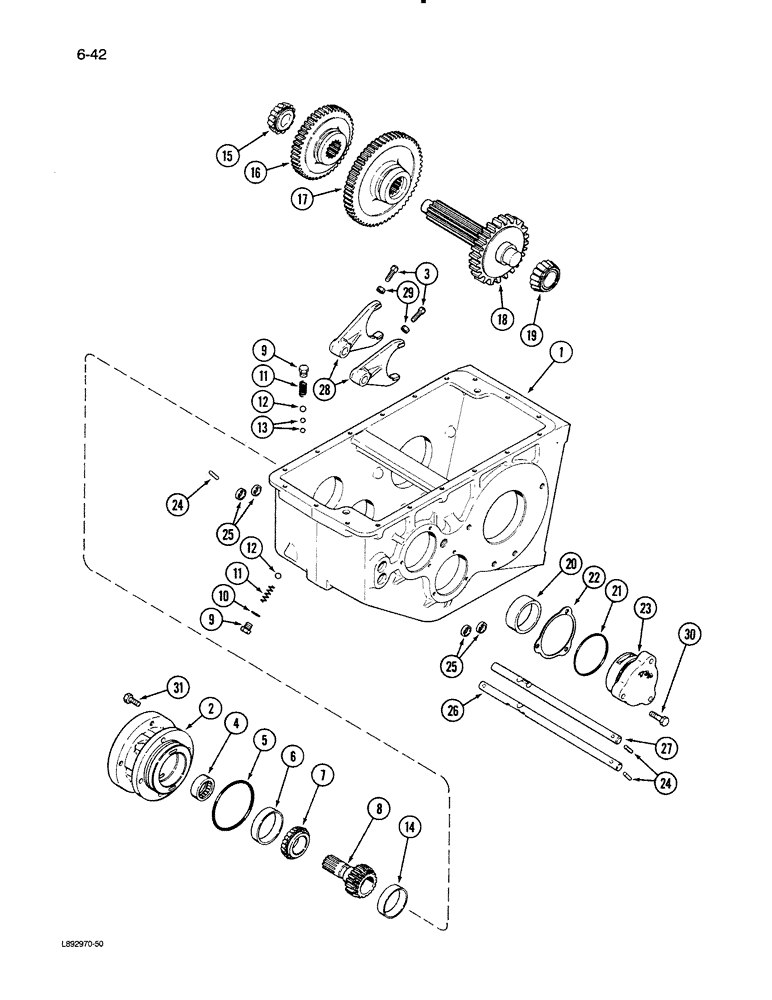

Запчасти Case IH 1670 (6-42) - TRANSMISSION INPUT SHAFT GEARS AND SHIFTER RAILS (03) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - transmission (See Figure 6-38)

1шт.

2

180944C1

HOUSING ASSY.

HOUSING - input shaft

1шт.

3

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - shifter fork set

2шт.

4

358035R91

BEARING, ROLLER, CYL,25mm ID x 44.82mm OD x 20.64mm W

- input pinion shaft

1шт.

5

22291R1

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

- 4-3/8 x 4-3/4 x 3/16 inch

1шт.

6

ST987

BEARING CUP

CUP - input shaft bearing, 3-1/4 inch OD

1шт.

7

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - input shaft bearing, 1-25/32 inch ID

1шт.

8

402846R2

SHAFT

- input pinion, 20 tooth

1шт.

401890R1 Shaft (Mating part is 1980137C1 Figure 6-26 Internal Spline)

1шт.

9

9410358

PLUG

- straight thread o-ring boss, 3/8 inch

2шт.

11

64600C1

SPRING

- shifter detent

2шт.

12

17016R1

BALL,1/2" Dia

Shifter detent 1/2" Dia

2шт.

13

17014R1

BALL

- shifter detent, 7/16 inch diameter

2шт.

14

50213V

BEARING CUP

CUP - drive shaft bearing, left, 2-3/4 inch OD

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

CONE - drive shaft bearing, left, 1-5/16 inch ID

1шт.

16

530700R1

GEAR

- second and third sliding, 26 and 46 tooth

1шт.

17

401889R1

GEAR

- first sliding, 5/8 tooth

1шт.

18

401886R3

SHAFT ASSY.

SHAFT - gear change, 36 tooth

1шт.

18

406607R3

SHAFT

- gear change, 32 tooth

1шт.

19

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

CONE - drive shaft bearing, right, 2-7/8 inch OD

1шт.

20

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

CUP - drive shaft bearing, right, 1-9/16 inch ID

1шт.

21

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- 3-3/4 x 4 x 1/8 inch

1шт.

22

401883R1

SHIM

- cap, 0.003 inch

1шт.

22

401884R1

SHIM

- cap, 0.005 inch

1шт.

22

401885R1

SHIM

- cap, 0.007 inch

1шт.

22

184195C1

SHIM

- cap, 0.030 inch

1шт.

23

130791C1

BEARING CAP,65.5 mm ID x 101.51 mm OD x 58.7 mm

- bearing retainer

1шт.

24

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

25

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- shifter rail oil

4шт.

26

121658C4

SHAFT

- second and third gear shifter

1шт.

27

121659C2

SHAFT

- first gear shifter

1шт.

28

401897R2

FORK

- gear shifter

1шт.

29

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NF

2шт.

30

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.
