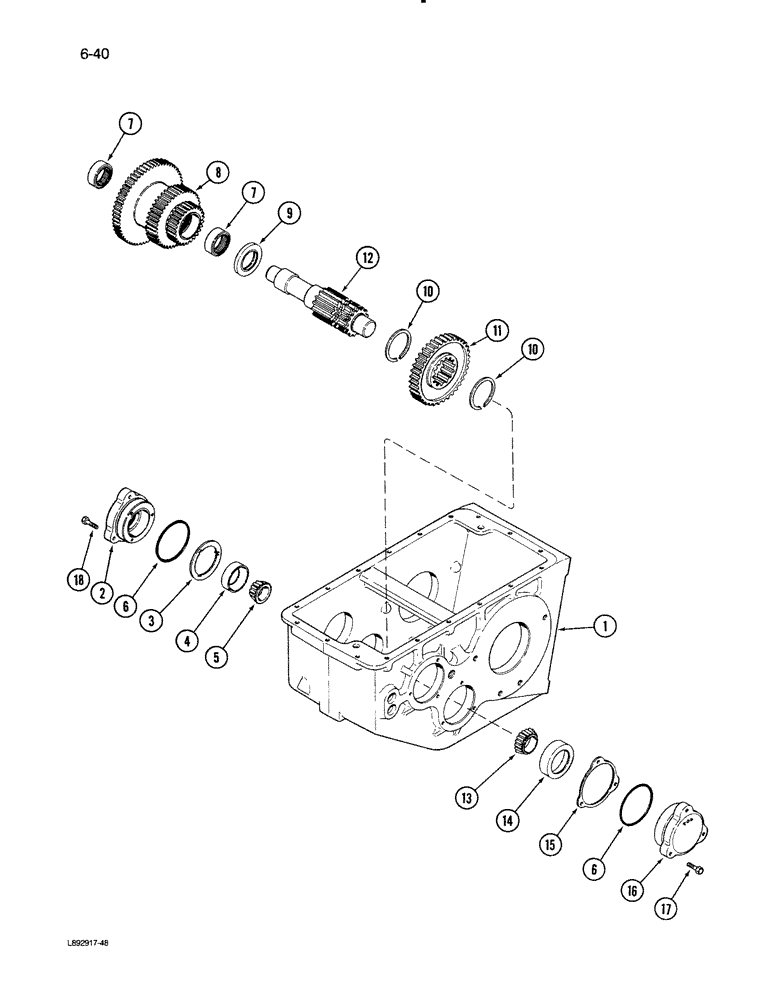

Запчасти Case IH 1670 (6-40) - TRANSMISSION DIFFERENTIAL, PINION SHAFT AND GEARS (03) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - transmission (See Figure 6-38)

1шт.

2

188893C1

BEARING COVER,59.75 mm ID x 101.51 mm OD x 47.5 mm

HOUSING - bearing, left

1шт.

3

530704R1

THRUST WASHER

WASHER - thrust

2шт.

4

131312C1

BEARING CUP

CUP - pinion shaft, left bearing

1шт.

5

871244R1

ROLLER BEARING

CONE - pinion shaft, left bearing

1шт.

6

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- 3-3/4 x 4 inch

1шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - spool gear

2шт.

8

530699R1

PINION

GEAR - spool, 59, 39 and 27 tooth

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

- spool gear

1шт.

10

196693H1

RING

- change gear snap

2шт.

11

401881R1

GEAR

- change driven, 37 tooth

1шт.

11

406606R1

GEAR

- change driven, 41 tooth

1шт.

12

401878R1

SHAFT

- pinion, 14 tooth

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CONE - pinion shaft, right bearing

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP - pinion shaft, right bearing

1шт.

15

401883R1

SHIM

- bearing, 0.003 inch

1шт.

15

401884R1

SHIM

- bearing, 0.005 inch

1шт.

15

401885R1

SHIM

- bearing, 0.007 inch

1шт.

15

184195C1

SHIM

- bearing, 0.030 inch

1шт.

16

403363R1

BEARING CAP,73.4 mm ID x 101.5 mm OD x 54.1 mm

CAGE - bearing, right

1шт.

17

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

18

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.
