Запчасти Case IH 1670 (6-38) - TRANSMISSION DIFFERENTIAL SHAFT (03) - POWER TRAIN

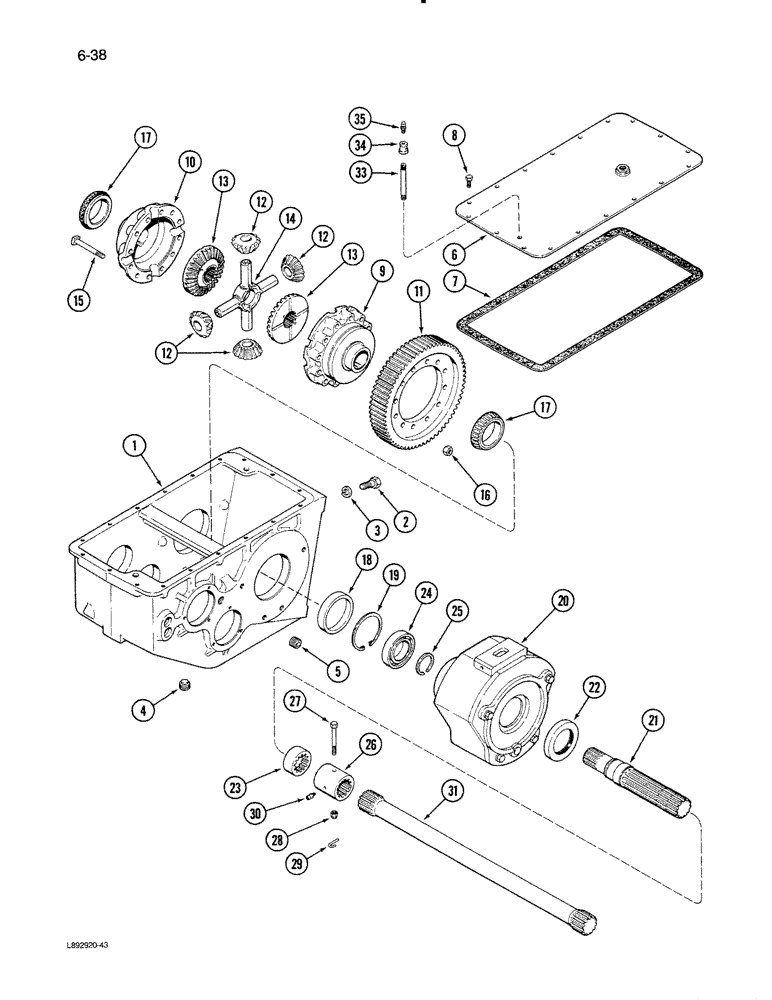

Схема запчастей Case IH 1670 - (6-38) - TRANSMISSION DIFFERENTIAL SHAFT (03) - POWER TRAIN
23
27
35
7
13
17
22
1
13
24
4
26
28
2
30
18
11
29
12
21
31
3
14
20
17
12
25
8
10
6
16
34
33
15
19
9
12
5

Артикул

Название

Примечание

Количество

1

401873R2

HOUSING

- transmission

1шт.

2

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.

3

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

320185C1

PLUG

- magnetic, 3/4 PT (Housing drain)

1шт.

5

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket, 3/4 PT (Housing fill)

1шт.

6

184167C1

COVER ASSY

COVER - housing

1шт.

7

401860R1

GASKET

- housing cover

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

15шт.

404081R1

CASE ASSY.

KIT - differential housing, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - differential, left (Order 404081R1)

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - differential, right (Order 404081R1)

1шт.

11

404085R1

GEAR

- differential driven, 66 tooth

1шт.

12

361061R3

PINION

GEAR - differential pinion, 15 tooth

4шт.

13

404084R1

PINION

GEAR - differential bevel, 28 tooth

2шт.

14

393637R2

DIFF. SPIDER

SPIDER - differential

1шт.

15

404171R1

BOLT,1/4" - 20 x 4"

- differential housing

12шт.

16

381368R1

NUT,Hex, 1/2" - 20, Gr 8

- hex special, 1/2 inch NF

12шт.

17

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

CONE - differential bearing

2шт.

18

ST981

BEARING CONE,112.71mm OD x 19.05mm W

CUP - differential bearing

2шт.

19

A55435

SNAP RING,3.938", Int, #393

Ring, Snap, 3.938", Int, #393

2шт.

20

REF

INSTRUCTION

HOUSING - brake (See Figure 7-2)

2шт.

21

184178C1

SHAFT

- differential

2шт.

1981193C1 Shaft 29 Tooth

1шт.

22

401872R91

SEAL,73.03mm ID x 110.24mm OD x 11.1mm Thk

- brake housing cover

2шт.

23

184214C1

SPLINED COUPLING

SLEEVE - seal wear

2шт.

24

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

BEARING - differential shaft, ball

2шт.

25

358059R1

SNAP RING

RING - bearing snap

2шт.

26

184341C1

SLEEVE

COUPLING - axle

2шт.

27

27653R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, drilled, Grade 8

2шт.

28

654049R1

LOCK NUT

- hex flex lock, 3/8 inch NC

2шт.

29

21864R1

COTTER PIN

- S Type retainer

2шт.

30

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, 1/4 PT

2шт.

31

1309012C1

SHAFT

- final drive, left (Rubber tire)

1шт.

31

1309011C1

SHAFT

- final drive, left crack)

1шт.

31

402725R2

SHAFT

- final drive, right (Rubber tire)

1шт.

31

184222C1

SHAFT

- final drive, right crack)

1шт.

33

221-1114

LUBE NIPPLE,1/8" NPT x 4 1/2"

NIPPLE, LUBE, , Extension - pipe 1/8" NPT x 4 1/2"

1шт.

34

144098

REDUCER

COUPLING - reducing, 1/4 PT to 1/8 PT

1шт.

35

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

FITTING - housing breather

1шт.

1968235C1

DIFFERENTIAL

ASSEMBLY - transmission, complete (Includes Ref. 9, 10, and 12 - 18)

1шт.

Выбрано товаров: 40
