Запчасти Case IH 1670 (6-32) - HYDROSTATIC MOTOR, MOTOR CONTROL VALVE (03) - POWER TRAIN

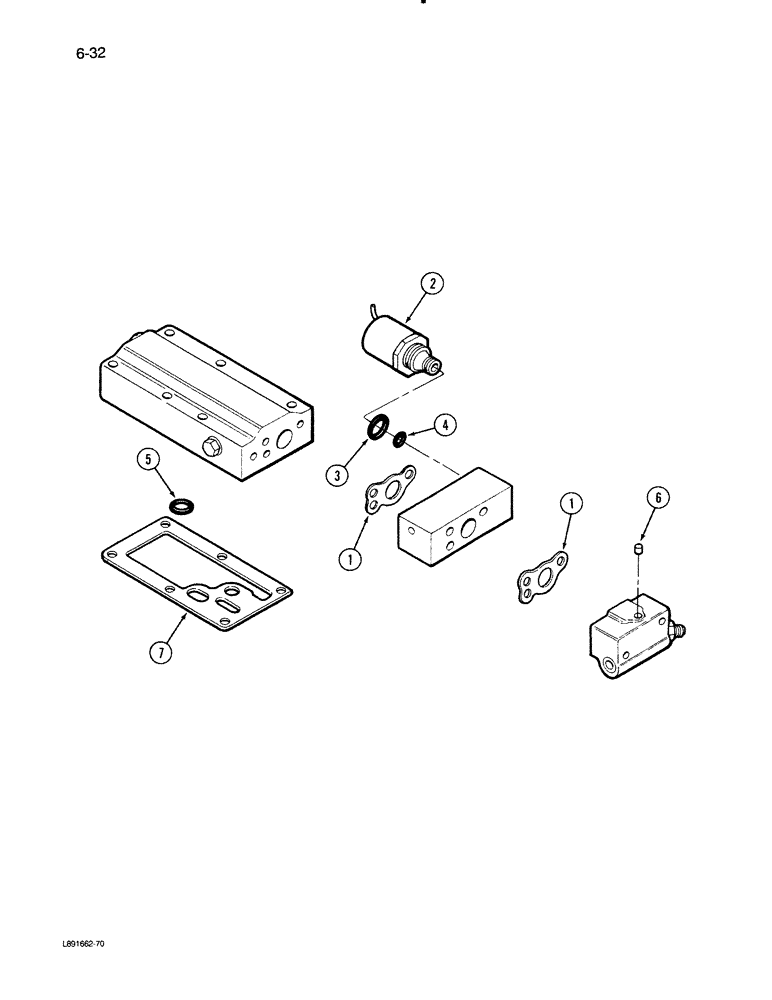

Схема запчастей Case IH 1670 - (6-32) - HYDROSTATIC MOTOR, MOTOR CONTROL VALVE (03) - POWER TRAIN
6
5
7
3
1
7
4
2

Артикул

Название

Примечание

Количество

1255068C91

KIT

VALVE ASSEMBLY - motor control, Includes: Ref. 1 - 7

1шт.

Used with quanitity of one block hose, see Figure 6-30

1шт.

145336C92

VALVE

ASSEMBLY - motor control, Includes: Ref. 1 - 7

1шт.

Used with quanitity of two block hose, see Figure 6-30

1шт.

1

1272954C1

GASKET,0.43mm Thk

- control block

2шт.

Part of control block gasket kit P/N 92649C1

1шт.

2

145338C2

SOLENOID

- control valve, Includes: Ref. 3 and 4

1шт.

298986A1 - nut - 1/2 - 20 NF - 1/4 thick

1шт.

298985A1 - solenoid - 2 - speed

1шт.

255834A1 - valve cartridge

1шт.

Parts in this can be ordered separately

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 3/4" OD tube

1шт.

4

355967R1

O-RING,0.364" ID x 0.003" Width

- 1/2 x 3/8 x 1/16 inch

1шт.

5

92647C1

O-RING,7.52mm ID x 0.574" OD x 3.53mm

- orifice retainer

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve body (Order 92649C91)

1шт.

Part of control block gasket kit P/N 92649C1

1шт.

7

145337C1

GASKET

- control valve

1шт.

92649C1

KIT

- control valve body plug, Includes: Ref. 1 and 6

1шт.

Выбрано товаров: 18
