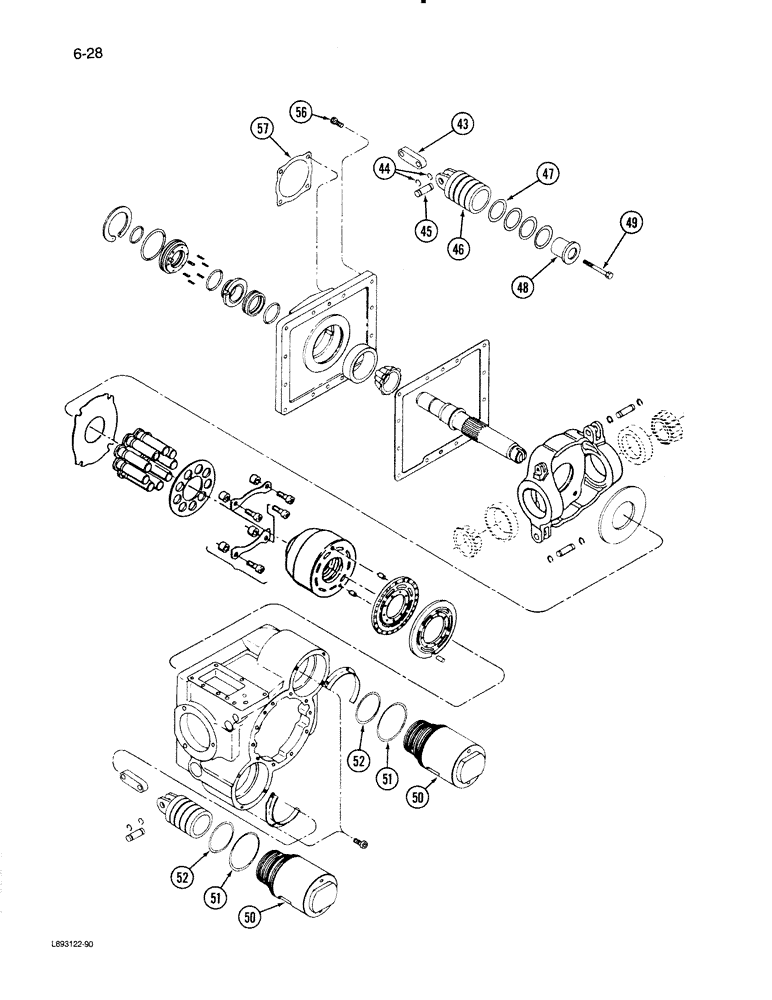

Запчасти Case IH 1670 (6-28) - HYDROSTATIC MOTOR, (CONT) (03) - POWER TRAIN

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, continued, Includes: Ref. 43 - 52, 1 - 39 on Fig. 6-26 and 61 - 90 on Fig. 6-30

1шт.

1255067C1

PISTON

ASSEMBLY - servo, Includes: Ref. 43 - 49

1шт.

43

NSS

NOT SOLD SEPARAT

LINK - piston servo

1шт.

44

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

45

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

46

NSS

NOT SOLD SEPARAT

PISTON - servo

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM - servo piston

4шт.

48

NSS

NOT SOLD SEPARAT

SPACER - servo piston

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - hex, Serial Range: spacer-piston

1шт.

50

142407C1

KIT

SLEEVE - servo

2шт.

51

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

- servo sleeve, 3-3/8 x 3-5/8 x 1/8 inch

2шт.

52

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- trunnion, 3 x 3-1/4 x 1/8 inch

2шт.

56

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

57

166506C1

GASKET,0.81mm Thk

- mounting

1шт.
