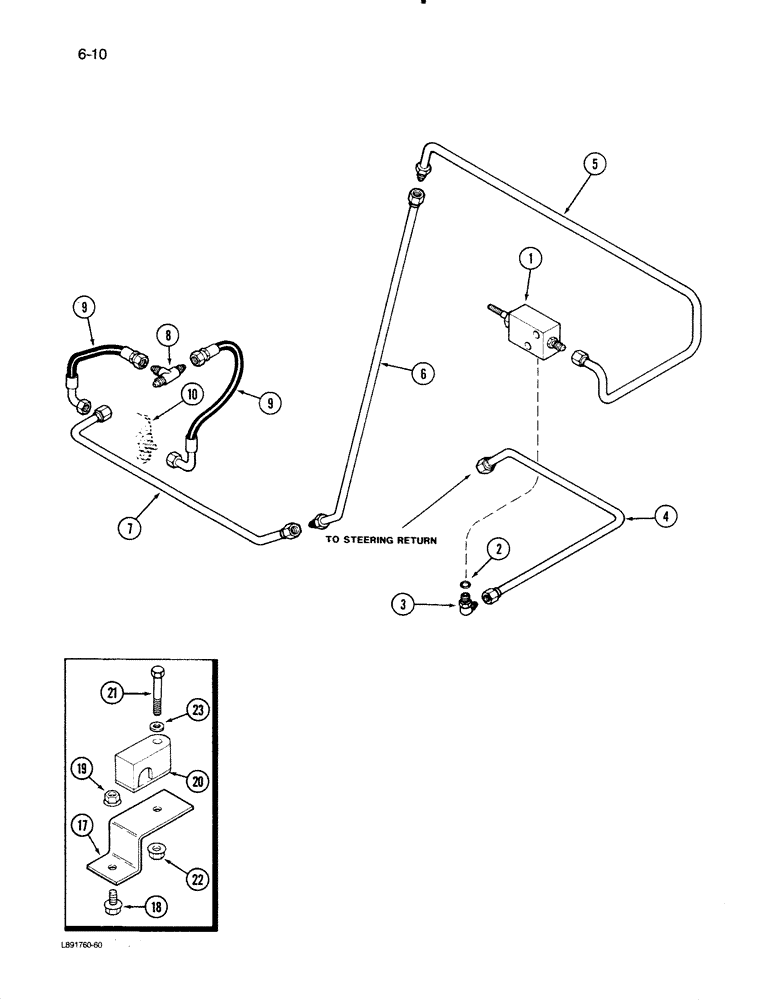

Запчасти Case IH 1670 (6-10) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch (See Figure 6-12)

1шт.

3

164596C1

ELBOW

- 90 degree, 9/16-18 inch thread

1шт.

4

1957385C1

TUBE ASSY.

TUBE - Foot-N-Inch valve return

1шт.

5

1321272C2

HYD TUBE

TUBE - Foot-N-Inch, upper

1шт.

6

1327829C1

HYD TUBE

TUBE - Foot-N-Inch, center

1шт.

7

1304918C1

HYD TUBE

TUBE - Foot-N-Inch, lower

1шт.

8

9402979

TEE,7/16"-20, 37 Degree

- 7/16-20 thread

1шт.

9

175760C1

HOSE ASSY.

HOSE - foot-n-inch, 10 inch

2шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-26)

1шт.

17

196517C1

SUPPORT TUBE

SUPPORT - Foot-N-Inch tubes

1шт.

18

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange lock, 3/8 NC x 3/4 inch

1шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

20

183820C1

CLAMP

- Foot-N-Inch tube

1шт.

21

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

23

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

1шт.

2

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 inch OD tube

1шт.
