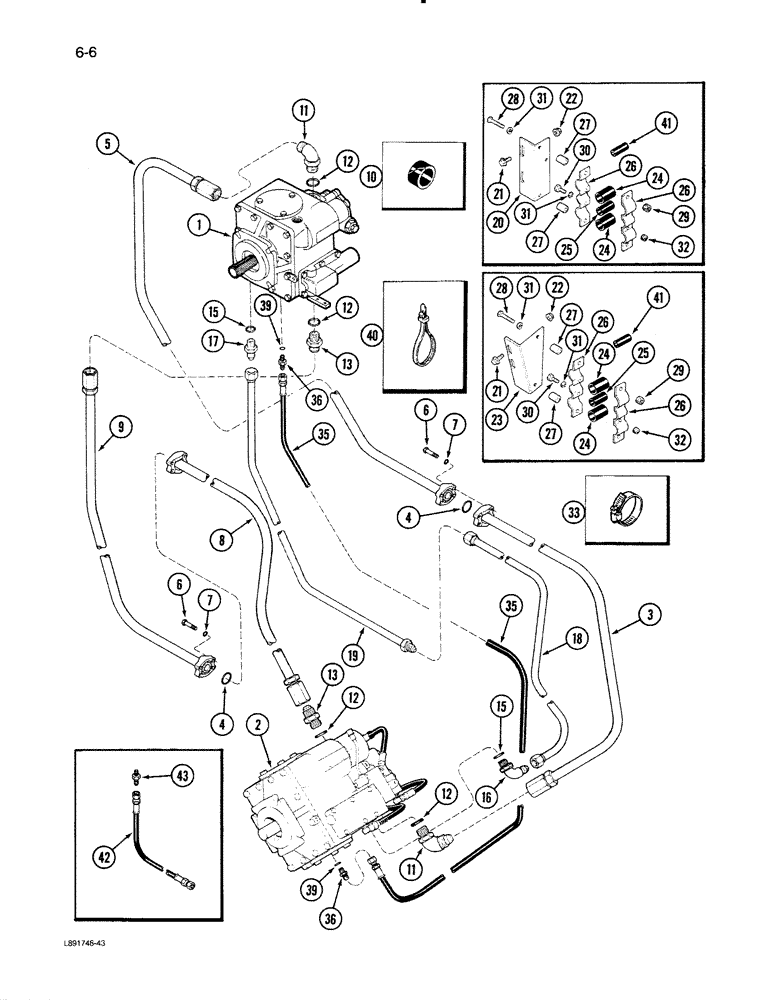

Запчасти Case IH 1670 (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-16)

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-26)

1шт.

3

1301351C2

TUBE

- drive reverse lower pressure

1шт.

4

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

2шт.

5

1301423C2

TUBE

- drive reverse upper pressure

1шт.

6

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

8шт.

7

492-11038

LOCK WASHER,3/8"

8шт.

8

1301352C2

TUBE

- drive forward lower pressure

1шт.

9

1301422C2

TUBE

- drive forward upper pressure

1шт.

10

165722C1

SLEEVE

- tube nut rubber

2шт.

11

595408R1

90 ELBOW

- 90 degree, 1-5/16-12 x 1 inch OD tube

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1/8 inch

4шт.

13

163915C1

FITTING

CONNECTOR - 1-5/16-12

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D

2шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, 3/4 tube 1-1/16-12 inch thread

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- short, 3/4 tube 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

18

1304917C1

HYD TUBE

TUBE - bleed lower

1шт.

19

1304937C1

HYD TUBE

TUBE - upper bleed

1шт.

20

187936C2

BRACKET

ANGLE - tube rear support

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

23

187937C2

BRACKET

ANGLE - tube front support

1шт.

24

187935C1

STRIP

- pressure tube clamp

4шт.

25

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- bleed tube clamp

2шт.

26

187934C1

CLAMP

- tube

4шт.

27

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

4шт.

28

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

32

9635082

NUT,5/16" - 18, Gr 5

4шт.

33

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

35

1330276C1

TUBE

HOSE ASSEMBLY - charge pressure (Replaces 1282494C1 hose and 1324397C2 tube)

1шт.

36

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - 1/4 tube x 7/16-20 inch thread

2шт.

39

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

40

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, nylon

1шт.

41

163492C1

RUBBER INSULATOR

STRIP - pressure tube

1шт.

42

1304984C1

HOSE ASSY.,0.25" ID x 24.00", SAE 100R2

HOSE ASSY, , Type A, Pressure Switch to Motor 0.25" ID x 24.00", SAE 100R2

1шт.

43

1304974C1

SUPPORT

CONNECTOR - pressure switch

1шт.
