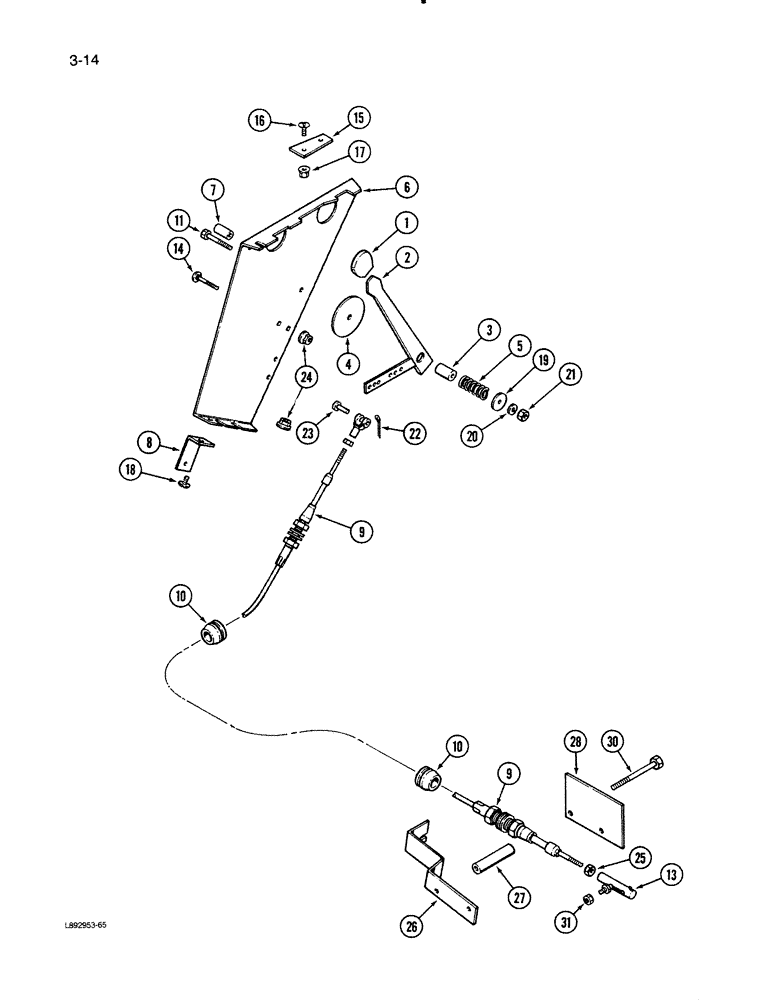

Запчасти Case IH 1670 (3-14) - THROTTLE CONTROLS (02) - FUEL SYSTEM

1

1259760C1

BALL KNOB

KNOB - throttle lever

1шт.

2

1301183C94

LEVER ASSY.

LEVER ASSEMBLY - control, throttle

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

- 5/8 x 1-1/4 inch tube

1шт.

4

941133C1

WASHER

- throttle lever

1шт.

5

P022

CARTON BOX

SPRING - throttle control lever

1шт.

6

1979483C1

SUPPORT ASSY.

SUPPORT - throttle control

1шт.

7

SA10227

SPACER,3/8" Pipe x 1 1/8"

- 3/8 x 1-1/8 inch pipe

2шт.

8

1301242C1

BRACKET

ANGLE - throttle support

1шт.

9

1329389C1

CABLE

ASSEMBLY - throttle

1шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- throttle cable grain tank

2шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

117824

YOKE

- clevis, No.10 NF

1шт.

13

84728C1

JOINT

ASSEMBLY - ball

1шт.

14

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 1-3/4 inch

2шт.

15

1329861C1

PLATE

- throttle control

1шт.

16

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

3шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

2шт.

19

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

23

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

1шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

25

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

26

1270684C1

SUPPORT

- throttle cable rear bracket

1шт.

27

580883R1

SPACER,3/8" Pipe x 3 1/4"

- 1/2 x 3-1/4 inch

2шт.

28

1265673C1

SHIELD

SUPPORT - throttle cable rear shield

1шт.

30

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

31

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.
