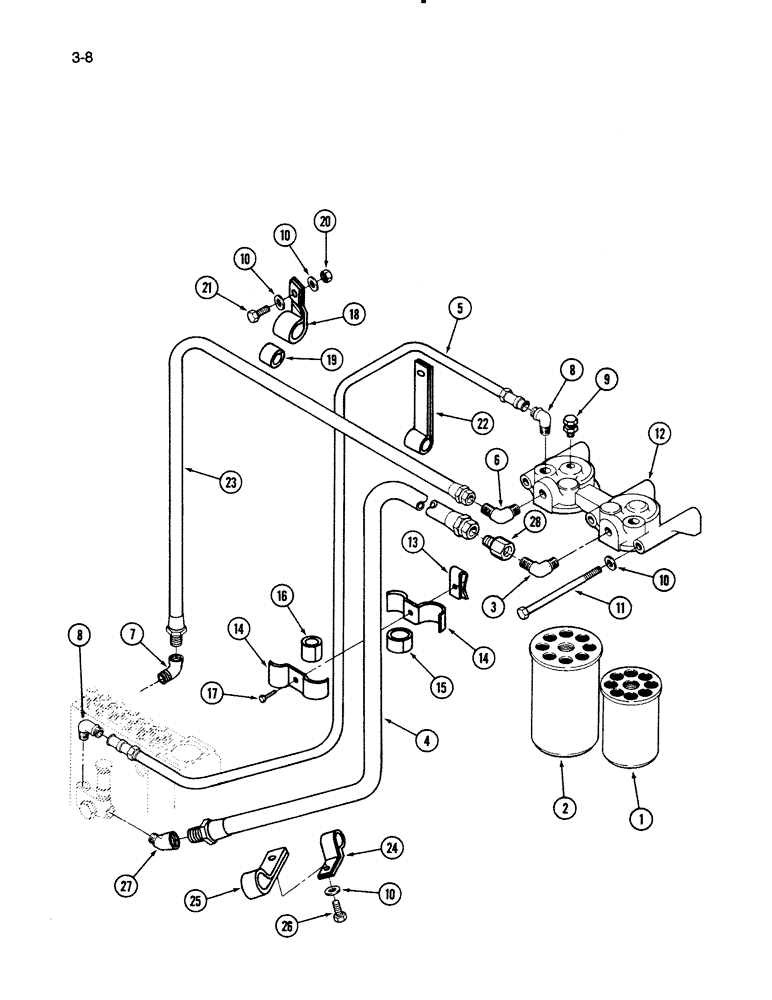

Запчасти Case IH 1670 (3-08) - FUEL FILTER SYSTEM, DTI466C ENGINE (02) - FUEL SYSTEM

1

A184773

SEPARATOR

FILTER - primary fuel

1шт.

2

A184774

FUEL FILTER

FILTER - secondary fuel

1шт.

3

222-774

90 ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 3/8" NPT

- 90 degree flared, 1/4 inch

1шт.

4

1802982C1

HOSE

ASSEMBLY - inlet

1шт.

5

1806022C92

TUBE,0.375" OD, 20.5, 11.8" Length

ASSEMBLY - supply pump to final filter

1шт.

6

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree flared

1шт.

7

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree street, 1/4 inch PT

1шт.

8

222-4047

ELBOW

- 90 degree male, 1/4 inch

2шт.

9

39677DA

VALVE

- bleeder

1шт.

10

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened, 3/8 inch

6шт.

11

25784R1

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 8

- hex, 3/8 NC x 4-1/4 inch

3шт.

12

1809590C91

HEAD ASSY.

HEADER ASSEMBLY - fuel filter

1шт.

13

684548C1

NUT

- spring, 1/4 inch

1шт.

14

684899C1

CLAMP

- hose

2шт.

15

1806408C1

CUSHION

- 3/4 inch hose

1шт.

16

673171C1

RUBBER BUSHING

GROMMET - 3/8 inch tube

1шт.

17

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, Grade 8

1шт.

18

691144C1

CLAMP

- closed hose

1шт.

19

397483R1

GROMMET

- 5/8 inch hose

1шт.

20

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch, Grade 8

1шт.

21

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

22

1806044C1

CLAMP

- closed

1шт.

23

688190C1

HOSE

ASSEMBLY - final filter to injection pump

1шт.

24

1802981C1

CLAMP

- tube

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed

1шт.

26

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

27

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 45 degree street, 1/4 inch PT

1шт.

28

217-6

ADAPTER,3/8"-18 Fem NPTF x 1/4"-18 NPTF Male

- 3/8 x 1/4 inch

1шт.
