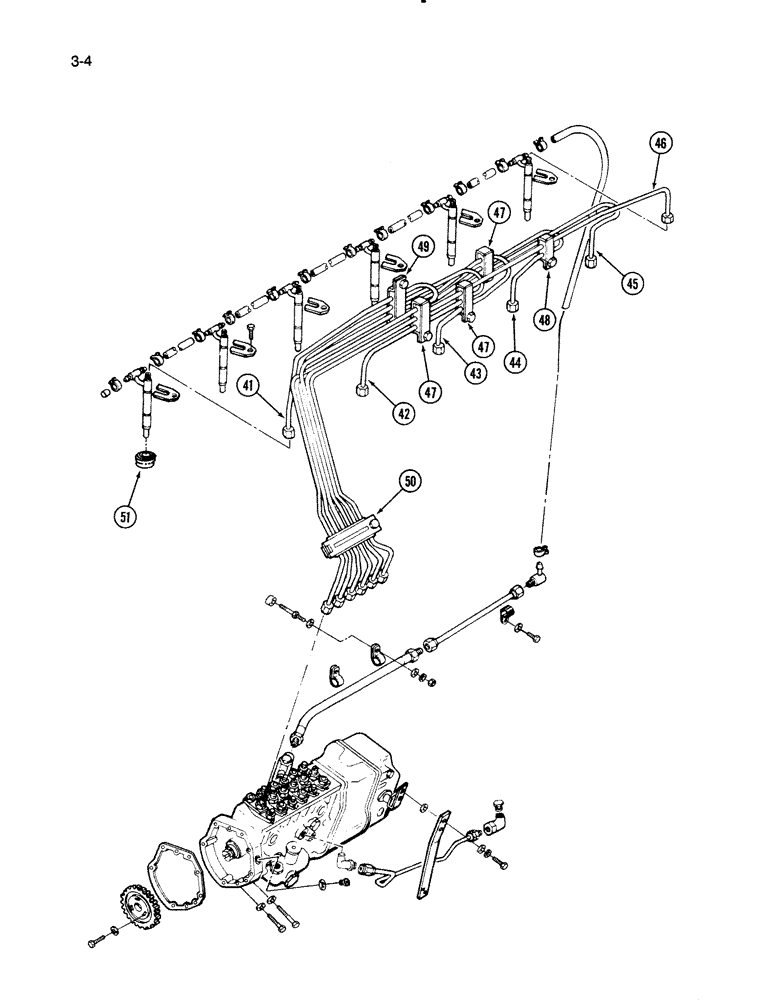

Запчасти Case IH 1670 (3-04) - FUEL INJECTION SYSTEM, DTI466C ENGINE, (CONT) (02) - FUEL SYSTEM

41

1802951C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 1

1шт.

42

1802952C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 2

1шт.

43

1802953C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 3

1шт.

44

1802954C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 4

1шт.

45

1802955C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 5

1шт.

46

1802956C1

FUEL TUBE

TUBE ASSEMBLY - injection, cylinder 6

1шт.

47

1802959C91

CLAMP

ASSEMBLY - injection pipe, 3 tube

3шт.

48

1802796C91

CLAMP

ASSEMBLY - injection pipe, 2 tube

3шт.

49

1802800C91

CLAMP

ASSEMBLY - injection pipe, 5 tube

3шт.

50

1802947C91

CLAMP

ASSEMBLY - injection pipe, 6 tube

3шт.

51

682810C1

RING

GROMMET - injection dust cover

6шт.
