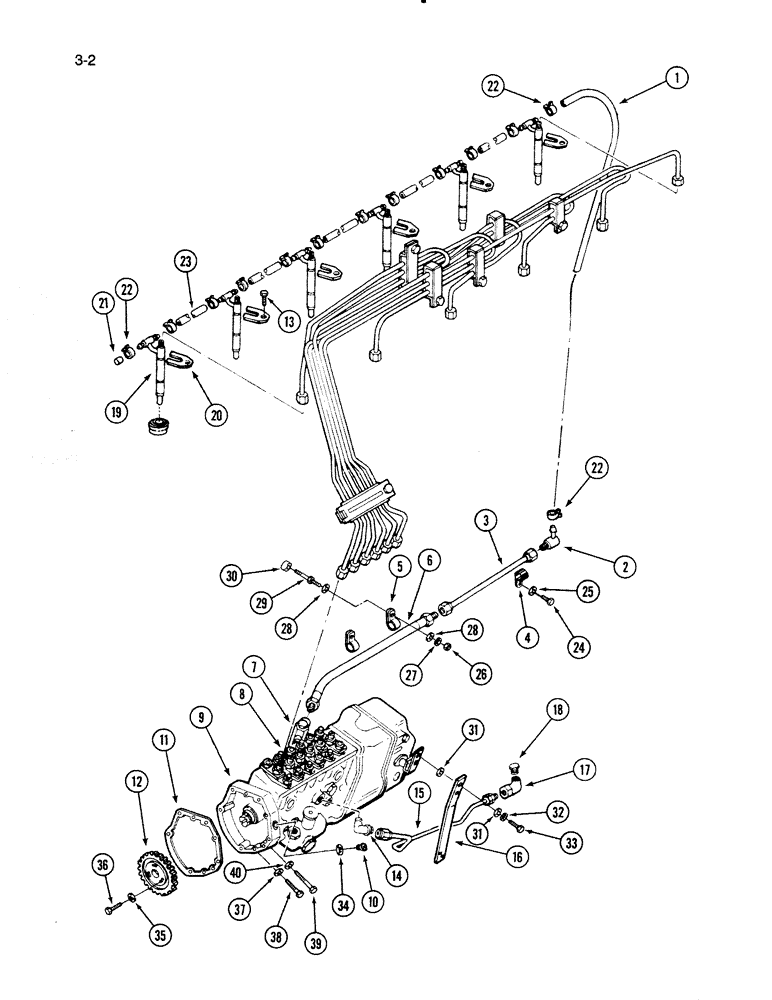

Запчасти Case IH 1670 (3-02) - FUEL INJECTION SYSTEM, DTI466C ENGINE (02) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

HOSE - No. 6 injector to leakoff tube, 10 inch long (Order 680246C1, Serial Range: cut-length)

1шт.

2

673196C1

TEE

- fuel leakoff

1шт.

3

691074C92

TUBE,0.375" OD, 9.7" Length

ASSEMBLY - fuel return

1шт.

4

680116C1

CLIP

- fuel return tube

1шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed

2шт.

6

1806503C1

FUEL HOSE,9.53mm ID x 336.55mm L, SAE 100R3

With 3/64" Diameter Orifice, Fuel Return 0.38" ID x 13.25"

1шт.

7

1809796C1

VALVE

ASSEMBLY - overflow

1шт.

1809797C1

FITTING

- fuel tube

1шт.

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - union, inlet

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

8

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- pipe street, 1/4 inch x 90 degree

1шт.

9

1806319C92

PUMP

ASSEMBLY - injection, new

1шт.

9

1934206C1

REMAN-INJECTION PUMP

1670 CASE IH HILLSIDE COMBINE, ASSEMBLY injection, new

1шт.

9

1934207C1

CORE-INJECTION PUMP

Return Number

1шт.

10

444944

PLUG

- square socket, 3/4-16

1шт.

11

675609C1

GASKET

- injection pump mounting adapter

1шт.

12

1802737C1

GEAR

- injection pump

1шт.

13

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch crab

6шт.

14

319615R1

ELBOW

- 1/8 inch x 90 degree male

1шт.

15

1802773C91

TUBE,0.25" OD

ASSEMBLY - lube oil

1шт.

16

1809564C1

LEVER

- injection pump

1шт.

17

686839C1

ELBOW

- flex - side outlet

1шт.

18

FOR444613

PLUG

- hex head pipe, 1/8 inch

1шт.

19

REF

INSTRUCTION

NOZZLE-HOLDER ASSEMBLY - injection (See Figure 3-6)

6шт.

20

675479C2

CLAMP

CRAB - injection nozz1e

6шт.

21

1802452C1

CAP

- fuel return No. 1 injector

1шт.

22

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining

13шт.

23

NSS

NOT SOLD SEPARAT

HOSE - fuel return injector to injector, 5 inch long (Order 680246C1, Serial Range: cut-length)

5шт.

24

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

25

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened, 3/8 inch

1шт.

26

25521R1

NUT,5/16"-24, G8

- hex, 5/16 inch NF, Grade 8

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened, 5/16 inch

2шт.

29

689324C1

STUD,Stud, 5/16" - 24 - 5/16" - 18 x 2.30"

- manifold, 5/16-18 x 5/16-24

1шт.

30

86224H

SPACER,1/4" Pipe x 3/8"

1шт.

31

25542R1

WASHER,.281" x 5/8" x .098", HDN

- hardened, 1/4 inch

4шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

33

30192R1

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, M6 x 16 mm, Grade 10.9

2шт.

34

689568C1

GASKET

- adapter window

1шт.

35

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- hardened, 3/8 inch

3шт.

36

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

37

25552R1

WASHER,.344" x 1" x .098", HDN

- flat, 11/32 x 1 x 3/32 inch

1шт.

38

25232R1

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- hex, 5/16 NC x 2 inch

1шт.

39

25235R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

2шт.

40

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 1-1/32 x 1-1/16 x 1/16 inch

2шт.
