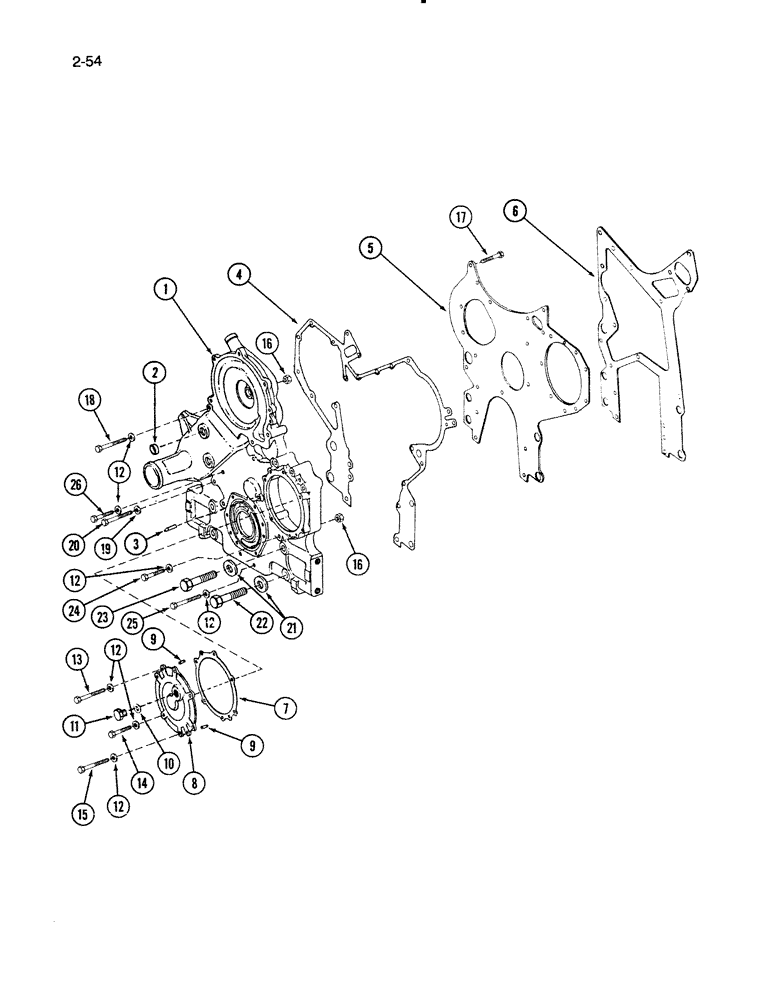

Запчасти Case IH 1670 (2-54) - ENGINE FRONT COVER, DTI466C ENGINE (01) - ENGINE

1806031C91

COVER

ASSEMBLY - engine front, Includes: Ref. 1 - 3 and plug

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - engine front

1шт.

2

23624R1

PLUG

- cup, 1 inch

3шт.

3

367572R1

INDICATOR

POINTER - timing

1шт.

444705

PLUG,Hex Soc, 1/2"-14, Brass

- pipe, 1/2-14 thread

2шт.

4

675813C1

GASKET

- front cover

1шт.

5

675811C1

PLATE

- front

1шт.

6

675812C1

GASKET

- front plate

1шт.

7

675816C1

GASKET

- injection pump access cover

1шт.

8

675814C91

COVER

ASSEMBLY - injection pump access, Includes: Ref. 9

1шт.

9

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

10

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - plug

1шт.

11

445097

PLUG

- hex, 7/8-18 inch

1шт.

12

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 11/32 x 11/16 x 3/32 inch

23шт.

13

26057R1

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 8

- hex, 5/16 NC x 3-1/2 inch, Grade 8

1шт.

14

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, Grade 8

2шт.

15

26043R1

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, Grade 8

3шт.

16

25520R1

NUT,5/16"-18, G8

- hex, 5/16 inch NC, Grade 8

4шт.

17

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex lock, 5/16 NC x 3/4 inch

4шт.

18

25678R1

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 8

- hex, 5/16 NC x 3-1/4 inch, Grade 8

3шт.

19

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 3/32 inch

1шт.

20

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

21

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- flat hardened, 5/8 inch

4шт.

22

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

23

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

2шт.

24

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, Grade 8

2шт.

25

25234R1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

- hex, 5/16 NC x 2-1/4 inch, Grade 8

7шт.

26

25654R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

- hex, 5/16 NC x 1-1/2 inch, Grade 8

2шт.
