Запчасти Case IH 1670 (2-52) - CYLINDER HEAD GASKET KIT, DTI466C ENGINE (01) - ENGINE

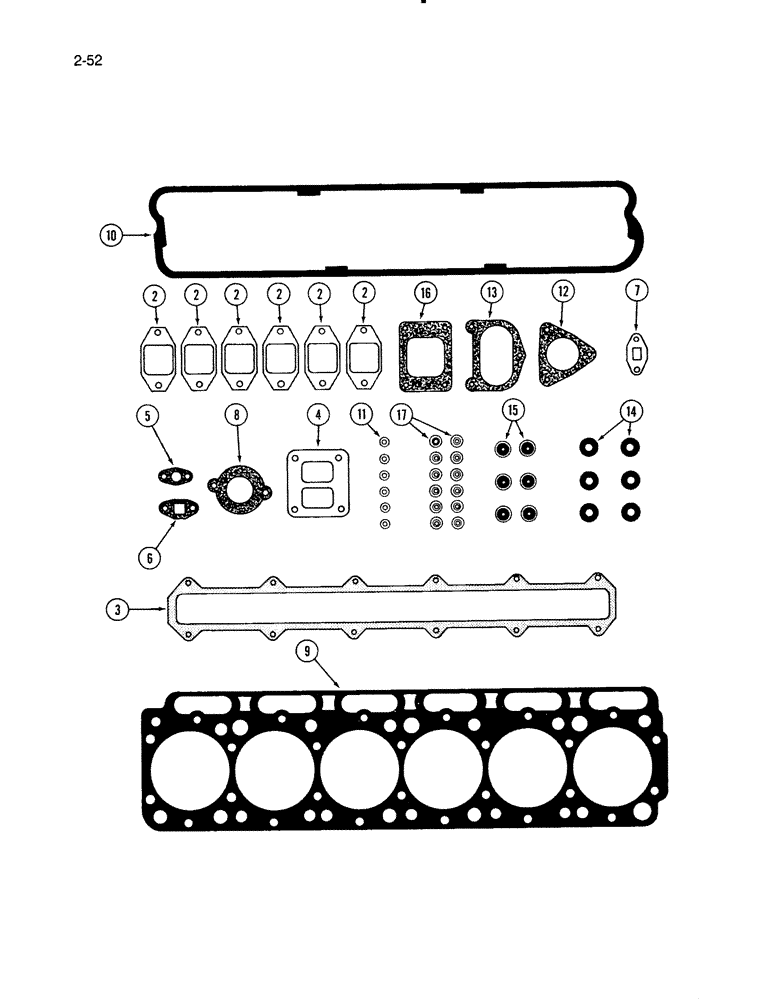

Схема запчастей Case IH 1670 - (2-52) - CYLINDER HEAD GASKET KIT, DTI466C ENGINE (01) - ENGINE
17
16
2
6
12
8
4
5
2
7
13
14
10
2
2
2
9
2
3
15
11

Артикул

Название

Примечание

Количество

1808973C92

GASKET

GASKET KIT - cylinder head, Includes: Ref. 2 - 17

1шт.

2

688928C1

MANIFOLD GASKET

GASKET - exhaust manifold

6шт.

3

682199C1

MANIFOLD GASKET

GASKET - intake manifold

1шт.

4

670073C1

GASKET

GASKET - turbocharger

1шт.

5

253660R1

GASKET

GASKET - turbocharger oil inlet tube

1шт.

6

670079C1

GASKET

GASKET - oil drain tube

1шт.

7

687903C1

GASKET

GASKET - oil drain tube

1шт.

8

675384C1

GASKET

GASKET - thermostat housing

1шт.

9

1806226C2

CYLINDER HEAD GASKET

GASKET - cylinder head

1шт.

10

675109C2

GASKET

GASKET - valve cover

1шт.

11

675477C1

GASKET

GASKET - injector nozzle

6шт.

12

673973C4

GASKET

GASKET - valve cover breather

1шт.

13

686181C1

GASKET

GASKET - intercooler air inlet elbow

1шт.

14

682810C1

RING

GROMMET - injection dust seal

6шт.

15

677692C1

GROMMET

GROMMET - valve cover

6шт.

16

673341C1

MANIFOLD GASKET

GASKET - intake manifold elbow

1шт.

17

681234C1

BUSHING

SHIELD - oil rotator

12шт.

1803376C92

ENGINE ASSEMBLY

ENGINE ASSY SERVICE ENGINE ASSEMBLY - replacement DTI466C (Consists of all engine parts except the following: alternator-generator fan blades and belt, muffler, and exhaust pipe

1шт.

687203C95

SKELETON ENGINE

BLOCK ASSEMBLY - short, new DTI466C engine, replacement service

1шт.

749856C92

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured, For N.A. Only

1шт.

735262C92

REMAN-SHORT ENGINE

Remanufactured Engine (Exchange)

1шт.

1928065C2

CORE-ENGINE

Return Part Number

1шт.

749856C92

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK ASSEMBLY - engine, short (Remanufactured, replacement service North America Only), replacement service engine

1шт.

Выбрано товаров: 23
