Запчасти Case IH 1670 (2-50) - CYLINDER BLOCK GASKET KIT, DTI466C ENGINE (01) - ENGINE

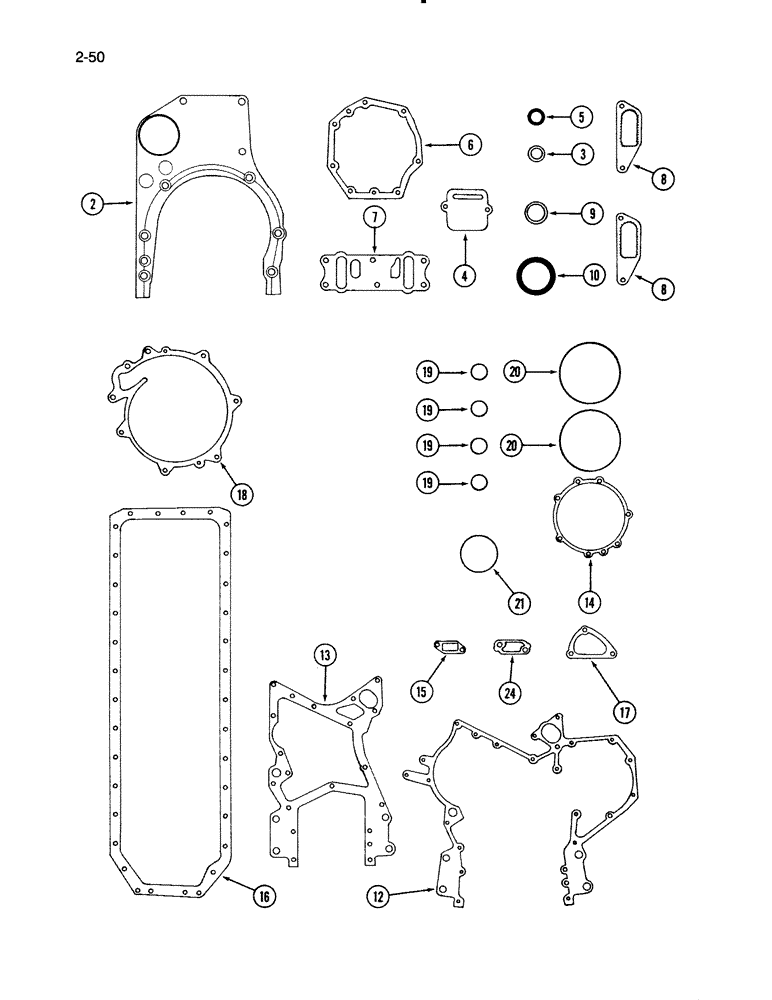

Схема запчастей Case IH 1670 - (2-50) - CYLINDER BLOCK GASKET KIT, DTI466C ENGINE (01) - ENGINE
19
16
19
13
12
19
14
3
19
20
10
9
4
6
15
8
2
17
18
7
8
20
21
24
5

Артикул

Название

Примечание

Количество

674399C92

GASKET KIT

- cylinder block, Includes: Ref. 2 - 24

1шт.

2

682945C1

GASKET

- flywheel housing

1шт.

3

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug

1шт.

4

677711C1

BAFFLE

- breather

1шт.

5

673185C1

O-RING

- breather pipe

1шт.

6

675609C1

GASKET

- injection pump mounting adapter

1шт.

7

675398C1

GASKET

- lubrication oil filter base

1шт.

8

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

9

261624R1

GASKET

- regulator valve cap

1шт.

10

682444C1

RING

- camshaft seal

1шт.

680084C93

KIT

GASKET KIT - cylinder block front cover, Includes: Ref. 12 - 24

1шт.

12

675813C1

GASKET

- crankshaft front cover

1шт.

12

677082C2

GASKET

- front cover (Not used this application)

1шт.

13

675812C1

GASKET

- front plate

1шт.

13

683791C1

GASKET

- front plate (Not used this application)

1шт.

14

675816C1

GASKET

- injection pump access plate

1шт.

15

671821C1

GASKET

- lubrication oil pump inlet

1шт.

16

671825C1

OIL PAN GASKET SET

- oil pan (Not used this application)

1шт.

16

671827C1

OIL PAN GASKET SET

- oil pan

1шт.

17

673396C1

GASKET

- water inlet elbow

1шт.

18

675808C1

GASKET

- water pump housing

1шт.

18

676988C1

GASKET

- water pump bearing housing (Not used this application)

1шт.

19

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- oil cooler tube

4шт.

20

675860C1

RING

O-RING - oil pump housing

2шт.

21

674754C1

GASKET

GASKET - injection pump mounting

1шт.

24

1802867C1

GASKET

- oil pump inlet tube

1шт.
