(2-48) - ENGINE RAILS AND SUPPORTS, DTI466C ENGINE

Запчасти Case IH 1670 (2-48) - ENGINE RAILS AND SUPPORTS, DTI466C ENGINE (01) - ENGINE

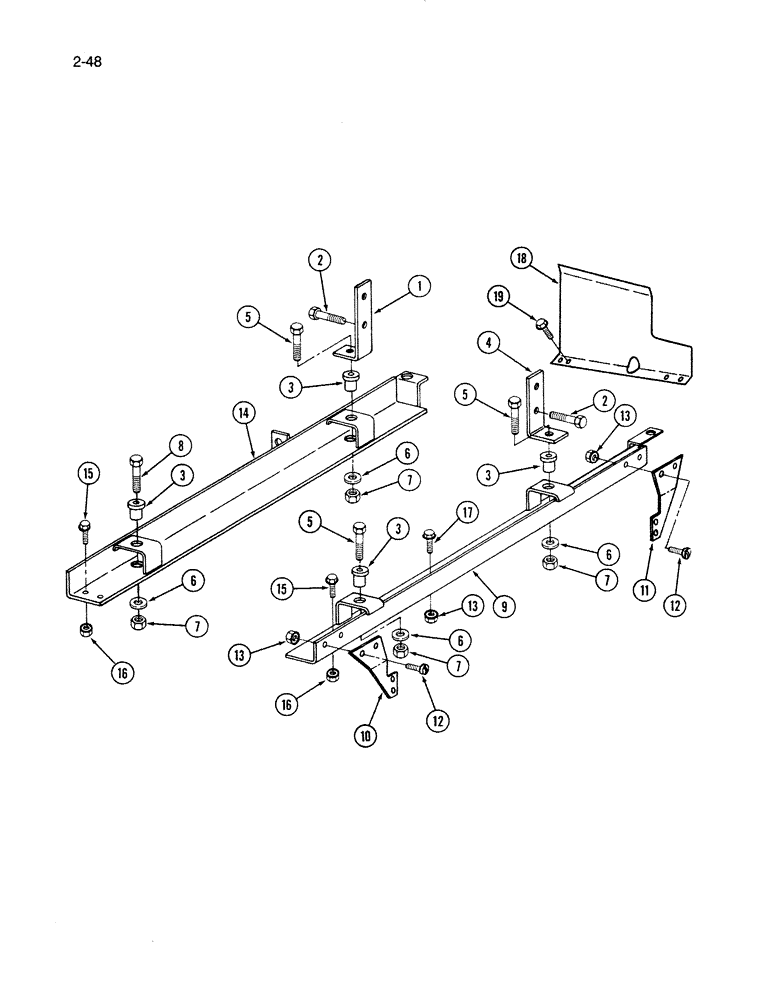

Схема запчастей Case IH 1670 - (2-48) - ENGINE RAILS AND SUPPORTS, DTI466C ENGINE (01) - ENGINE
13
6
9
3
15
16
2
7
13
8
7
4
2
7
3
3
1
10
18
5
6
5
17
5
6
12
7
14
3
12
16
19
15
6
11
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

191365C1

SUPPORT

- engine front, left

1шт.

2

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

2шт.

2

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine, front and rear

4шт.

4

191364C1

SUPPORT

- engine, front, right

1шт.

5

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

3шт.

6

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

9

182957C3

RAIL ASSY.

RAIL ASSEMBLY - engine, right

1шт.

10

182912C3

SUPPORT

- engine rail, left

1шт.

11

1304707C2

SUPPORT

- engine rail, right

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch

17шт.

14

182951C2

RAIL ASSY.

RAIL ASSEMBLY - engine, left

1шт.

15

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW - hex flange, 1/2 NC x 1-1/4 inch

8шт.

16

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

8шт.

17

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

13шт.

18

1327681C1

SUPPORT

- air deflector

1шт.

19

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.
