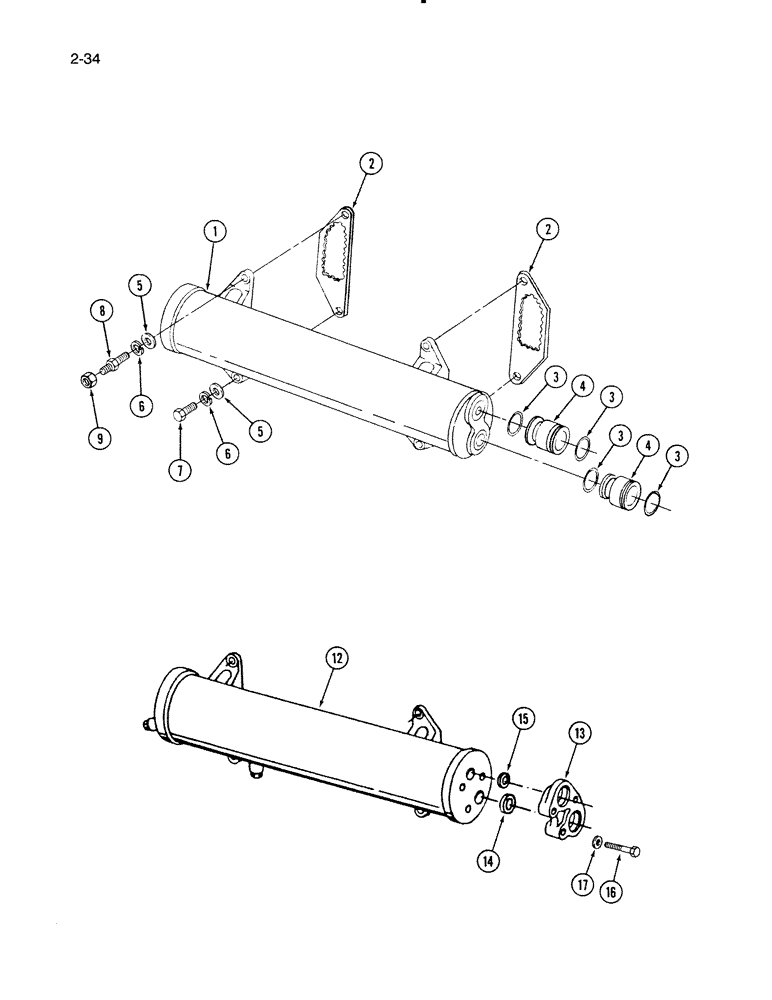

Запчасти Case IH 1670 (2-34) - OIL COOLER, DTI466C ENGINE (01) - ENGINE

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING - 1-1/4 x 1-1/2 x 1/8 inch

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler to front cover

2шт.

Optional Designs, Seamless 1-1/2" O D With Seam 1-1/4" O D either is O.K. per Navistar

1шт.

5

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASHER - flat, 13/32 x 13/16 x 5/64 inch

4шт.

6

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

7

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

3шт.

8

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

STUD - rear upper, 3/8-16 x 3/8-24

1шт.

9

25523R1

NUT,3/8"-24, G8

NUT - hex, 3/8 inch NF, Grade 8

1шт.

1810569C91

COOLER ASSY.

COOLER ASSEMBLY - oil, Includes: Ref. 12 - 17

1шт.

12

1810171C1

COOLER, OIL

COOLER ASSEMBLY - oil

1шт.

12

735260C92

REMAN-OIL COOLER

1670 w/Navistar Engine

1шт.

12

1938223C1

CORE-OIL COOLER

Return number

1шт.

13

1810568C1

PLATE

SPACER - passage, cooler

1шт.

14

F21003

O-RING,1.237" ID x 1.443" OD

SEAL - 1-1/4 ID x 3/32 inch wide

1шт.

15

21254R1

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - ring, 1/2 x 11/16 x 3/32 inch

1шт.

16

27439R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

BOLT - hex, 5/16 NC x 1-3/4 inch

3шт.

17

27326R1

WASHER,.344" x 11/16" x .089", HDN

WASHER - flat, 1-1/32 x 1-1/16 x 1/16 inch

3шт.
