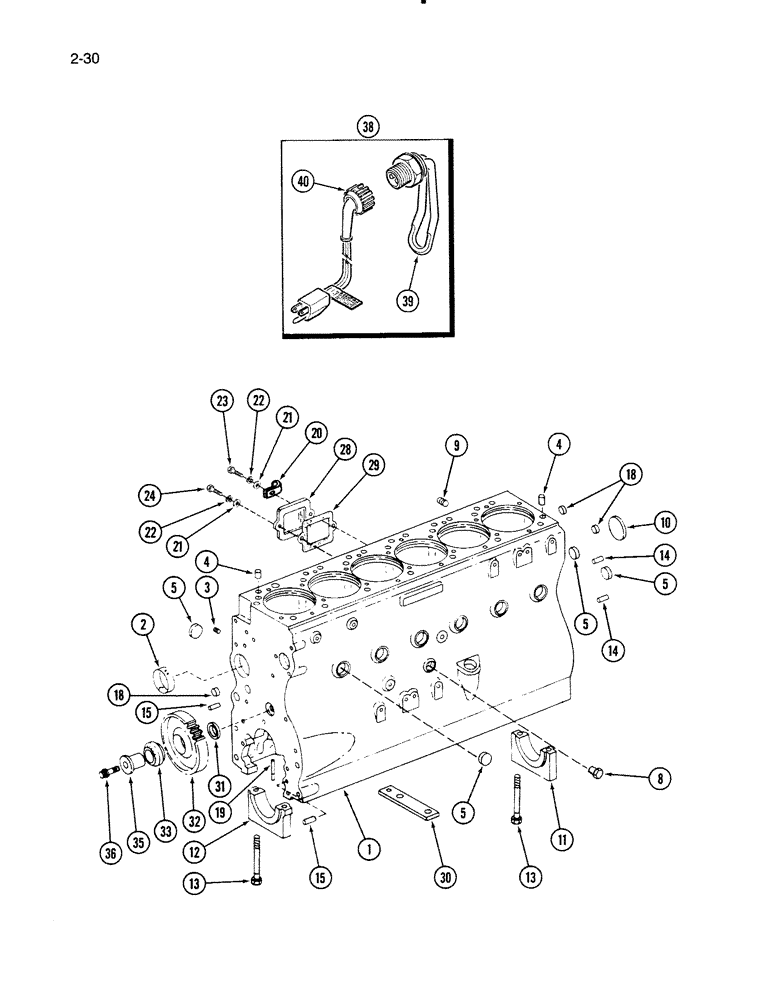

Запчасти Case IH 1670 (2-30) - CYLINDER BLOCK, DTI466C ENGINE (01) - ENGINE

1

735289C91

CRANKCASE

BLOCK ASSEMBLY - cylinder, remanufactured

1шт.

1

1802336C93

CRANKCASE

BLOCK ASSEMBLY - engine, new, Includes: Ref. 2 - 19

1шт.

1811918C91

CRANKCASE

BLOCK - engine

1шт.

106835A2R

REMAN-BASIC ENGINE

Remanufactured Basic Engine

1шт.

106835A2C

CORE-BASIC ENGINE

Return Number

1шт.

680117C1

SET

BEARING KIT - camshaft, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - camshaft

4шт.

3

50410DA

PLUG

- hex socket, 1/8-27 inch thread

5шт.

4

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- locating

2шт.

5

23623R1

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch

9шт.

8

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex pipe, 3/8-18 inch

1шт.

9

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket pipe, 3/4-14 inch thread

3шт.

10

682444C1

RING

PLUG - rear, camshaft

1шт.

11

680243C1

HOUSING

CAP - bearing, rear main

1шт.

12

680241C1

CAP

- bearing, front and intermediate

6шт.

13

1802582C1

BOLT

- bearing, main

14шт.

14

680484C1

DOWEL

PIN - dowel, 1/2 x 1-1/8 inch

2шт.

15

680483C1

PIN

- dowel, 3/8 x 7/8 inch

2шт.

18

327412R1

PLUG,Cup, 13/16"

- cup, 13/16 inch

3шт.

19

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - jet, piston coolant

12шт.

20

1806481C1

CLAMP

- tube, oil

1шт.

21

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 5/16 inch

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

25751R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch

1шт.

24

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch

1шт.

28

690166C1

COVER

- opening, breather

1шт.

29

690231C2

GASKET

- cover, breather

1шт.

30

673761C1

BRACKET

- support, suction pipe

1шт.

31

675767C1

SPACER

- idler gear

1шт.

32

675764C1

GEAR

- idler, 77 tooth

1шт.

33

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- gear, idler

1шт.

35

675765C1

SHAFT

- stub, idler gear

1шт.

36

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

BOLT - idler gear shaft

1шт.

38

71151C91

HEATER

KIT - coolant heater, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

40

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater

1шт.
