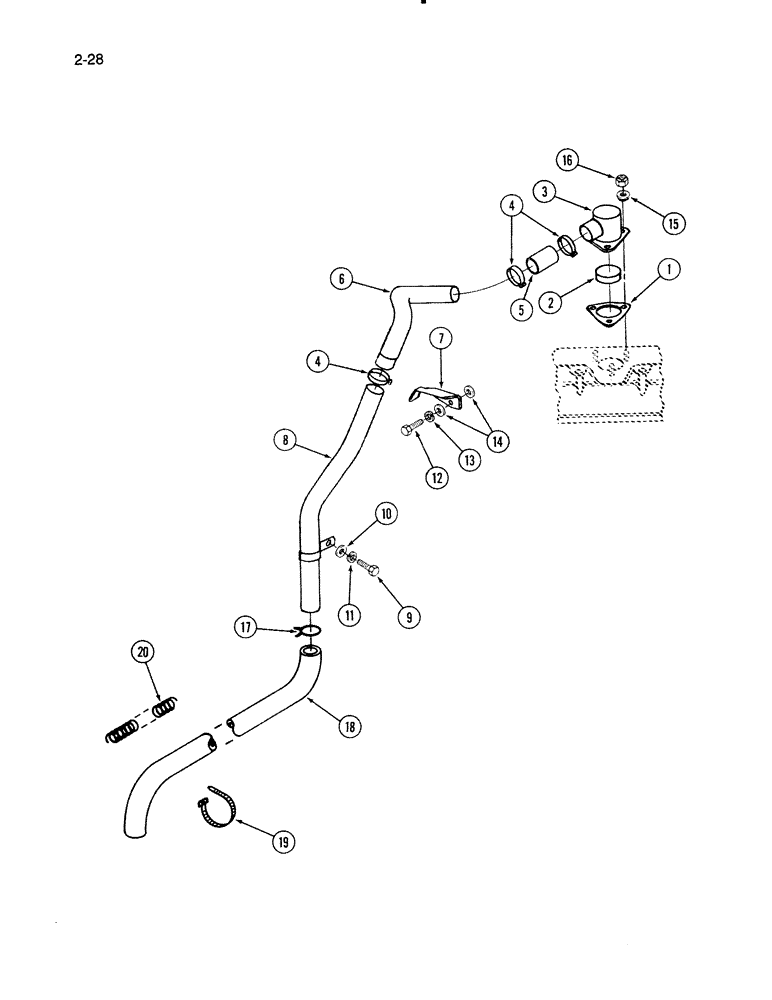

Запчасти Case IH 1670 (2-28) - ENGINE BREATHER HOSE, DTI466C ENGINE (01) - ENGINE

1

673973C4

GASKET

- breather housing

1шт.

2

690233C1

FILTER, ELEMENT

ELEMENT - breather

1шт.

3

690354C1

BODY

HOUSING - breather

1шт.

4

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

3шт.

5

690460C1

HOSE

Breather Tube

1шт.

6

690457C1

HOSE

TUBE - upper breather

1шт.

7

690458C1

SUPPORT

- breather tube

1шт.

8

690594C1

BREATHER,18.31, 1.1" Length

TUBE - lower breather

1шт.

9

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

1шт.

10

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat hardened, 5/16 inch

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat hardened, 3/8 inch

2шт.

15

691644C1

RUBBER WASHER

- rubber bonded, 5/16 inch

3шт.

16

25077R1

LOCK NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

3шт.

17

610320C1

CLAMP

- spring wire hose, No. 30 Type E

1шт.

18

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

- crankcase breather, 46 inch

1шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

2шт.

20

1301436C1

SPRING

- breather hose internal support

1шт.
