Запчасти Case IH 1670 (2-22) - TURBOCHARGER, DTI466C ENGINE (01) - ENGINE

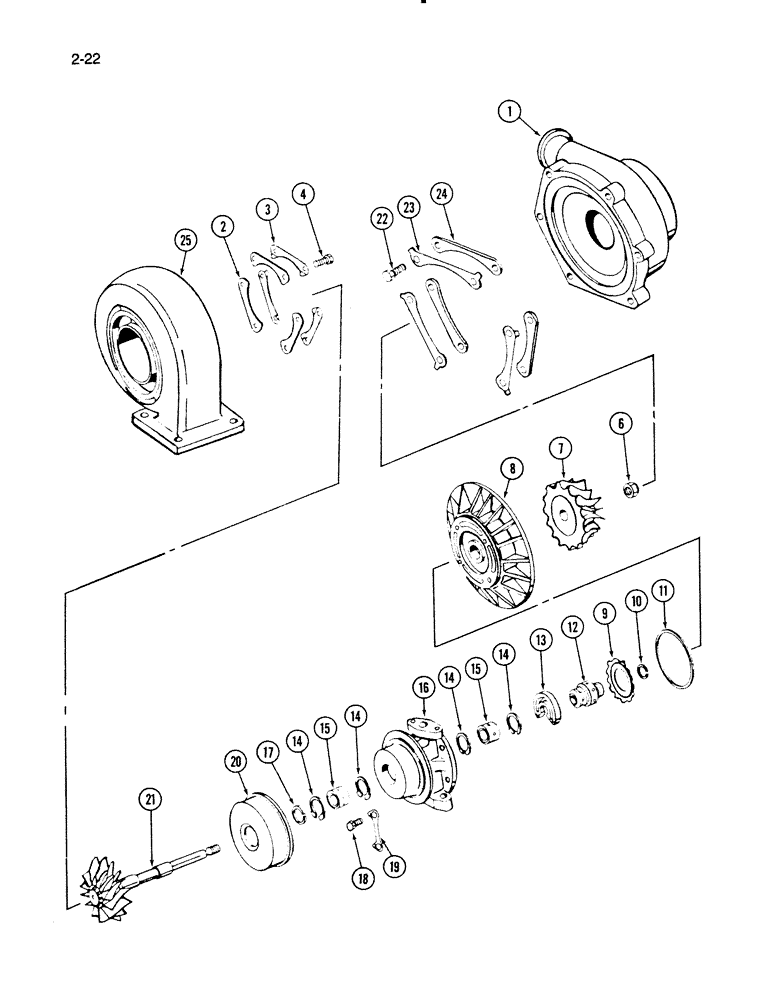

Схема запчастей Case IH 1670 - (2-22) - TURBOCHARGER, DTI466C ENGINE (01) - ENGINE
23
7
6
8
15
15
21
13
19
14
25
3
11
1
18
14
20
10
17
24
2
16
12
9
14
4
14
22

Артикул

Название

Примечание

Количество

735270C91

REMAN-TURBOCHARGER

1670 w/Navistar Engine

1шт.

1928011C1

CORE-TURBOCHARGER

Return Number

1шт.

1

684366C1

HOUSING

HOUSING - compressor

1шт.

2

630610C1

CLAMP

CLAMP - housing plate

3шт.

3

630609C1

PLATE

PLATE - housing lock (Not used with 1809618C1 bolt)

3шт.

4

1809618C1

BOLT

BOLT - clamp, plate

6шт.

684357C91

CORE

CENTER HOUSING AND ROTATE ASSEMBLY - remanufactured (For North America Only)

1шт.

1806152C91

HOUSING

CENTER HOUSING AND ROTATE ASSEMBLY - new, Includes: Ref. 6 - 25

1шт.

6

615741C2

NUT

NUT - impeller lock

1шт.

7

684364C1

IMPELLER

WHEEL - impeller

1шт.

8

630614C91

PLATE

PLATE - impeller back, Includes: Ref. 9

1шт.

9

615747C1

SPRING WASHER

SPRING - collar

1шт.

10

615746C1

RING

RING - piston

1шт.

11

343847R1

SEALING RING

RING - seal

1шт.

12

615745C2

COLLAR

COLLAR - thrust

1шт.

13

627773C1

THRUST BEARING

BEARING - thrust

1шт.

14

627774C1

RING

RING - bearing retainer

4шт.

15

687965C1

BRONZE BUSHING,0.4014" ID x 0.6188" OD x 0.41"

BEARING - housing journal

2шт.

16

684360C92

KIT

HOUSING ASSEMBLY - center, Includes: Ref. 17

1шт.

17

684359C2

OIL SEAL

RING - piston

1шт.

18

25480R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 8

BOLT - hex, 1/4 NC x 5/8 inch (Order 1809617C1 bolt)

4шт.

18

1809617C1

BOLT,Hex, 1/4" x 5/8", Gr 8

BOLT - lock plate

4шт.

19

625675C1

PLATE, LOCKING

PLATE - backplate lock (Not used with 1809617C1 bolt)

2шт.

20

627771C1

SHROUD

SHROUD - turbine wheel

1шт.

21

1806082C1

TURBINE

WHEEL AND SHAFT - turbine

1шт.

22

684246C1

BOLT

BOLT - housing lock plate

6шт.

23

615739C1

PLATE, LOCKING

PLATE - housing lock

3шт.

24

684245C1

CLAMP

CLAMP - housing plate

3шт.

25

630675C1

HOUSING

HOUSING - turbine

1шт.

Выбрано товаров: 29
