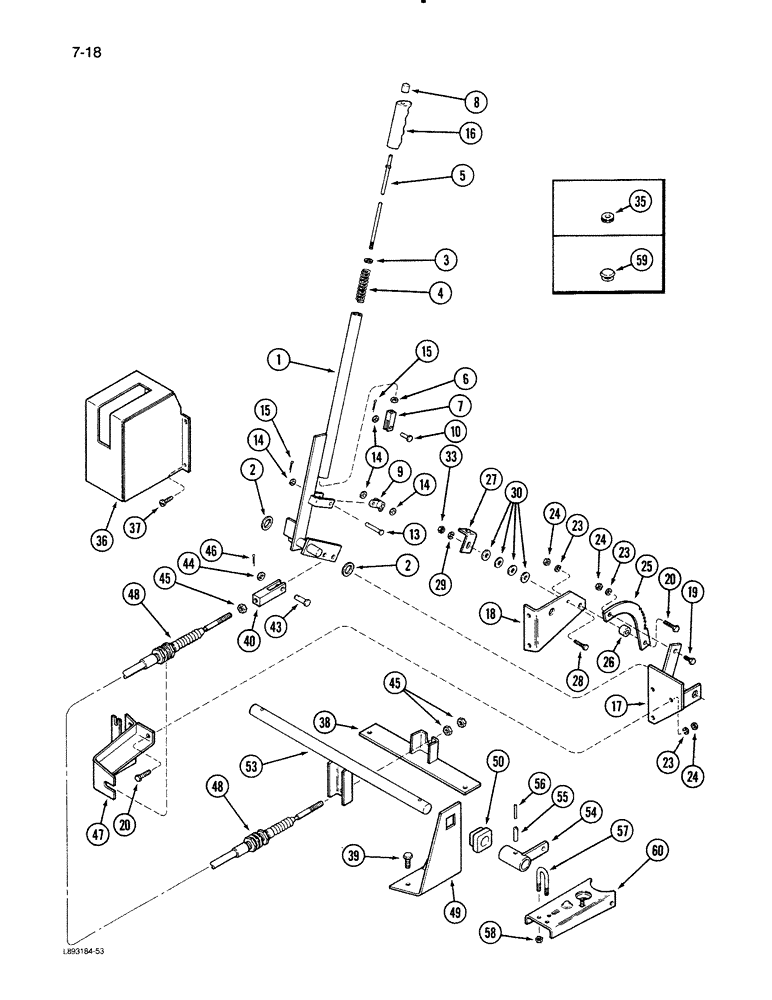

Запчасти Case IH 1670 (7-18) - HAND BRAKE (5.1) - BRAKES

1

1311003C1

LEVER

- hand brake

1шт.

2

3176135R1

WASHER

- flat, 21 x 32 x 1.5 mm

1шт.

3

794236R2

WASHER

- stop

1шт.

4

51200184

SPRING

- tension

1шт.

5

1311011C1

ROD

- brake lever

1шт.

6

933472R1

JAM NUT

- hex jam, 6 mm

1шт.

7

3014148R2

ADJUSTABLE CLEVIS

CLEVIS - lever

1шт.

8

790571R1

BUTTON

- push

1шт.

9

1311012C1

PAWL

- brake

1шт.

10

932880R1

PIN

- head, 6 x 18 mm

1шт.

13

932421R1

PIN

- head, 6 x 40 mm

1шт.

14

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

15

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 5/8 inch

2шт.

16

790933R2

HANDLE

- brake

1шт.

17

1311015C1

SUPPORT

- handle

1шт.

18

1311019C1

SUPPORT

- axle

1шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

24

425-105

NUT,5/16"-18, G5

- hex lock, 5/16 inch NC

5шт.

25

1311020C1

SECTOR

- brake

1шт.

26

1311021C1

SPACER

- sector

1шт.

27

1311022C2

SUPPORT

- switch

1шт.

28

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

24497R1

WASHER

- flat, 11/32 x 1-1/4 x 7/64 inch

4шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

35

52118D

GROMMET

- rubber

1шт.

36

1311023C1

COVER

- lever linkage

1шт.

37

24256R1

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW, SELF TAPPING, Slotted Pan Hd, 1/4" x 5/8"

4шт.

38

1311084C1

SUPPORT

- cable upper

1шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

40

3014150R1

CLEVIS

- 10 mm

1шт.

43

932440R1

PIN

- head, 10 x 28 mm

1шт.

44

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

45

933449R1

JAM NUT

- hex jam, 10 mm

3шт.

46

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

47

1304032C3

SUPPORT

- cable

1шт.

48

1311091C1

CABLE

- brake

1шт.

49

1311078C1

SUPPORT

- left

1шт.

49

1311079C1

SUPPORT

- right (Shown)

1шт.

50

3173452R1

FLANGED BEARING

- pivot

2шт.

53

1311081C1

SHAFT

- lower drive

1шт.

54

1311075C1

HUB

- brake drive

2шт.

55

Q2932

LOCK PIN,M8 x 36, Slotted

PIN, LOCK, M8 x 36, Slotted

2шт.

56

Q5164

ROLL PIN,5mm OD x 36mm L, Slotted

PIN, LOCK, , M5 x 36, Slotted

2шт.

57

1311346C1

BOLT

- U type

2шт.

58

131-1214

LOCK NUT,1/4"-20, GC

NUT - hex lock, 6 mm - 1.0

4шт.

59

353-412

PLUG,Dome, 1.093" hole, Nylon

- console (For hole in left console top)

1шт.

60

196496C3

LEVER

- brake

2шт.
