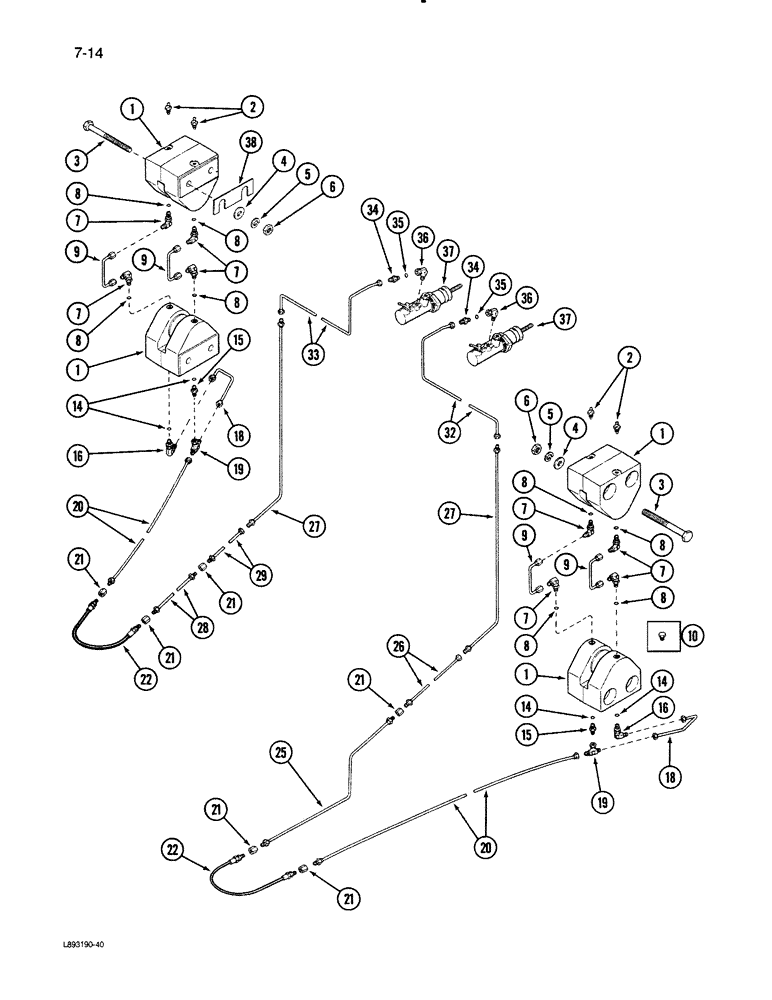

Запчасти Case IH 1670 (7-14) - MAIN FRONT DISC BRAKES (5.1) - BRAKES

1

1304295C92

BRAKE

CALIPER - front disc brake, Includes seal and kit

4шт.

1304286C2

SEAL

- caliper brake (Not Shown)

2шт.

1304298C3

BRAKE

KIT - caliper brake

1шт.

2

1304939C1

TUBE

VALVE - bleeder

4шт.

3

26715R1

BOLT (SPREADER),Hex, 7/8"-9 x 6 1/2", G8

BOLT - hex, 7/8 NC x 6-1/2 inch, Grade 8

8шт.

4

1304666C1

WASHER

- brake caliper

8шт.

5

131168

LOCK WASHER,7/8"

7/8"

8шт.

6

329-1014

NUT,7/8"-9, G8

8шт.

7

9410973

ELBOW,90 Degree, 3/8"-24, 37 Degree x 3/8"-24, O-Ring

- 90 degree adjustable

8шт.

8

1304938C1

OIL SEAL

O-RING - sealing, 3/16 inch OD

8шт.

9

1317158C1

HYD TUBE,0.1875" OD, 95, 38 mm Length

TUBE - front brake, upper

4шт.

10

9410355

PLUG,Hex Hd, 3/8"-24 ORB

- hex, 3/16 straight thread

16шт.

14

895644C1

O-RING,0.351" ID x 0.495" OD x 0.072"

O-RING - sealing

4шт.

15

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - swivel, 7/16-20 inch thread

2шт.

16

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 thread

2шт.

18

1304807C1

TUBE ASSY.,0.25" OD, 4.7, 2.8" Length

TUBE - brake, lower front

2шт.

19

9410304

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br

- swivel, 1/4 inch

2шт.

20

1304810C1

HYD TUBE

TUBE - brake pivot arm

2шт.

21

442336

SUPPORT TUBE

UNION - tube retaining

6шт.

22

1304296C2

HOSE

- pivot, front brake

2шт.

25

1304919C1

TUBE ASSY.

TUBE - front brake, right

1шт.

26

1321514C1

HYD TUBE,0.25" OD, 435, 70 mm Length

TUBE - brake, lower right

1шт.

27

1321511C2

HYD TUBE

TUBE - brake, middle

2шт.

28

1304811C1

TUBE ASSY.

TUBE - front brake, left

1шт.

29

1321513C1

HYD TUBE,0.25" OD, 450, 435 mm Length

TUBE - brake, lower left

1шт.

32

1321476C2

HYD TUBE

TUBE - brake, upper right

1шт.

33

1321475C2

HYD TUBE

TUBE - brake, upper left

1шт.

34

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - swivel, 7/16-20 inch thread

2шт.

35

28616R1

O-RING,4-1, Cl 3, .351" ID x .072" Thk

2шт.

36

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree swivel, 7/16-20 flare

2шт.

37

REF

INSTRUCTION

CYLINDER - master brake (See Figure 7-16)

2шт.

38

1304289C1

SHIM

- caliper, 0.06 inch

1шт.

38

1304288C1

SHIM

- caliper, 0.12 inch

1шт.
