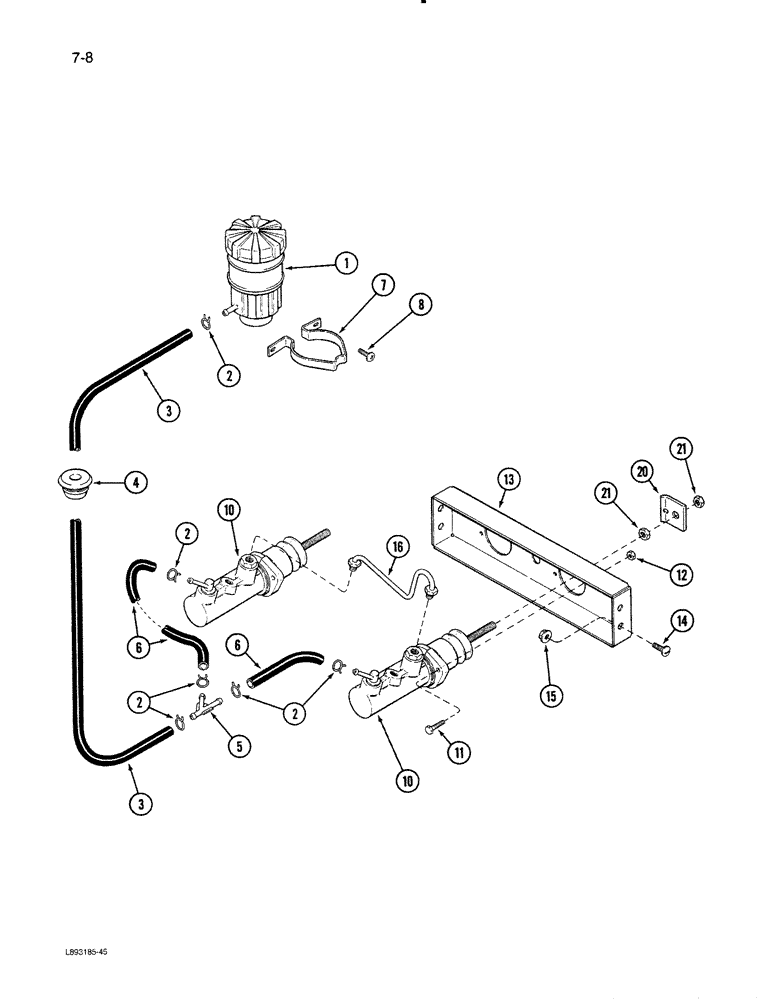

Запчасти Case IH 1670 (7-08) - MASTER BRAKE CYLINDERS RESERVOIR, CONNECTIONS AND MOUNTING (5.1) - BRAKES

1

1281890C2

RESERVOIR

- brake fluid

1шт.

cap no. is k964488.

1шт.

2

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - wire hose, No. 8 type E

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

- Return 6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- brake hose

1шт.

5

1285312C1

TEE

- Y Type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

- Return 6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

- brake fluid reservoir

1шт.

8

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - tapping pan head cross recess, No. 10 NC x 1/2 inch

2шт.

10

REF

INSTRUCTION

CYLINDER - master (See Figure 7-16)

2шт.

11

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

4шт.

12

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

13

1327561C2

SUPPORT

- master brake cylinder

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

4шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

16

1281885C1

PIPE

TUBE - equalizer

1шт.

20

1329858C1

SUPPORT

- brake light switch

2шт.

21

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

- special hex

4шт.
