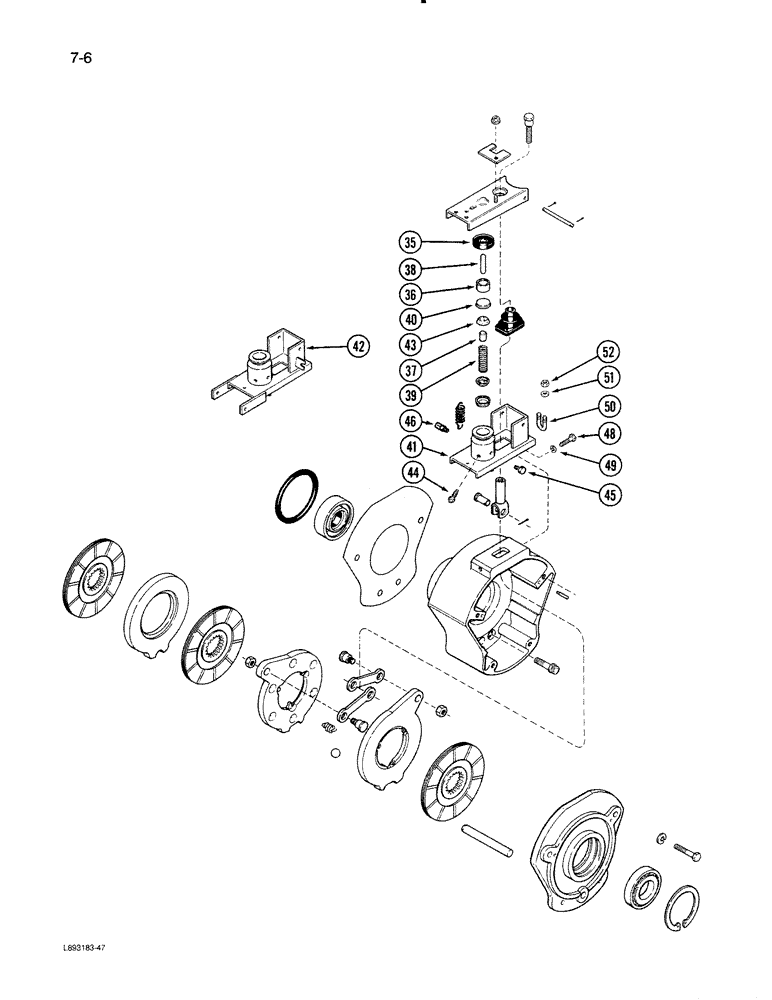

Запчасти Case IH 1670 (7-06) - MASTER BRAKES, (CONT) (5.1) - BRAKES

1329740C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - brake cylinder, right, Includes: Ref. 35 - 46

1шт.

1329739C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - brake cylinder, left, Includes: Ref. 35 - 46

1шт.

35

662620R1

COVER

BOOT - wheel cylinder

1шт.

Part of brake cylinder kit P/N 1288942C92

1шт.

36

662616R1

PISTON

- wheel cylinder

1шт.

Part of brake cylinder kit P/N 1288942C92

1шт.

37

1281779C1

LARGE PIN

PIN - brake piston spacer

1шт.

38

184325C2

PLUNGER

- wheel cylinder

1шт.

39

84940C1

SPRING

- wheel cylinder

1шт.

Part of brake cylinder kit P/N 1288942C92

1шт.

40

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

2шт.

Part of brake cylinder kit P/N 1288942C92

1шт.

41

NSS

NOT SOLD SEPARAT

SUPPORT - brake actuator, right (Order assembly)

1шт.

42

NSS

NOT SOLD SEPARAT

SUPPORT - brake actuator, left (Order assembly)

1шт.

43

85105C1

EXPANDER

- wheel cylinder cup

2шт.

44

660901R1

VALVE

- brake cylinder bleeder

2шт.

45

FOR444613

PLUG

- hex, 1/8 PT

1шт.

46

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 1/4 inch tube

1шт.

1288942C92

KIT

- brake cylinder, Includes: Ref. 35, 36, 39 and 40

1шт.

48

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

49

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

50

1327797C1

CLAMP

U-BOLT - 1/4 NC x 1-1/4 inch

2шт.

51

22256R1

WASHER

- flat, 9/32 x 1/2 x 1/16 inch

4шт.

52

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex, 1/4 inch prevailing torque lock NC

4шт.
