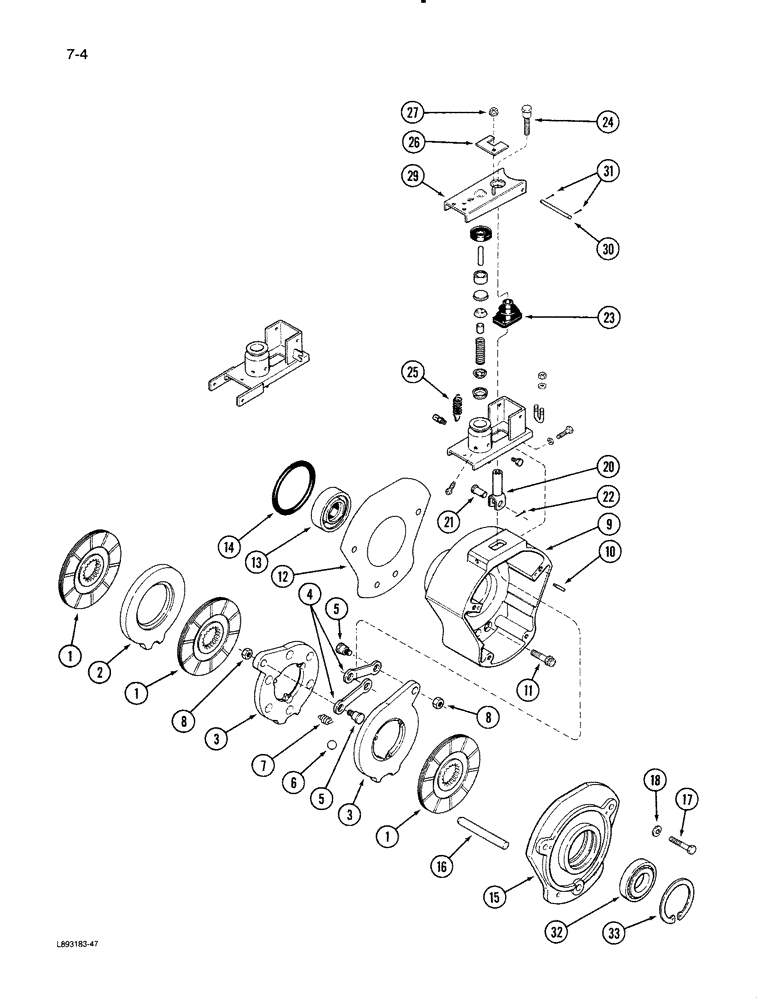

Запчасти Case IH 1670 (7-04) - MASTER BRAKES (5.1) - BRAKES

1

1981191C1

DISC

- middle

6шт.

2

184203C1

DISC

- intermediate

2шт.

184202C92

DISC

ASSEMBLY - actuating, Includes: Ref. 3 - 8

2шт.

3

NSS

NOT SOLD SEPARAT

DISC - actuating

2шт.

4

1276923C2

LINK

- actuating

2шт.

5

1276924C1

STUD

- disc

2шт.

6

211-221

BALL,7/8" Dia

5шт.

7

359859R1

SPRING

- extension

3шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, 1/2 inch NF

4шт.

9

188882C92

HOUSING ASSY.

HOUSING - brake, Includes: Ref. 10

2шт.

10

20020R1

DOWEL,5/16" x 1"

PIN - dowel, hardened

2шт.

11

26145R1

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT - 12 point flange, 5/8 x 1-3/4 inch

8шт.

12

401898R1

SHIM

- brake housing, 0.003 inch

1шт.

12

401899R1

SHIM

- brake housing, 0.005 inch

1шт.

12

401900R1

SHIM

- brake housing, 0.007 inch

1шт.

13

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

- oil

2шт.

14

22292R1

O-RING,4.725" ID x 5.275" OD x 0.275"

- brake housing, 4-3/4 x 5-1/4 inch

2шт.

15

1981196C1

COVER

- brake housing, Includes: Ref. 16

2шт.

This Brake Housing Cover is on 1680 Combines, see Bulletin NHE SB 090-90

1шт.

16

28333R1

DOWEL,7/8" x 6"

PIN - dowel, hardened

1шт.

17

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20

1321923C1

CLEVIS

YOKE - brake pull

2шт.

21

40545V

CLEVIS PIN,5/8" x 1 3/8"

PIN - clevis, 5/8 x 1-3/8 inch

2шт.

22

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

23

184321C1

COVER

BOOT - brake housing

2шт.

24

1321973C1

ROD

- brake pull

2шт.

25

312824R1

SPRING

- brake lever return

2шт.

26

184282C2

BAR

- brake adjustment

2шт.

27

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

2шт.

29

196496C3

LEVER

- brake

2шт.

136969C1

FASTENER

- brake lever

1шт.

30

1308992C1

PIN,9.53mm OD x 102mm L

- brake lever

2шт.

31

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

4шт.

32

574273R91

BEARING ASSY,2.1654" ID x 3.937" OD x 0.8268"

- housing cover

1шт.

33

184131C1

SNAP RING,#393, 4.234", Int

RING - bearing retaining

1шт.
