(7-02) - MASTER BRAKE CONTROLS

Запчасти Case IH 1670 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

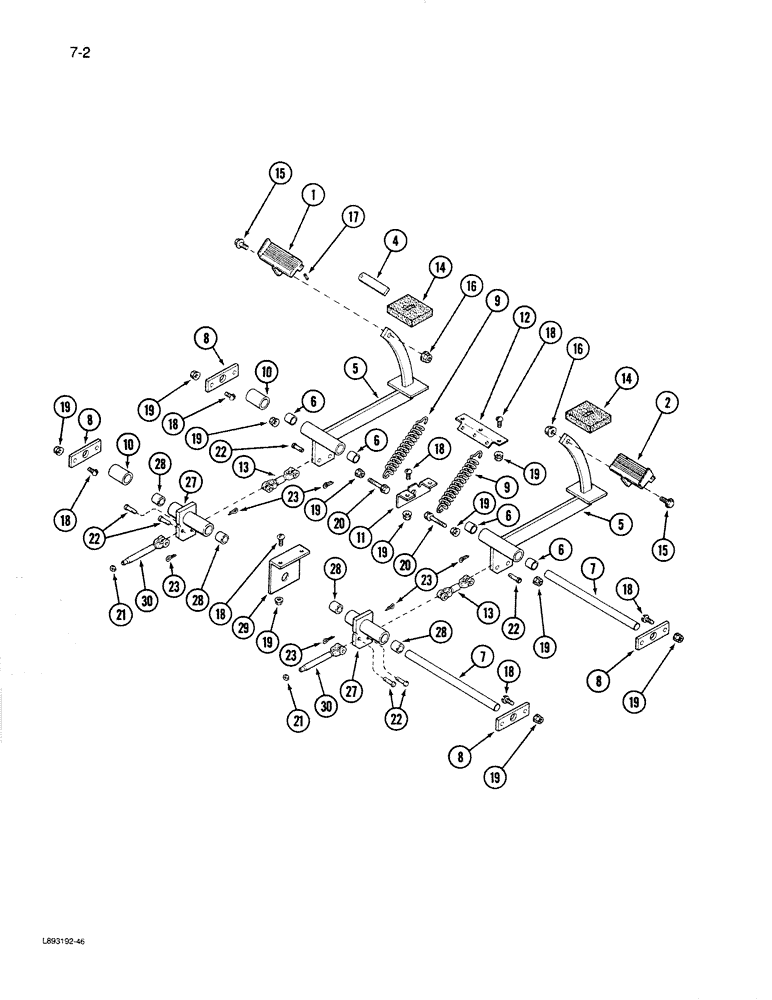

Схема запчастей Case IH 1670 - (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES
22
11
9
20
19
6
15
19
8
18
5
19
1
22
23
19
19
16
10
18
6
19
18
22
8
28
7
21
12
16
6
6
18
14
27
8
18
19
14
19
29
13
18
19
22
2
10
8
30
4
28
23
13
21
30
19
15
7
20
9
23
27
28
28
18
19
5
23
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1979734C1

PEDAL

- brake, left

1шт.

2

1979733C1

PEDAL

- brake, right

1шт.

4

614251R1

BAR

- brake locking

1шт.

5

1321925C91

SUPPORT

ASSEMBLY - brake pedal, Includes: Ref. 6

2шт.

6

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pedal support

2шт.

7

1280117C1

SHAFT

- support pivot

2шт.

8

1281794C1

PLATE

BAR - pivot shaft support

4шт.

9

398763R2

SPRING

- pedal return

2шт.

10

1280116C1

SPACER

- support pivot

2шт.

11

1321383C1

ANGLE

- pivot shaft support

1шт.

12

1327560C1

ANGLE

- spring hook

1шт.

13

1331281C1

LINK

- brake

2шт.

14

1321935C1

SEAL

- pedal

2шт.

15

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex head lock, 3/8 NC x 1-1/4 inch

2шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

17

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

11шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

15шт.

20

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

30168R1

NUT,M10, Cl 10

- hex, 10 mm, Grade 10

2шт.

22

141-54

CLEVIS PIN,3/8" x 1 1/16"

6шт.

23

132-321

COTTER PIN,3/32" x 1"

PIN - cotter, 3/32 x 3/4 inch

6шт.

27

1331287C1

SUPPORT

- brake pedal, Includes: Ref. 28

2шт.

28

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- support

2шт.

29

1331274C1

ANGLE

BRACKET - brake support

1шт.

30

1331282C1

ROD

LINK - brake

2шт.
