(9F-06) - STRAW SPREADER SHIELDS

Запчасти Case IH 1670 (9F-06) - STRAW SPREADER SHIELDS (19) - STRAW SPREADER & CHOPPER

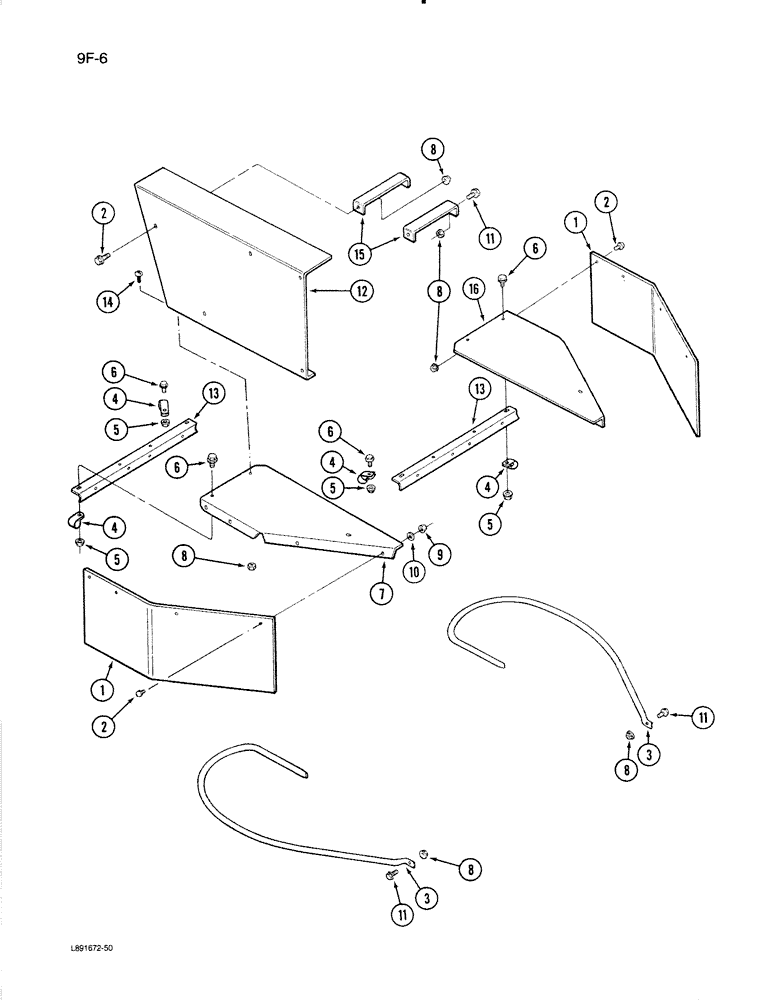

Схема запчастей Case IH 1670 - (9F-06) - STRAW SPREADER SHIELDS (19) - STRAW SPREADER & CHOPPER
4
6
3
14
7
4
11
11
8
15
11
9
8
6
10
7
13
6
6
5
9
4
2
2
13
8
5
5
16
2
5
1
6
12
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1308916C2

SHIELD

SIDE - straw spreader

2шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

3

1308912C2

PIPE

- shield

2шт.

4

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- retaining

4шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

8шт.

6

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

7

1308915C1

SHIELD

SUPPORT - straw spreader, right (shield)

1шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

8шт.

9

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

10

134238R1

WASHER

- 11/32 x 1 x 3/64 inch

8шт.

11

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex head flange lock, 5/16 NC x 3/4 inch

4шт.

12

1309121C3

SUPPORT

- drive shield

1шт.

13

1308913C1

SUPPORT

- straw spreader shield

2шт.

14

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

2шт.

15

1309354C1

SUPPORT

CHANNEL - drive shield

2шт.

16

1308914C1

SHIELD

SUPPORT - straw spreader, left (shield)

1шт.
